Introduction

The Redshift Physical Sun directional light is a physically accurate representation of sunlight based on the PRG Clear Sky model from the paper "A Fitted Radiance and Attenuation Model for Realistic Atmospheres" which improves upon the Hosek-Wilkie sky model. The Physical Sun is generally used in combination with the Physical Sky environment shader but it can also be used by itself.

For more information about the Redshift Physical Sun & Sky system, please refer to the Physical Sky topic.

The Physical Sun emits light at an extremely high intensity (to accurately model the intensity of sunlight that hits the Earth's surface) and should therefore always be used with a form of tone mapping like the default ACES 1.0 SDR view transform or legacy Photographic Exposure lens shader in order to achieve visually appealing results. Without tone-mapping, the scene will likely render completely white or far too bright.



Parameters



Intensity

On

Turns the sun light on or off.




Intensity Multiplier

Specifies an intensity multiplier for the sun light. This parameter can be used to scale the intensity of the sun up or down.

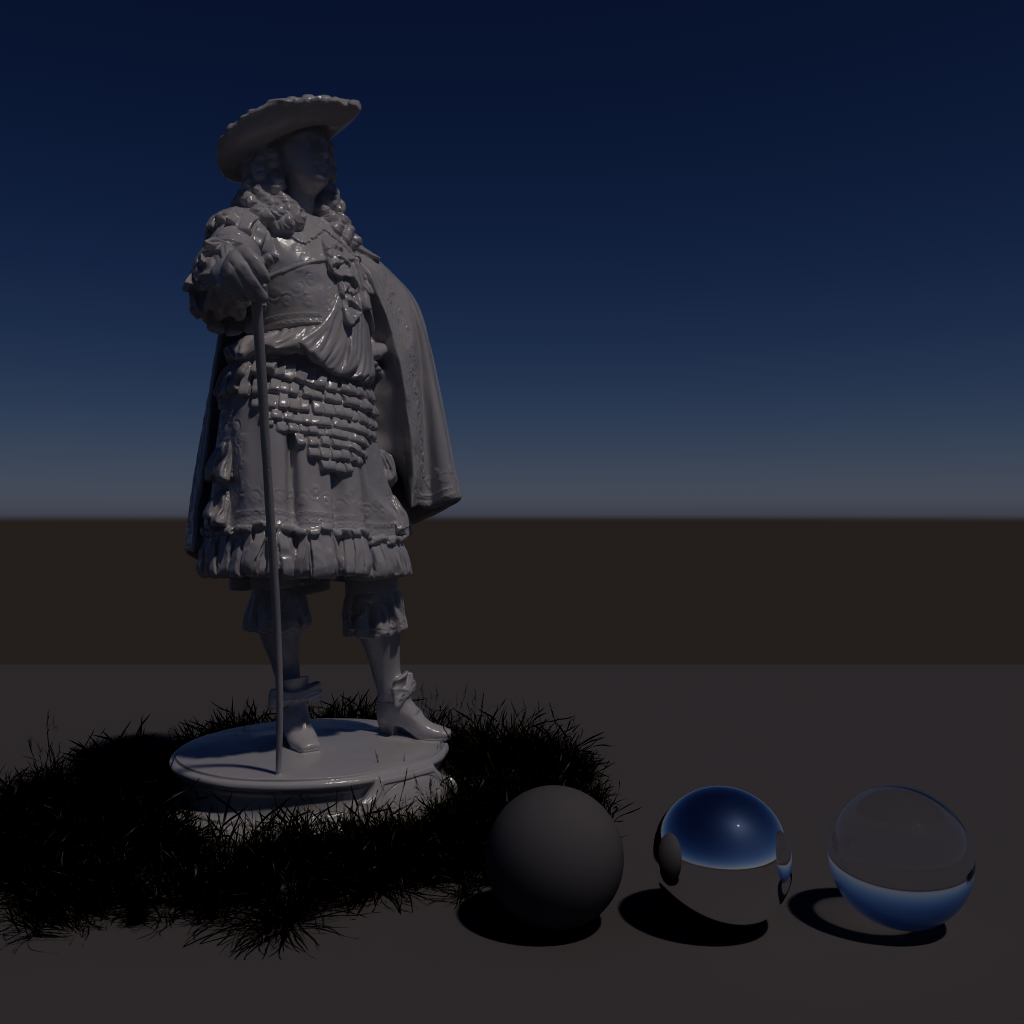

Intensity Multiplier: 0.1 1 (default) 3


Non-Physical Intensity

Use this parameter when you don't want to use a physically correct camera lens shader, but still want visually acceptable light intensities. Effectively this reduces the light intensity so that tone-mapping is not required to bring the sky isn't visually appealing ranges.

Use Non-Physical Intensity:
Disabled (default)		 Enabled



Sun Disk Scale

Use this value to scale the size of the sun disc. Smaller values result in harder the shadows while larger values result in softer shadows.

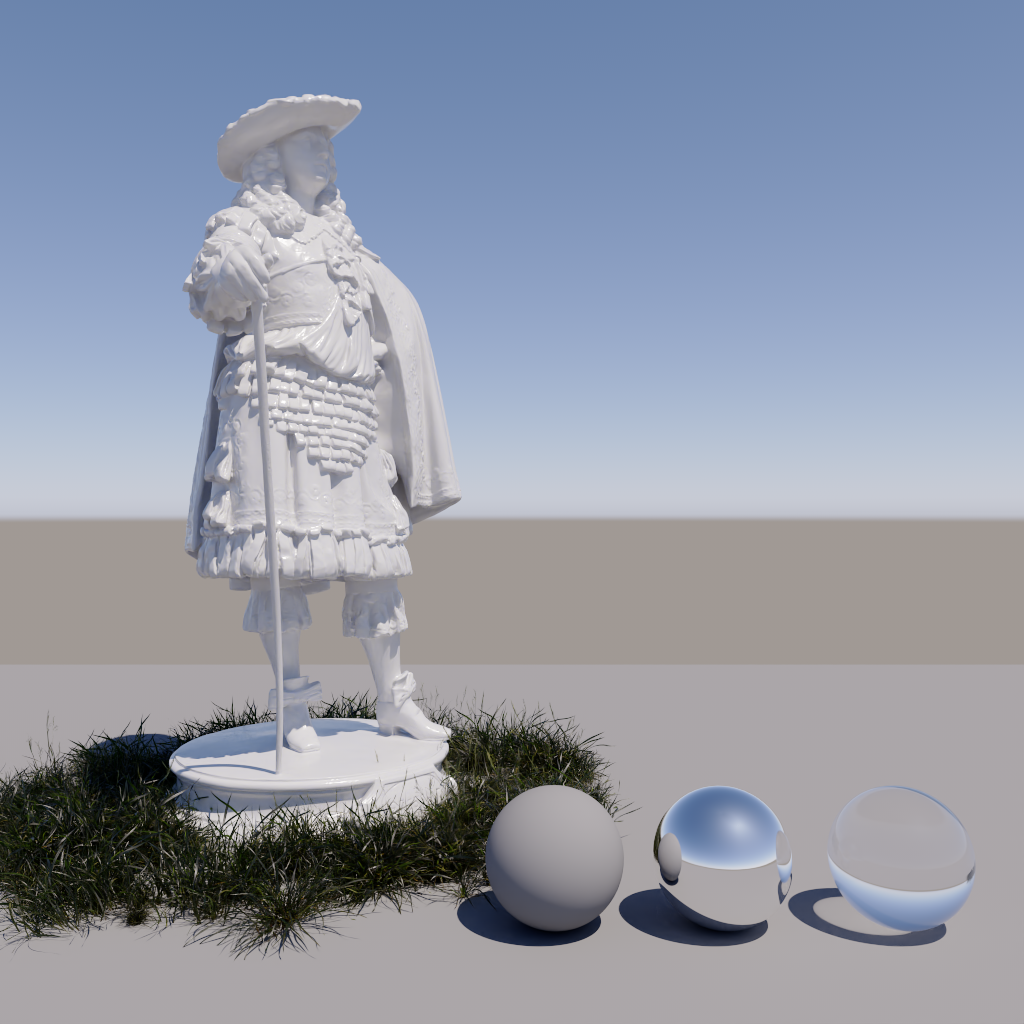

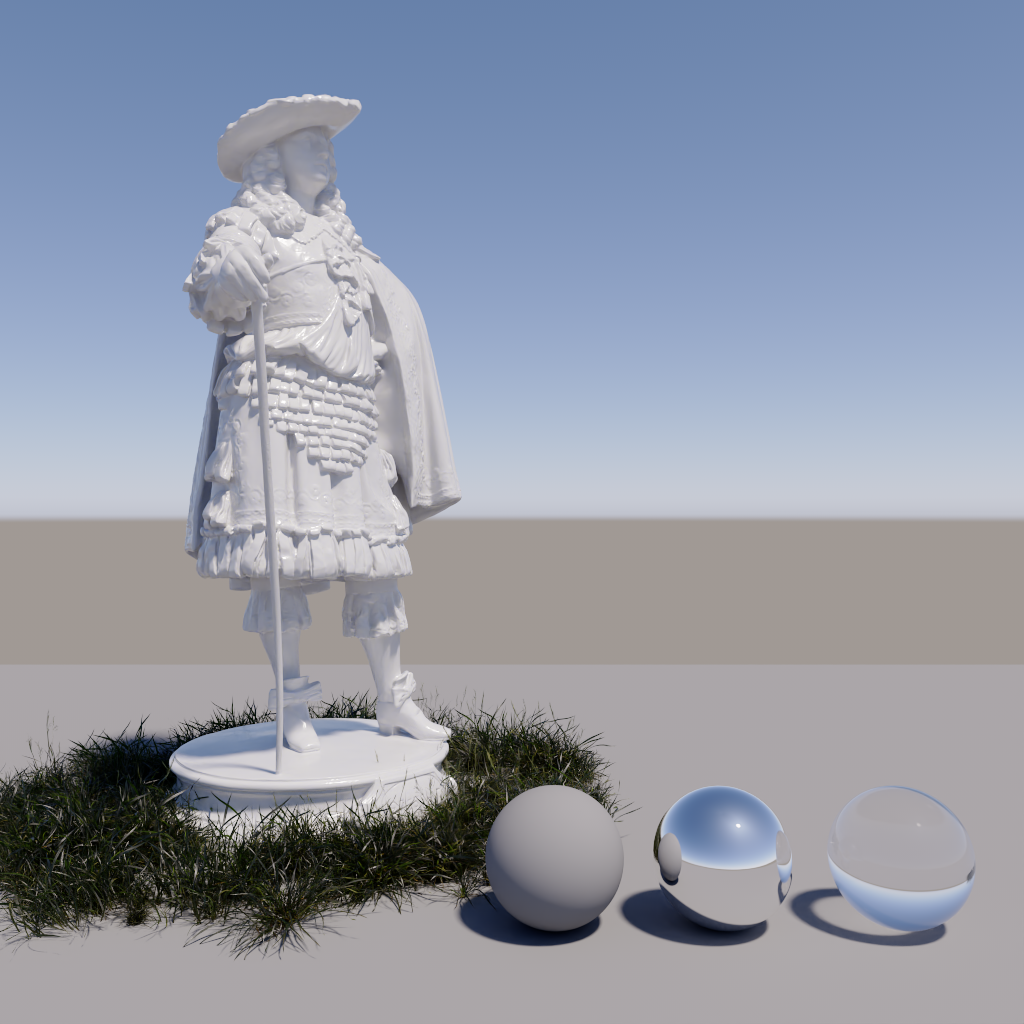

1 (default) 10 30 100



Model

This option lets you pick between the different sky models. PRG Clear Sky is the most modern and produces more realistic and appealing light color, especially at sunrise and sunset.


S

Color

Red-Blue Shift

Specifies a hue shift for the color of the sun light. The default value of 0 will yield physically accurate sun light color. Negative values will shift the sun light color towards blue, while positive values will shift it towards red.

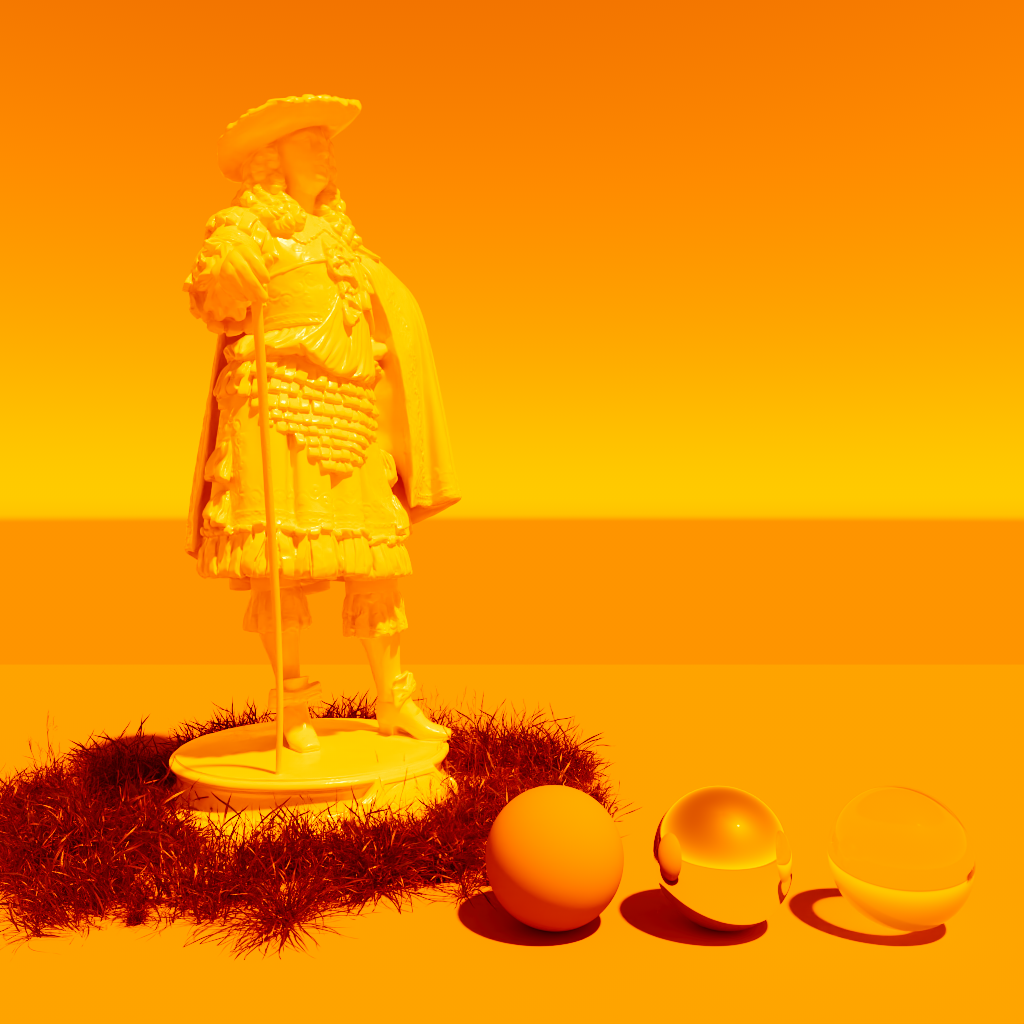

Red-Blue Shift: -1 -0.2 0 (default) 0.2 5


Saturation

Specifies the color saturation of the sun light. The default value of 1 will yield physically accurate sun light color. Smaller values will reduce the color saturation of the sun light, with a value of 0 producing pure white light. Values above 1 will exaggerate the color of the sun light.

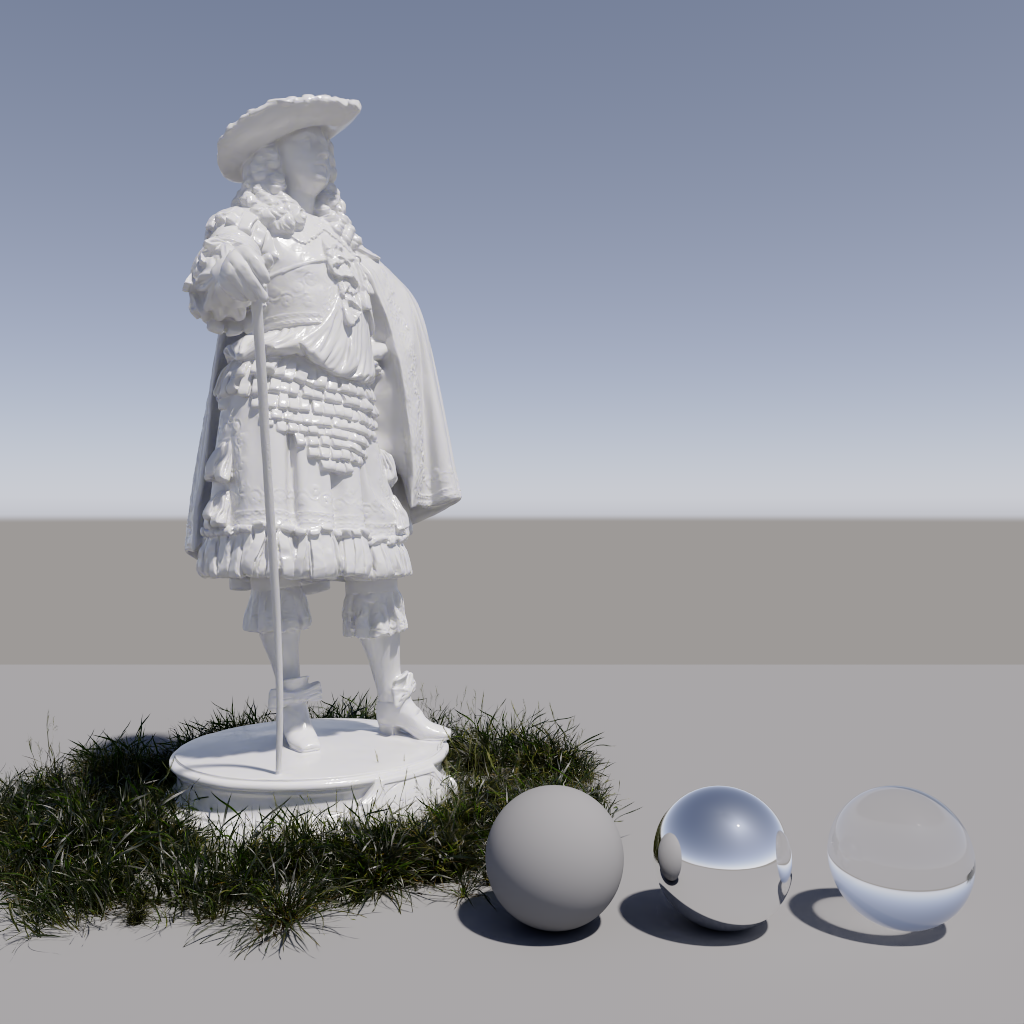

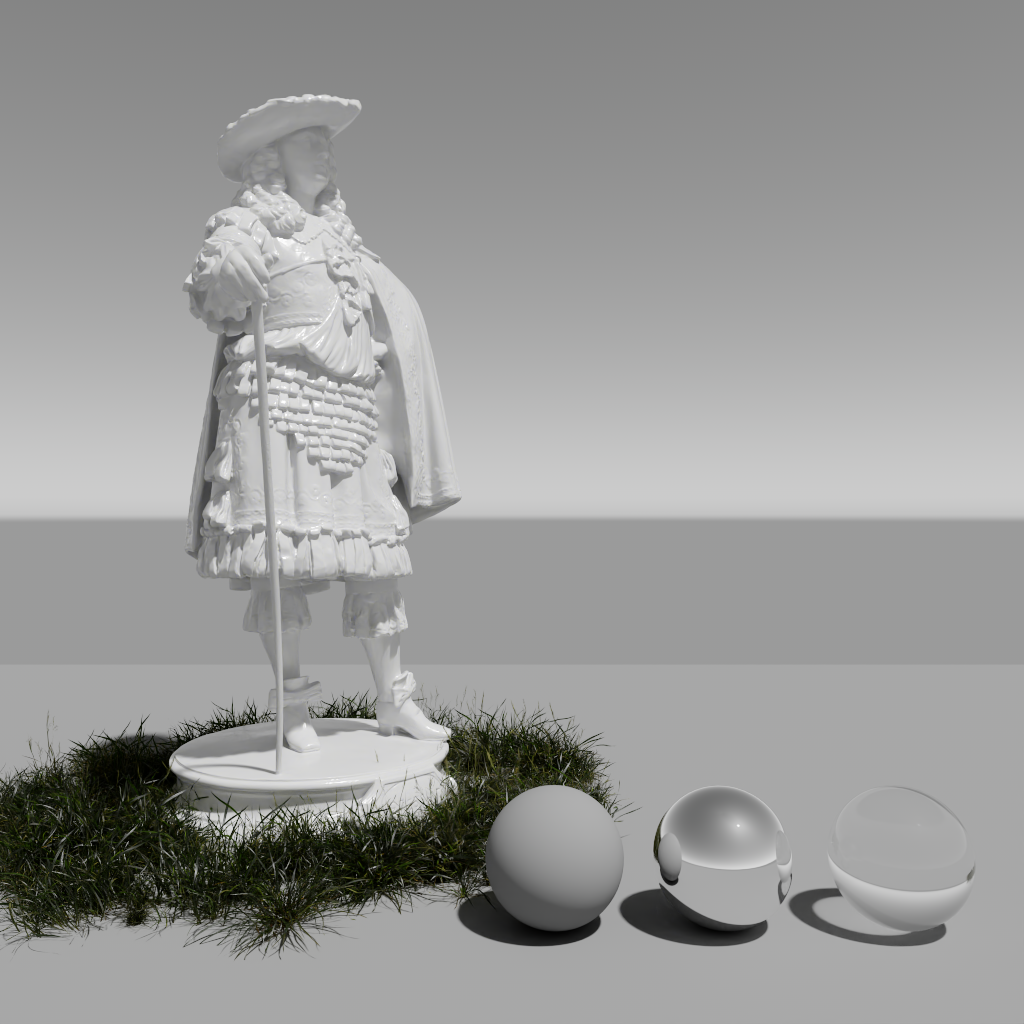

Saturation: 0 0.5 1 (default)



Atmosphere

Turbidity

Specifies the haziness of the air – a measure of dust particle pollution. A value of 2.0 represents a very clear, blue sky, while larger values will make the sky an orange color.

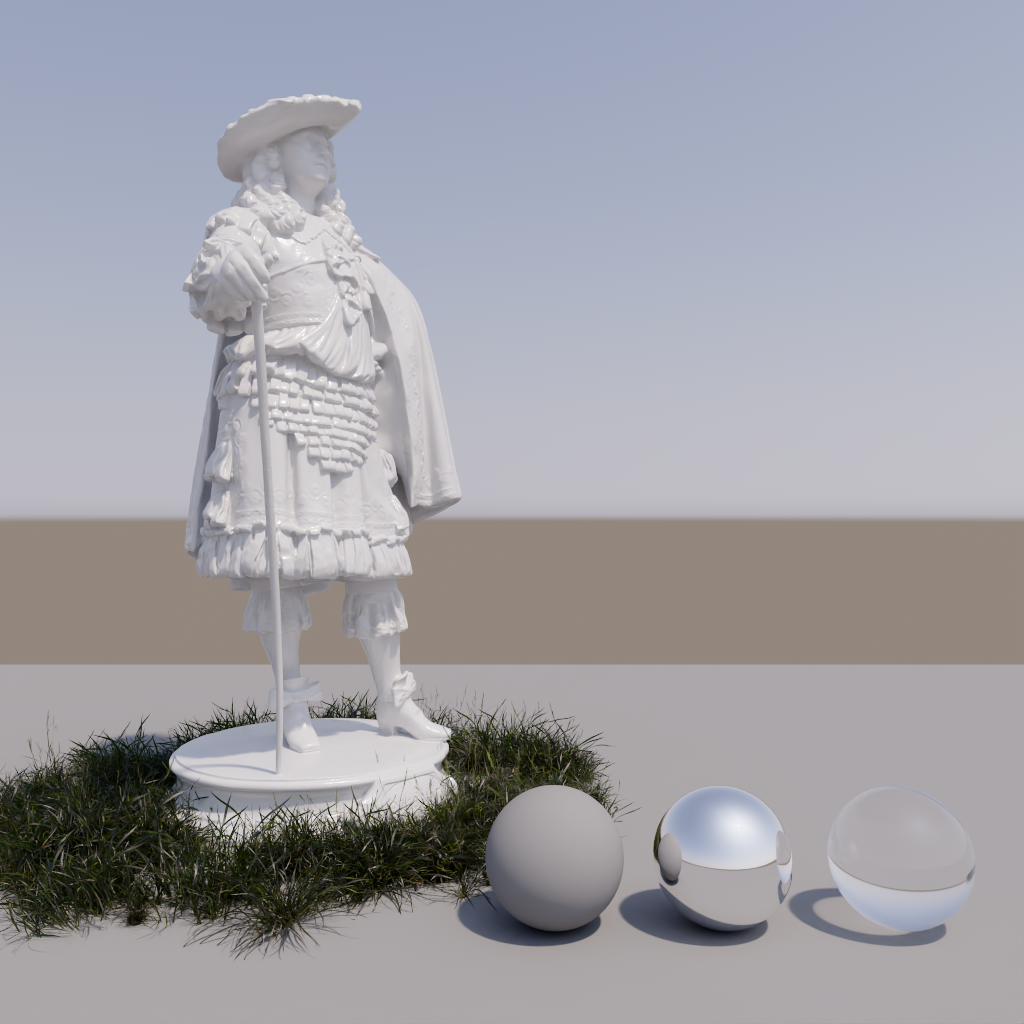

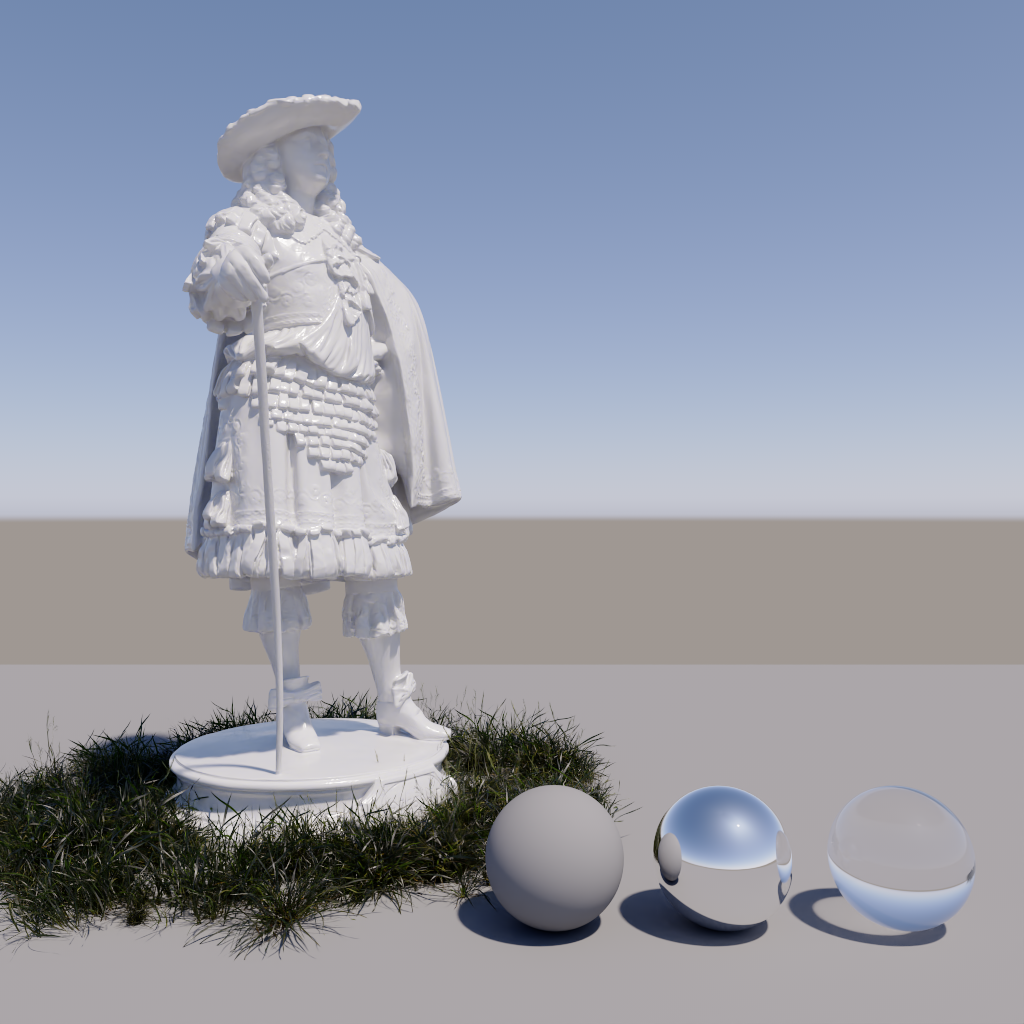

Turbidity: 2 (default) 5 10



Ozone

Only works with the legacy sky model.

Specifies the amount of ozone in the atmosphere, with values ranging from 0.0 to 1.0. The default is 0.35, which is commonly used for the Earth's atmosphere. Smaller values will increase the amount of orange in the sunlight, while larger values will make it more blue.



Horizon Height

Specifies the position of the horizon. Values below 0 will push the horizon down, while values above 0 will raise the horizon.

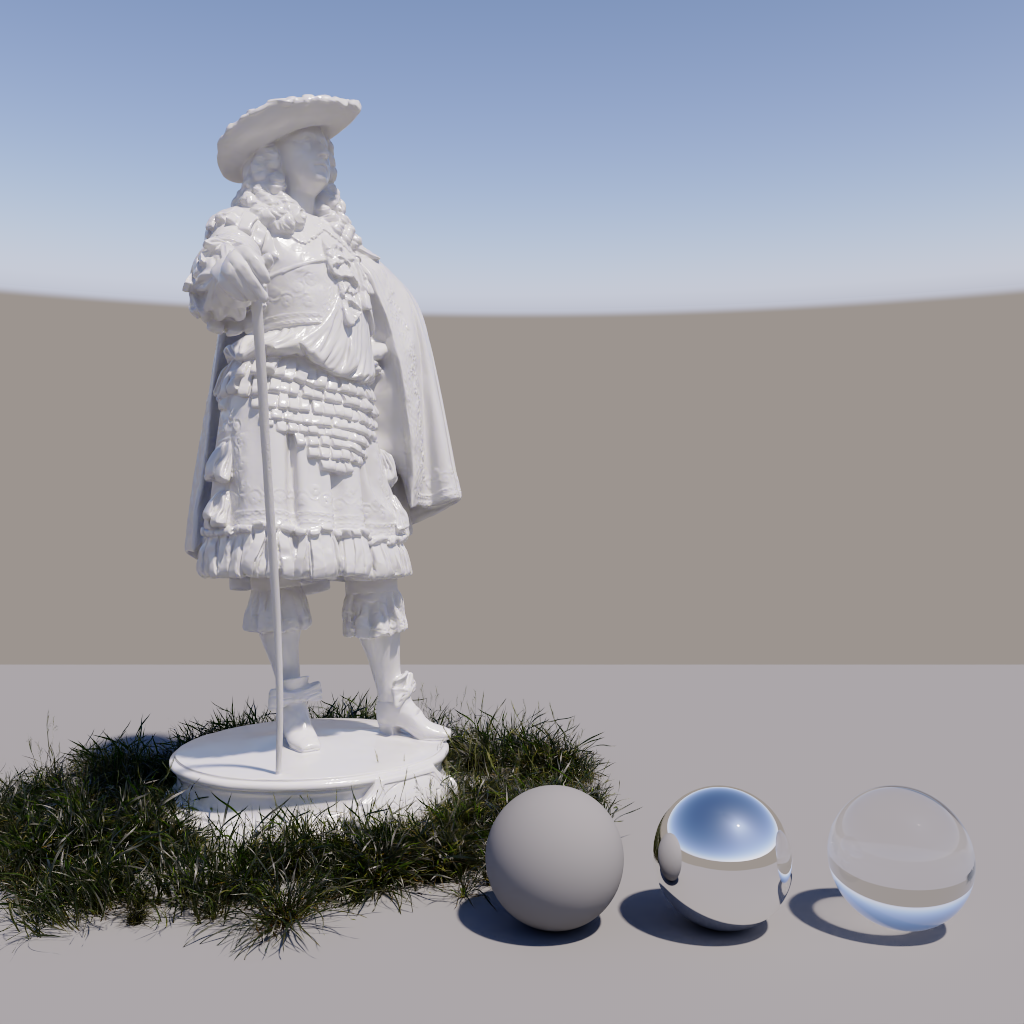

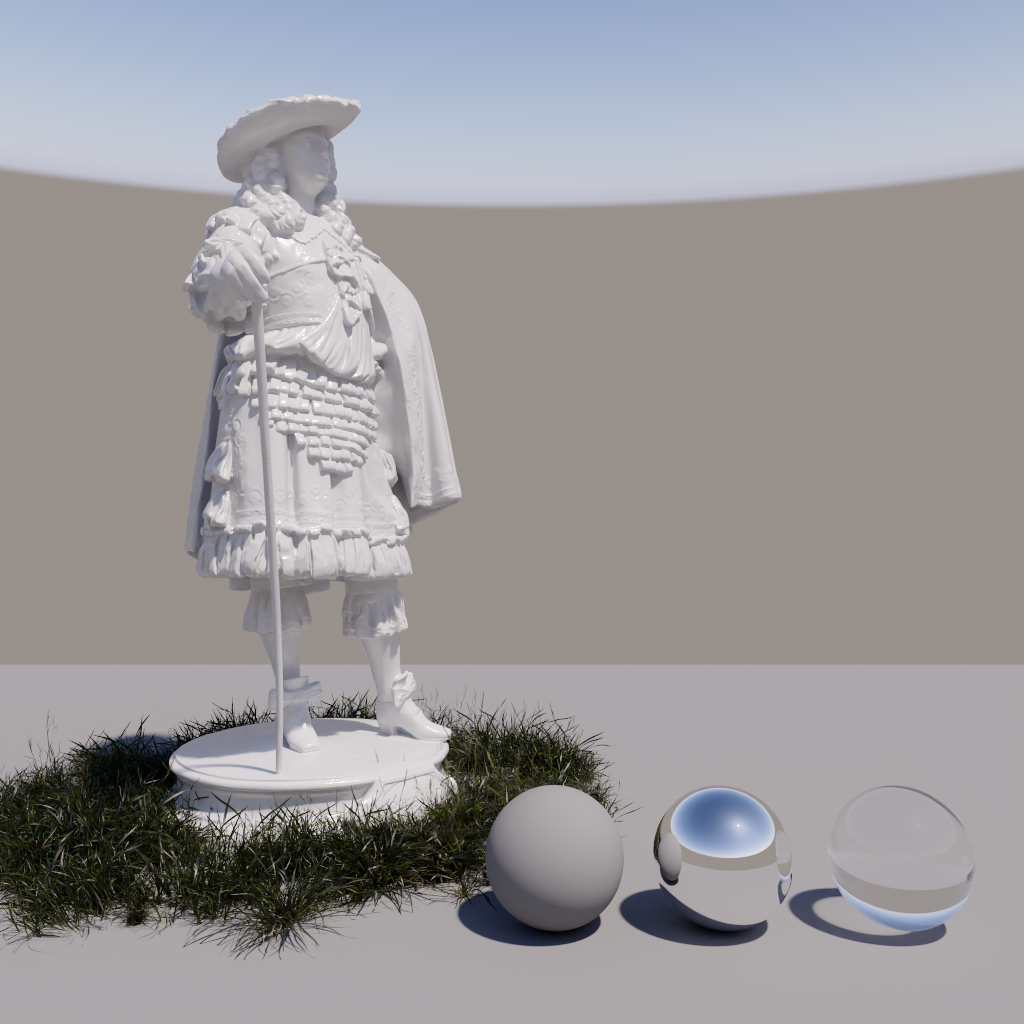

Horizon Height: -1 0 (default) 2 3


Shadow

Enable

Enable or disable shadow casting.


Transparency

Specifies the transparency of the shadows cast by the light. Smaller values yield darker shadows. The default value of 0 will produce a completely black shadow. A value of 1 will produce no shadow at all.

The example below shows how a completely opaque sphere's shadow transparency can be controlled by this light setting.
Transparency 0 to 1


Softness

Specifies edge softness for non-area light shadows. A value of 0 means no softness and will yield sharp shadows. Values above 0 will produce softer shadow edges.


Softness is not available for Physical lights when set to Area. The softness of an Area light is controlled by the light's size itself.


Softness 0 to higher values



Softness Affects Gobo

Enables soft gobo texture projection, to match the softness of the shadows, giving the same appearance as if the light was an area light.


Softness Affects Gobo is only available for non-Area Physical lights and IES lights.



Light Group

AOV Light Group

This is the name of the AOV light group this light is associated with.

For more information on Light Groups and how to set them up and use them please see here.



Contribution

Matte Shadow Illuminator

Specifies whether the light can illuminate 'Matte Shadow' surfaces (see Matte Shadow Catcher shader).


Matte Shadow Illuminator is only available for Redshift Physical and Redshift IES lights.


Affected by Refraction

This option allows you to control how specular reflections are affected by rough/refractive objects that block the light and whether or not the light rays bend as they pass through. Prior to 2.6.10 this option was not available and the light rays would never bend. Specular ray bending is an important effect for rendering realistic-looking glass and lenses.

This effect is available only for area lights and dome lights. Spot and IES lights can not be seen through bent rays because their source is infinitesimally small.

Care must be taken when using 'Always', as this can disable Multiple Importance Sampling, which is a crucial technique for getting clean renders for rough surfaces.

Light/Shadow linking is not available for specular rays that have been bent.


GI Max Trace Depth

This option lets you override the maximum trace depth for GI rays on a per-light basis.



Contribution Scale Parameters



The light contribution parameters covered below modify the scale of individual light shading elements. These parameters offer full creative control in adjusting how much a light impacts a scenes, they can even bet set above 1.

The example scene used below contains three of PolyHaven's marble bust model, the model on the left has a standard shader with diffuse, reflection, and multiple scattering components, the model on the right has a fully transmission shader with single scattering, and the model in the back has been turned into a volume object in order to demonstrate volume contribution. There are two area lights in the scene, a disc area light in the top center and a rectangular area light in the back right. Each light has a contribution value of 1 for each shading type but when a parameter is modified for the example images both lights are adjusted equally.



Diffuse Global Illumination Reflection

Transmission &
Single Scattering

 Multiple Scattering Volume

  Beauty


Diffuse

Scales the intensity a light has on diffuse shading.

Diffuse: 0 1 10
Observe in the first image that when there is no diffuse contribution there is also no global illumination bounce lighting.


Reflection

Scales the intensity a light has on specular reflections.

Reflection: 0 1 10



Transmission

Scales the intensity of a light when seen through a transmissive / refractive object.

A light must be visible in order for transmission scale to have any effect.

When a light is visible a transmission scale of 0 results in the same effect as disabling a light's visibility.

Transmission: 0 1 10



Single Scattering

Scales the intensity a light has on single scattering.

Single Scattering: 0 1 10


Multiple Scattering

Scales the intensity of the light when seen through sub-surface multiple scattered materials.

Multiple Scattering: 0 1 10


Global Illumination

Scales the intensity of a light's global illumination contribution.

Global Illumination: 0 1 10



Volume

Scales the intensity of a light's volume scatter contribution. A value of 0 disables volume scattering for the light.

Volume: 0 1 10
Observe in the first image the volume object in the middle is still illuminated by global illumination even though all lights have volume contribution set to 0.



Caustics

Caustic Photons

Enables caustic photon casting for the light.


Has no effect if Enable Caustics is not enabled in the Redshift Render Options under the Photon Mapping tab.


Intensity Multiplier

Specifies a multiplier for the caustic photon intensity, relative to the intensity of the light. A value of 1 will cause the emitted photons have the same intensity as the light. Smaller values will yield photons with relatively less intensity than the light, while larger values will yield photons with relatively more intensity.


Number of Photons to Emit

Specifies the number of caustic photons to shoot for the light.




Legacy

Non-Area Light Intensity

This option is only relevant for Point, Spot and Infinite light types.

Non-Area Light Intensity activates a previous calculation method for these lights to preserve the look of older scenes. For new lights this option is disabled by default.


Soft Shadow Technique

This parameter is only relevant for Point, Spot, Infinite, IES and Physical Sun light types.

When enabled a previous calculation method for shadows will be used to preserve the look of older scenes. For new lights this option is disabled by default.





Project

In this tab, light linking can be specified.


For more information please see the Light and Shadow Linking tutorial.


Mode

Specifies whether the objects in the list should be excluding or included with respect to the light settings.


Objects

The list of objects that should be affected (in Include Mode) or not affected (in Exclude mode). For each object in the list the light behavior can modified to receive light, receive shadows, and to affect the object's children.
