Light Group AOVs

Table Of Contents


Introduction

Light Group AOV: Beauty Key Light

Beauty Disc & Spot Lights

Beauty Dome light







Main Beauty


For even more control in post you can make use of Light Group AOVs. The light group functionality allows you to output per-light AOVs for most of Redshift's Integrated beauty AOVs. With separate passes for each light you can do things like increase or decrease the exposure of individual lights and change their color temperatures without having to re-render. Light groups can contain a single light or multiple lights for added flexibility and organization, allowing you to group together lights that fill similar roles.

Before you can start outputting light group AOVs first you have to create light groups and assign your lights to them. For more information please see here.

Compatible Light Group AOVs

Incompatible Light Group AOVs


Light Group Limitations

Light Group AOVs are only compatible with ray-traced effects. When incompatible light group effects are used the shading component will instead show up in the "other" light group AOV or as apart of the "all" light group AOV depending on your Global AOV mode.

Compatible Light Group Effects

Incompatible Light Group Effects

Perfectly matching a light group composite to the main beauty can also become troublesome due to clamping differences. The main beauty clamps the sum of all the lighting components compared to AOVs which are only clamping the individual components, this can result in a different result when all AOVs are composited together compared to the main beauty.

Some potential steps you can take to get a closer match this are:

  1. Raising clamps (to reduce differences)
  2. Enabling AOV clamps (wrong results, but close)
  3. Applying luminance-based clamping in post (closer, but more complicated)



Creating Light Groups


Setting Up Light Group AOVs


Light Group AOV Options



Global AOV

Select the Global AOV mode for Light Group AOVs. In most cases the Remainder mode is preferable.


All Light Groups

When toggled on this lets you quickly output a Light Group AOV for every Light Group in your scene without having to manually specify each one in the Light Group List.


Light Group List

This is where you select or list the light groups that you want to output for this AOV.


Light Groups in Detail

Example scene


There are 4 total lights set up in the following Light Groups:

Below are the resulting Light Group AOVs for their respective shading elements using both ray-traced effects and point-based effects for comparison when applicable. For the ray-traced examples everything is rendered with ray-traced effects (brute force GI, ray-traced SSS) with the exception of photon caustics. For the point-based examples the GI is rendered with Iraddiance Cache and Irradiance Point Cloud and the SSS is point-based and still contains the photon caustics.


Please note: examples of both Global AOV options (Remainder and All) are provided for comparison in each demonstration below however it is not possible to output both of these at the same time, you must choose between one or the other.


Beauty

Ray-Traced



Light Group AOV: key_light

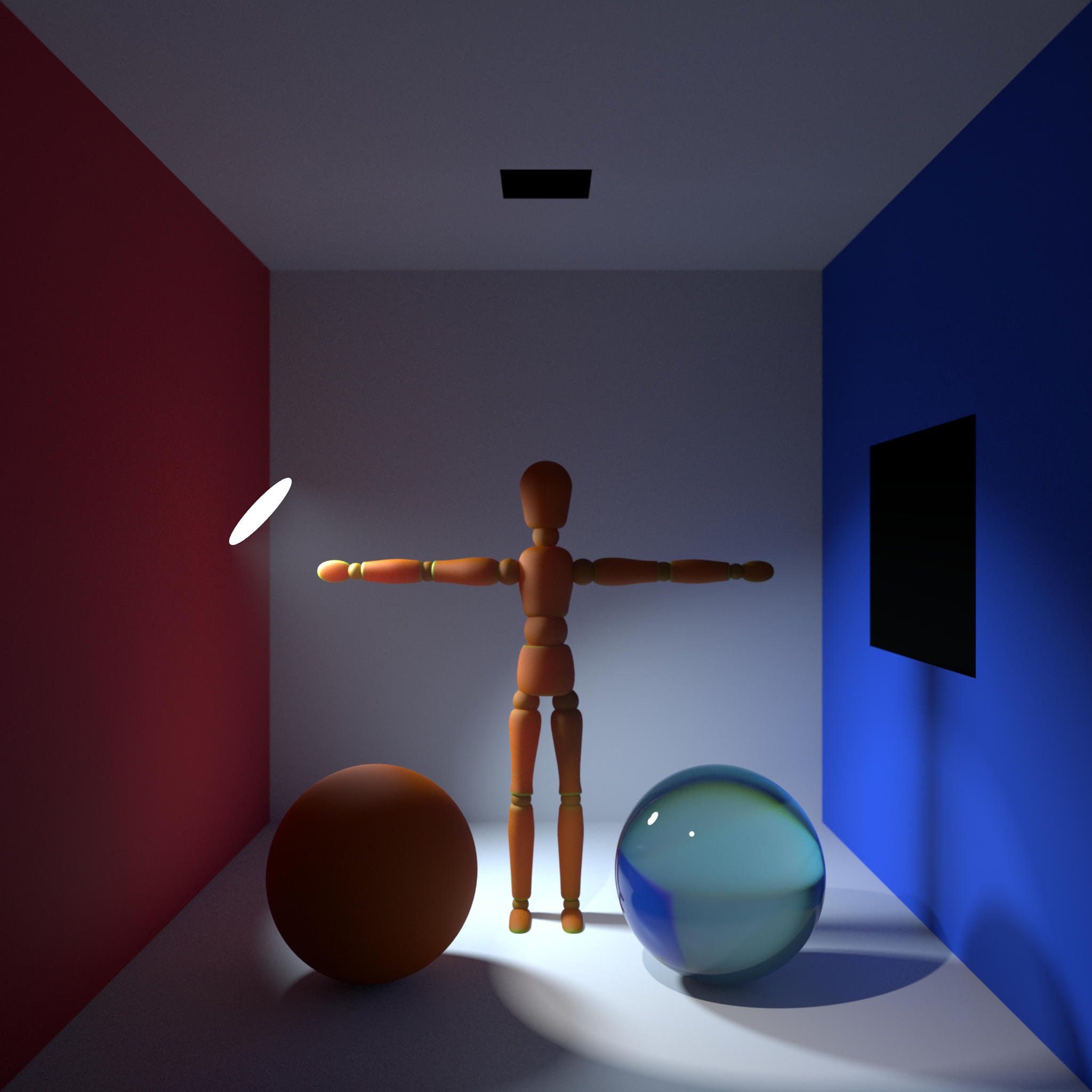

disc_spot_lights

dome_light

other

(Global AOV: Remainder)

beauty

(Global AOV: All)






Point-Based





Light Group AOV: key_light

disc_spot_lights

dome_light

other

(Global AOV: Remainder)

beauty

(Global AOV: All)


Note that in the point-based example all non-ray-traced effects show up exclusively in the Other or All AOVs. So you have no way of separating the global illumination, sub-surface scattering and caustic contribution on a per-light basis, instead they are all lumped together.

For the ray-traced example only the photon caustics show up in the "other" AOV here even though they are being cast by the spot light. Since caustics are not ray-traced they cannot be output with their appropriate light group and thus end up in the Other or All passes.


Diffuse Lighting

Light Group AOV: key_light

disc_spot_lights

dome_light

other

(Global AOV: Remainder)

DiffuseLighting

(Global AOV: All)


Global Illumination

Ray-Traced





Light Group AOV: key_light

disc_spot_lights

dome_light

other

(Global AOV: Remainder)

GI

(Global AOV: All)






Point-Based





Light Group AOV: key_light

disc_spot_lights

dome_light

other

(Global AOV: Remainder)

GI

(Global AOV: All)


Reflection

Light Group AOV: key_light

disc_spot_lights

dome_light

other

(Global AOV: Remainder)

Reflection

(Global AOV: All)


Note that in this case the light seen in the Other AOV is the photon caustics seen in the reflections.


Specular Lighting

Light Group AOV: key_light

disc_spot_lights

dome_light

other

(Global AOV: Remainder)

SpecularLighting

(Global AOV: All)


Refraction

Light Group AOV: key_light

disc_spot_lights

dome_light

other

(Global AOV: Remainder)

Refraction

(Global AOV: All)


Note that in this case the light seen in the Other AOV are the photon caustics seen through the refractions.


Sub Surface Scattering

Ray-Traced





Light Group AOV: key_light

disc_spot_lights

dome_light

other

(Global AOV: Remainder)

SSS

(Global AOV: All)






Point-Based





Light Group AOV: key_light

disc_spot_lights

dome_light

other

(Global AOV: Remainder)

SSS

(Global AOV: All)


Volume Lighting

Light Group AOV: key_light

disc_spot_lights

dome_light

other

(Global AOV: Remainder)

VolumeLighting

(Global AOV: All)


Emission

Light Group AOV: key_light

disc_spot_lights

dome_light

other

(Global AOV: Remainder)

Emission

(Global AOV: All)


Note that if a light is visible in your scene it is output in the Emission AOVs as demonstrated above.


Light Groups in Practice


Compositing Light Group AOVs

Light Group AOVs can be composited easily just like any other non-raw AOV, by adding the result together in your preferred compositing package. For some examples on AOV compositing please see here.
