Render Settings - Production - Basic

The Bucket Quality setting allows you to quickly adjust overall render quality by switching between preset sampling Threshold values. Higher quality modes decrease the Threshold value which improves render quality and reduces noise but at the cost of render time. The Custom preset is automatically switched to when you enter your own custom threshold value. For more detailed information please see the Unified Sampling page.

The Threshold parameter refers to Unified Sampling's Adaptive Error Threshold and is controlled by the Bucket Quality presets or by the user when set to Custom Bucket Quality. Lower Threshold values improves render quality and reduces noise but at the cost of render time. For more detailed information please see  this page.

The Denoising checkbox allows you to quickly toggle denoising on and off. Denoising allows you to easily render images at a reduced baseline quality (lower sample counts) and increased speed at the expense of some potential accuracy. Denoising can only do so much and a balance must be struck between Bucket Quality and the denoiser engine of choice in order to find what works best for your project.

Redshift has three built-in Denoising Engines and they can easily be switched between here, each one with their own general pros and cons.

• OptiX - Very fast and can be used during interactive rendering but can have more trouble cleaning noise compared to Altus.
• OIDN - Fast and can be used during interactive rendering but can have more trouble cleaning noise compared to Altus.
• Altus Single - Slower (renders the frame once before denoising) and non-interactive but produces good results for final quality renders.
• Altus Dual - Slowest (renders the frame twice before denoising) and non-interactive but produces great results for final quality renders.

For more information on Denoising and the different Denoising Engines please see the Denoising page.

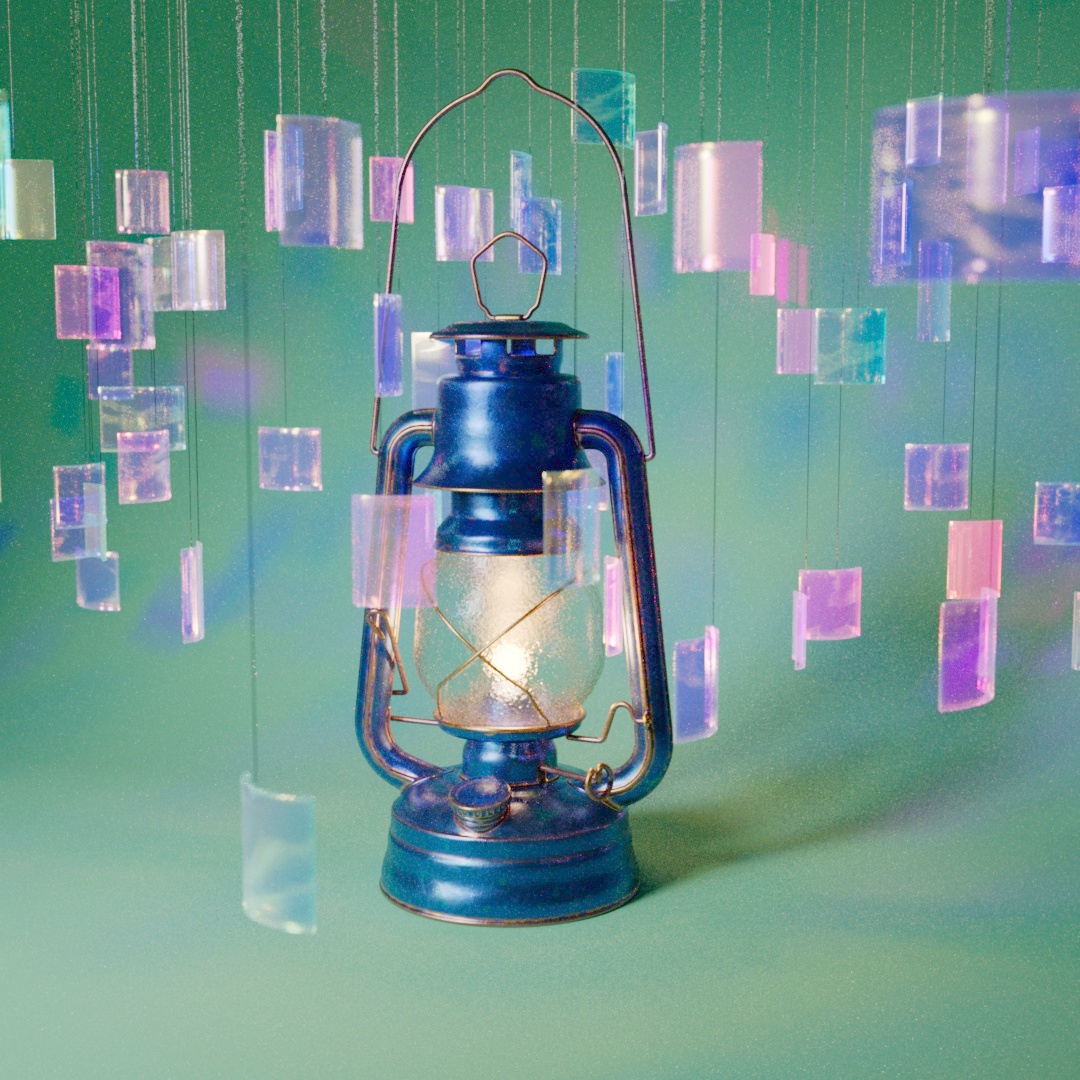

The images below were rendered with Bucket Quality Low in order to better demonstrate the differences of the different Denoising Engines due to the low sample count resulting in more visual noise.

The Motion Blur checkbox lets you quickly toggle Motion Blur on and off. For more information please see this page.

This controls the number of linear motion blur steps that Redshift will use to represent the trajectory of cameras, lights and objects. More steps means the trajectories will be more accurate but also more memory will be used.

This checkbox toggles Deformation Blur for Motion Blur on and off. Deformation Blur tracks the motion of individual vertices and can be memory-intensive, if your objects do not have animated deformation this parameter can be left disabled for increased performance. For more information please see  this page.

In the example images below notice how the trajectory of the moving lantern is more appropriately rendered as the Motion Blur Steps are increased. All renders were taken from the same animation, the only thing changed was the Motion Blur Step count.

The Global Illumination checkbox lets you quickly toggle bounced indirect lighting on and off. For the most realistic lighting Global Illumination should be left enabled but it will increase render times. For more information please see  this page.

In the example images below notice how the bounce lighting from the floor and wall next to the lantern is realistically filled in when Global Illumination is enabled.

Enables or disables the rendering of Caustics. Caustics are used to render highly concentrated light rays that reflect off of or refract through surfaces. Enabling caustics may add high intensity noise that is difficult to clean up.

Caustics: Enabled	Disabled

Depth parameters control how many times a ray of its individual type can interact with objects in a scene until it is terminated.

The Combined Depth parameter specifies the maximum number of times any individual ray can be used for global illumination, reflection, transmission / refraction, or volume scattering. Even if the depth values for an individual ray type is higher than the Combined Depth the resulting render will still be capped at the Combined Depth value.

Separating the controls like this provides more flexibility, allowing individual effects to be rendered with increased depth when needed but restricting unnecessarily high render times. For example, let's say that reflection and refraction are both set to a value of 4 and combined is set to 6. If a ray had already been reflected 4 times, then it could only be refracted 2 more times because the combined trace depth is 6.

The Global Illumination Depth parameter sets an individual cap on how many times an indirect lighting ray can bounce. Increase this parameter for interior scenes where many indirect bounces are required for realistic lighting.

The Reflection Depth parameter sets an individual cap on how many times a reflection ray can bounce.

The Refraction Depth parameter sets an individual cap on how many times a refraction ray can bounce or pass through objects.

The Volume depth parameter puts an individual cap on how many times a ray can scatter around inside a volume. This is commonly referred to as volumetric multiple scattering, for more information please see the Volume Shader page.

Volume multiple scattering requires GI to be enabled.

Volume Trace Depth: 1	11	31
Asset Courtesy of Walt Disney Animation CC BY-SA 3.0 License

The Transparency Depth parameter sets an individual cap on how many times a transparency ray can pass straight through objects. Transparency is utilized for things like Opacity in the Redshift Material to go much deeper than complex refractions and render much faster than refractions.

The test scene below was modified specifically to demonstrate the impact of the depth settings by putting 8 panes of glass in a row in front of the camera. Each pane of glass has actual thickness so for a ray to fully pass through one it requires a trace depth of at least 2, since there are 8 panes of glass a minimum trace depth of 16 is required to see through all 8 panes. See below that the glass on the lantern is not even visible until the refraction trace depth is high enough to get through all 8 panes of glass and the lantern glass itself. These same limitations are imposed on each ray type by their individual caps as demonstrated in the last example where the Global Illumination and Reflection Depths are reduced well below the Combined Depth resulting in the loss of most of the reflections and global illumination.

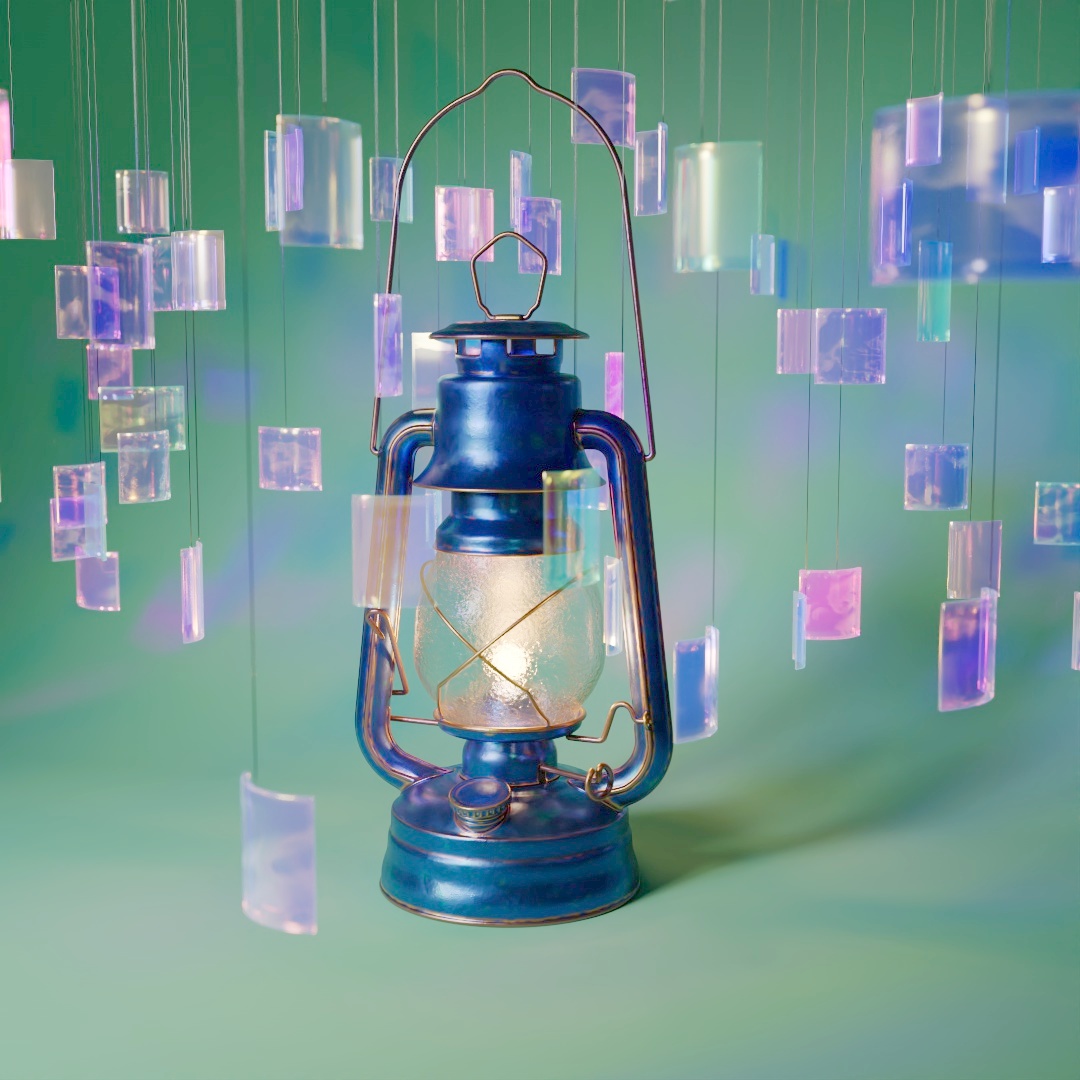

When enabled this will utilize any available hardware accelerated ray-tracing as long as you are rendering with compatible video cards like the Nvidia RTX series graphics cards.
