UV Projection

Table Of Contents

Introduction

This node is useful for quick 3D projections of 2D textures onto objects with customizable placement.

Texture

Color

Connect your texture or select a color here.


Source texture	Projection result

Coordinates

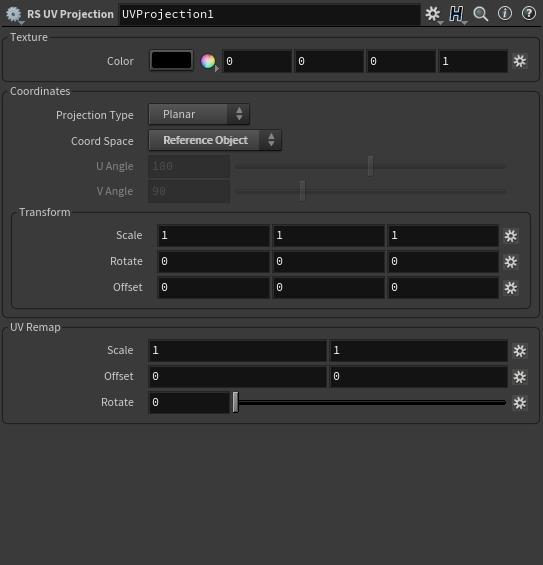

This section controls the type of 3D projection and the transform parameters of said projection.

Projection Type

This option sets the projection style from the following types:

Planar - projects the texture on an object from a planar surface.
Spherical - projects the texture from the inside of a sphere onto an object.
Cylindrical - projects the texture from the inside of a cylider onto an object.
Ball - projects the texture from the inside of a ball onto an object.
Cubic - projects the texture from the inside of a cube onto an object.

If you need to planar project a texture on each axis please see the Tri Planar node instead.

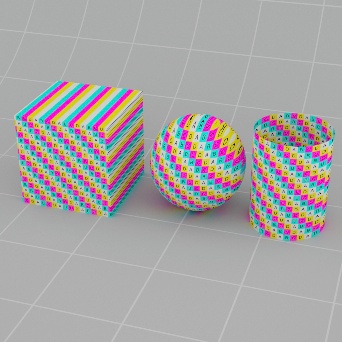

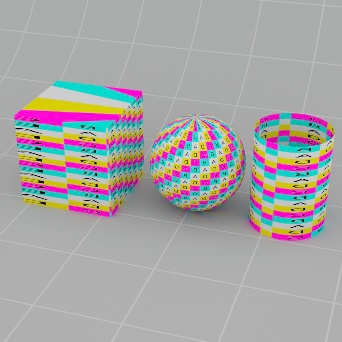

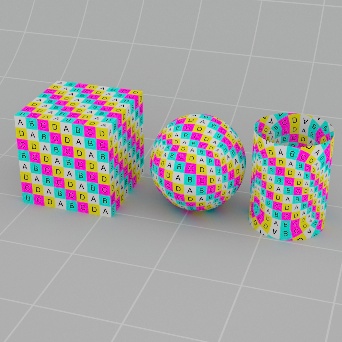

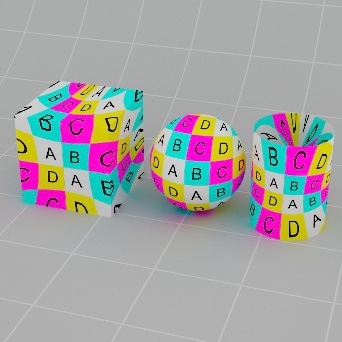

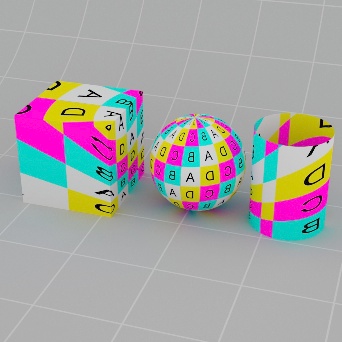

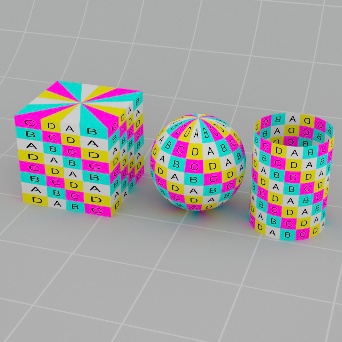

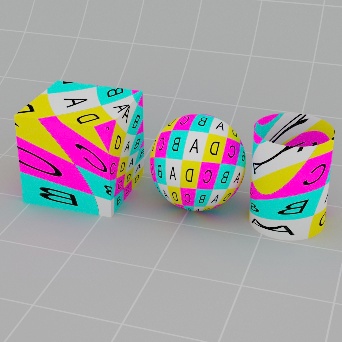

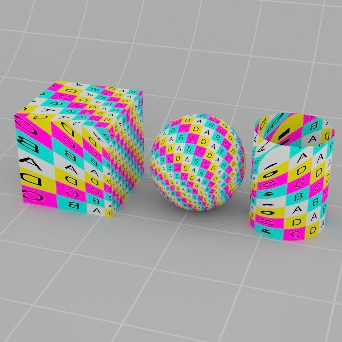

Projection Type: Planar Coord Space: World	Spherical	Cylindrical	Ball	Cubic

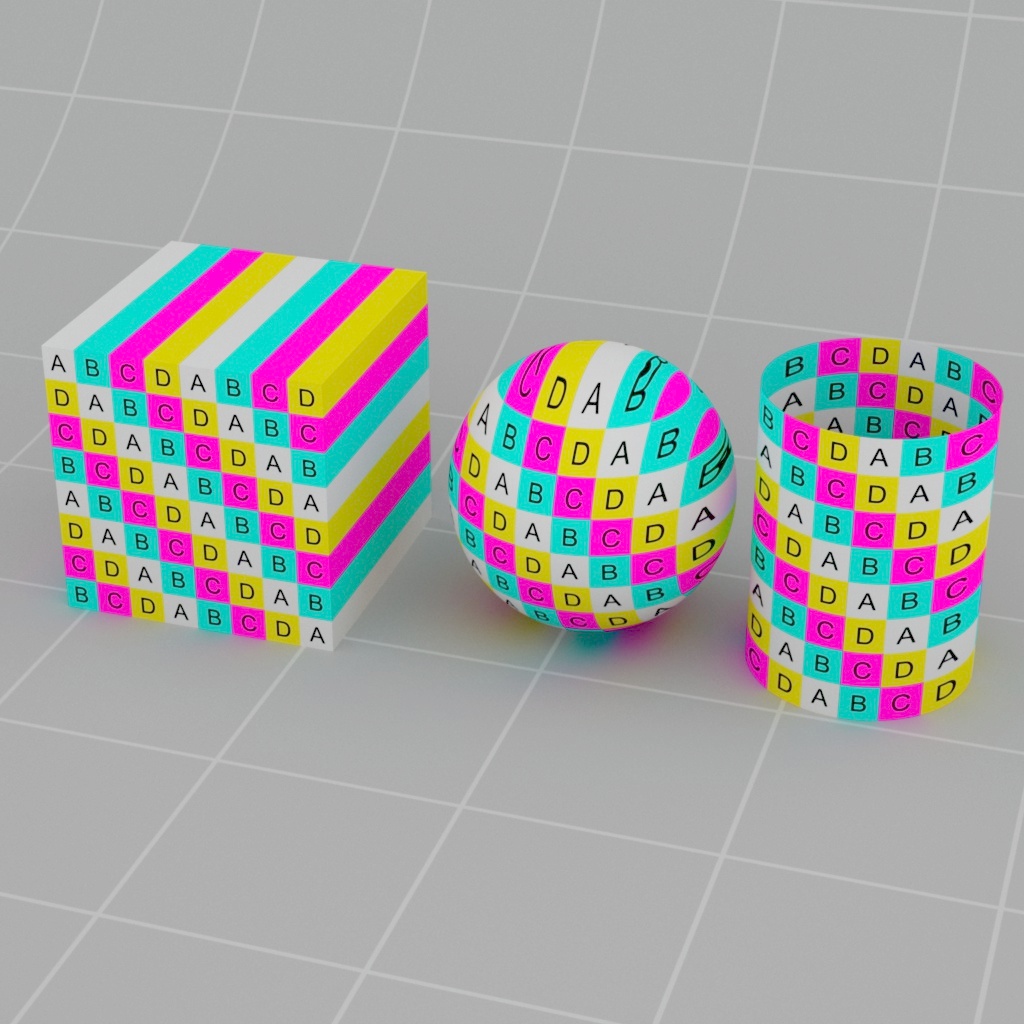

Projection Type: Planar Coord Space: Object	Spherical	Cylindrical	Ball	Cubic

Coord Space

This sets the projection coordinate space type. The options are as follows:

World - uses the world-space coordinates that are being shaded. This option will result in texture projection 'swimming' if the object moves or is instanced.

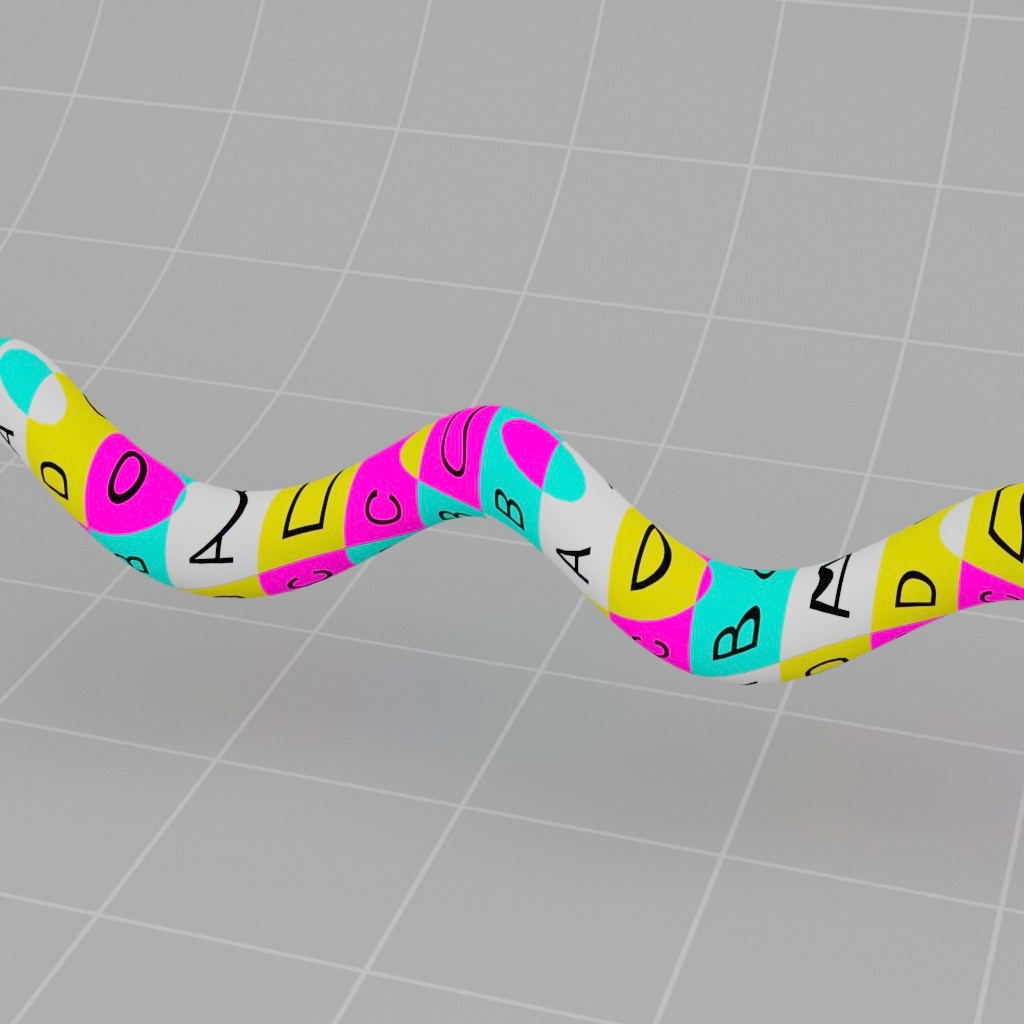

Object - uses the object-space coordinates that are being shaded. This option undoes the world transform to lock the coordinates to the local object space, resulting in no texture projection swimming when the object moves or is instanced.

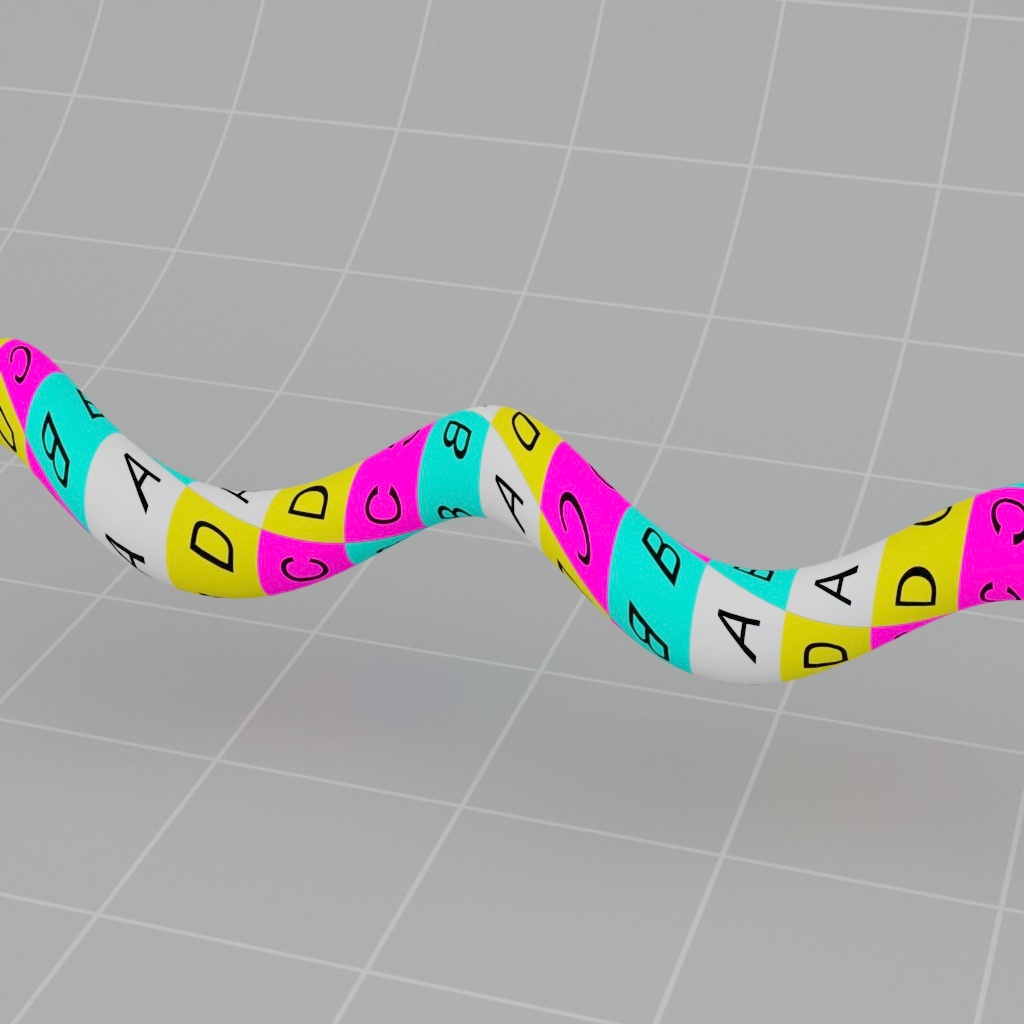

Reference - uses the object reference pose coordinates, if available. This option results in no texture projection swimming when the object moves, is instanced or is deformed.

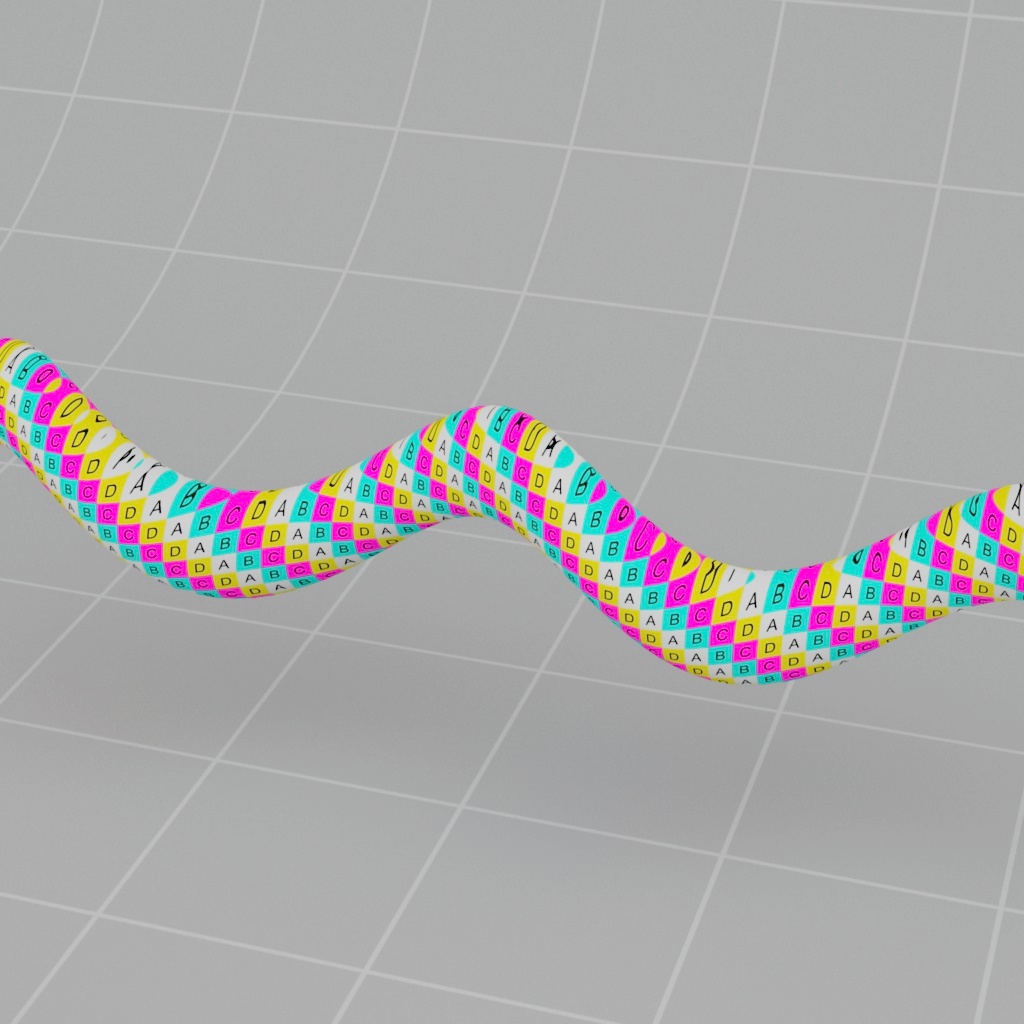

Coord Space: World	Object	Reference

The UV Projection node reference feature needs not only the rest position but also the rest normals to work. The rest normals attribute must be enabled in the Rest SOP setting the Rest Normals option to “Add Normals”

U Angle

Changes the U angle projection value for cylindrical and spherical projection types.

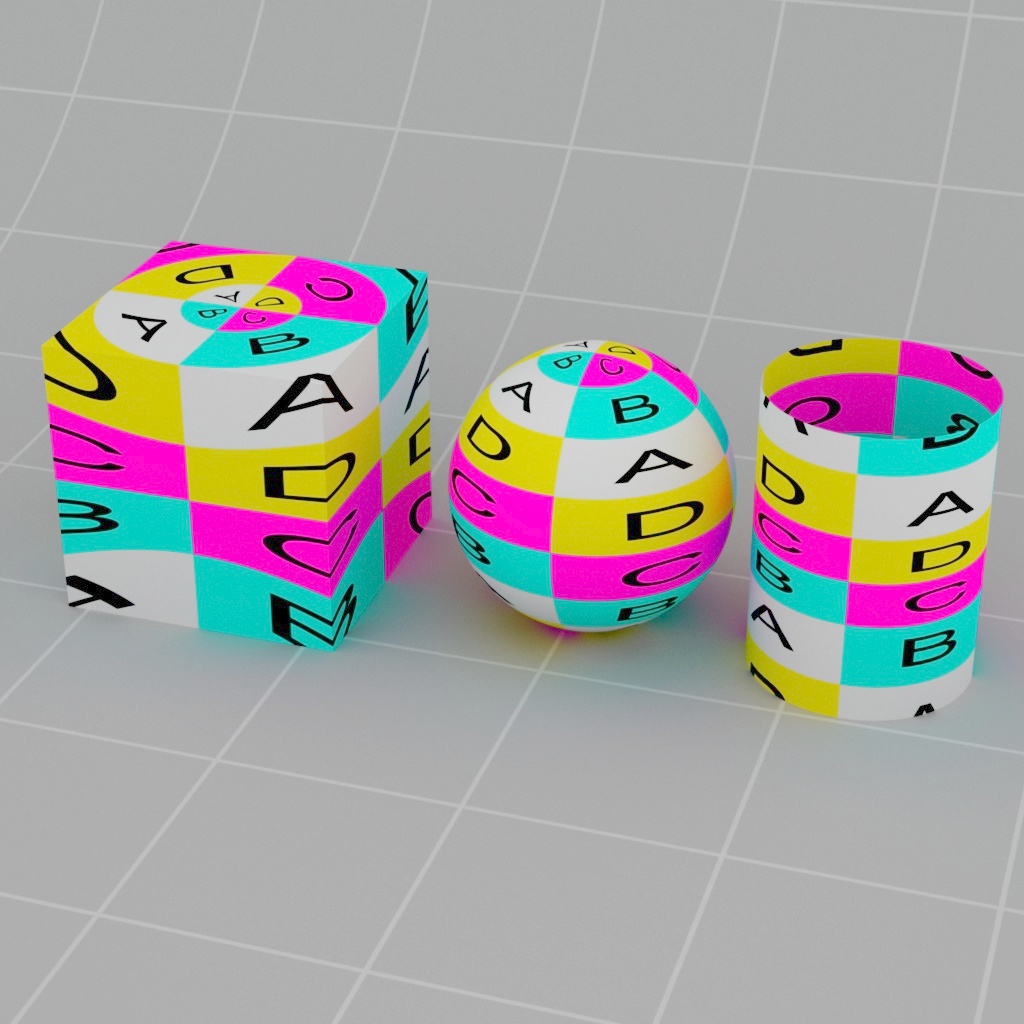

U Angle: 45	180 (default)	360

V Angle

Changes the V angle projection value for cylindrical and spherical projection types.

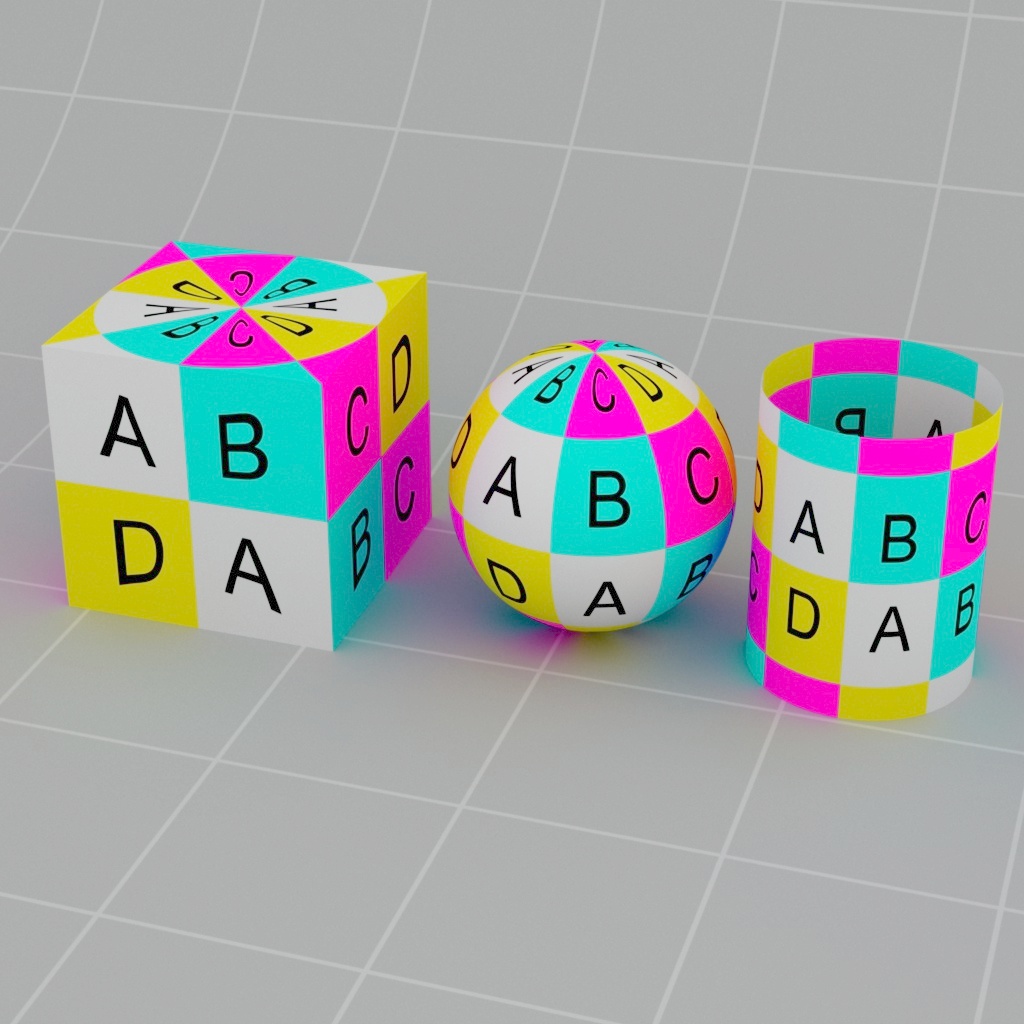

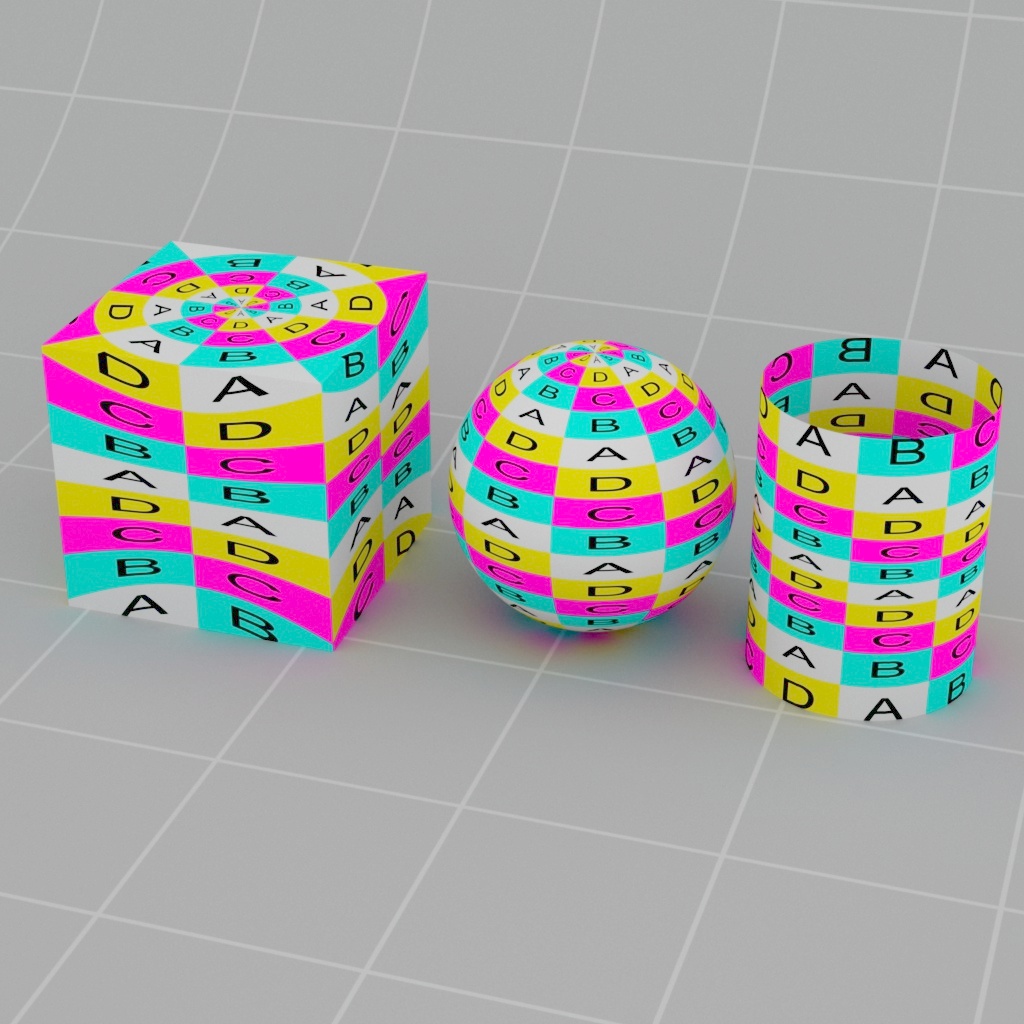

V Angle: 45	90 (default)	180

Transform

This section adjusts the 3D transform values of the projection in world or object space.

Scale

Sets the 3D scale of the projection.

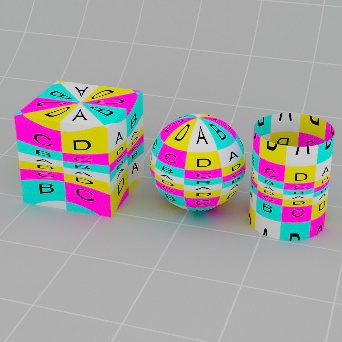

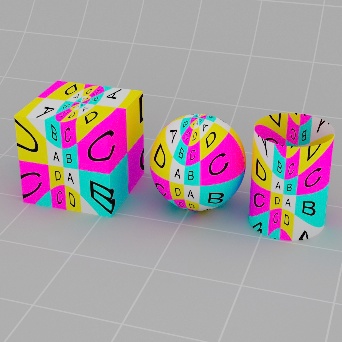

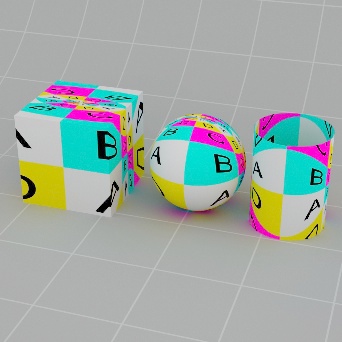

Scale X, Y, Z: 1, 1, 1	3, 1, 1	1, 3, 1	1, 1, 3

Rotate

Sets the 3D rotation of the projection.

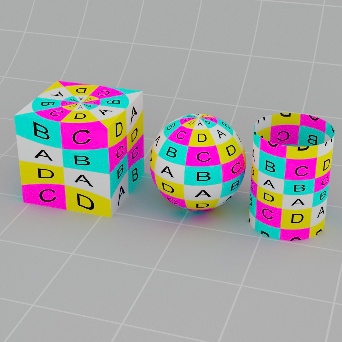

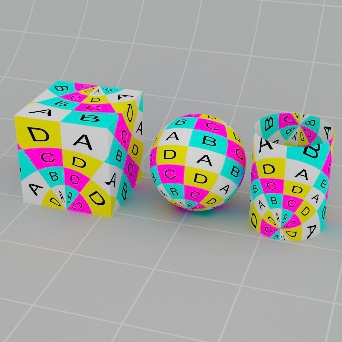

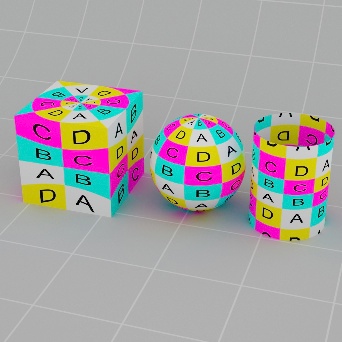

Rotate X, Y, Z: 0, 0, 0	45, 0 , 0	0, 45, 0	0, 0, 45

Offset

Sets the 3D translation of the projection.

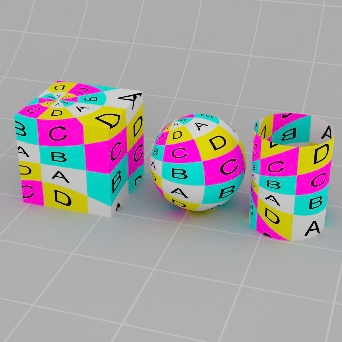

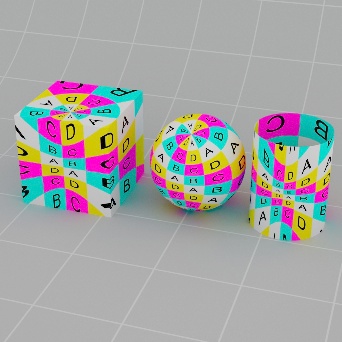

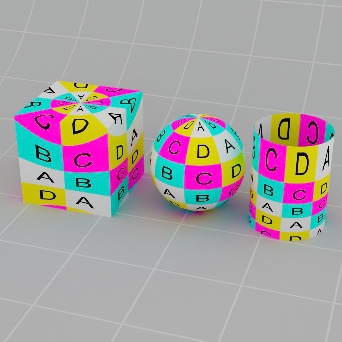

Scale X, Y, Z: 0, 0, 0	0.5, 0, 0	0, 0.5, 0	0, 0, 0.5

UV Remap

This section adjusts the transform values of the 2D texture.

Scale

Sets the 2D scale of the texture.

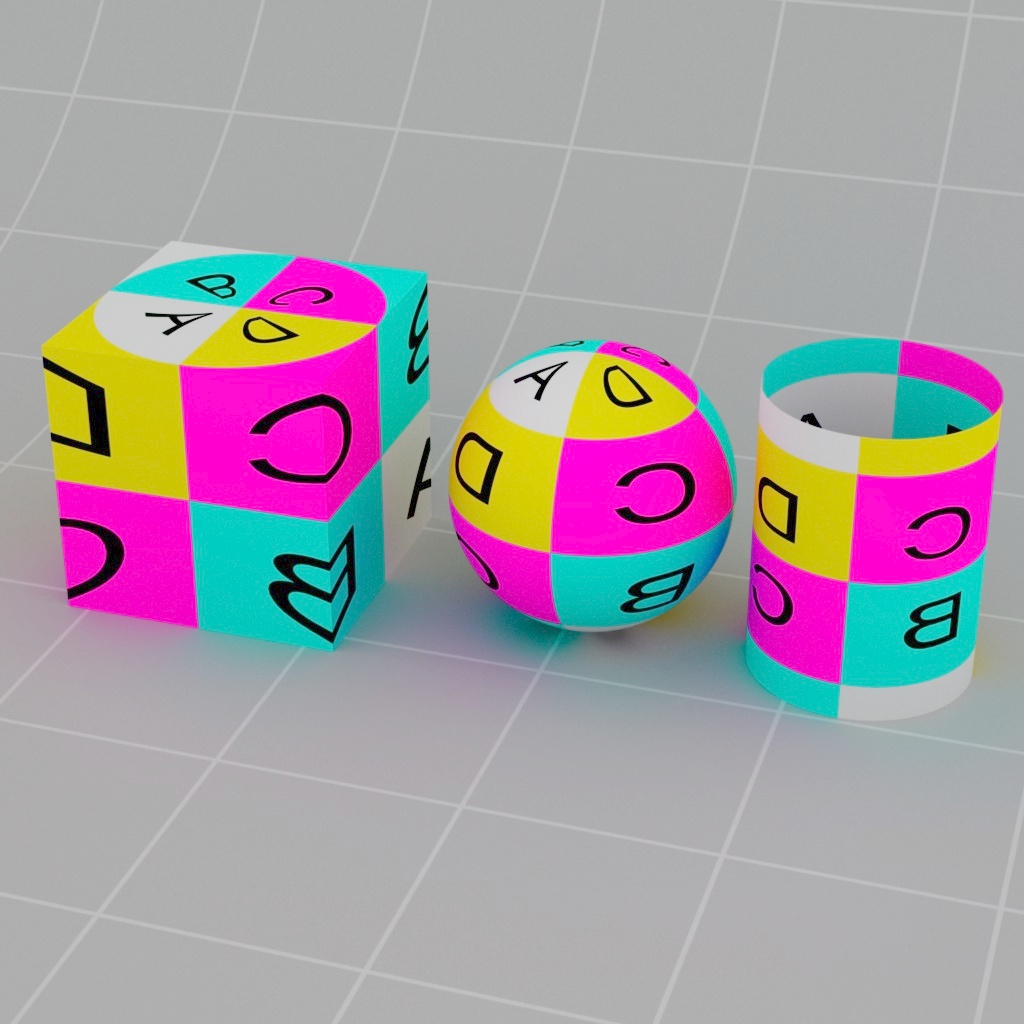

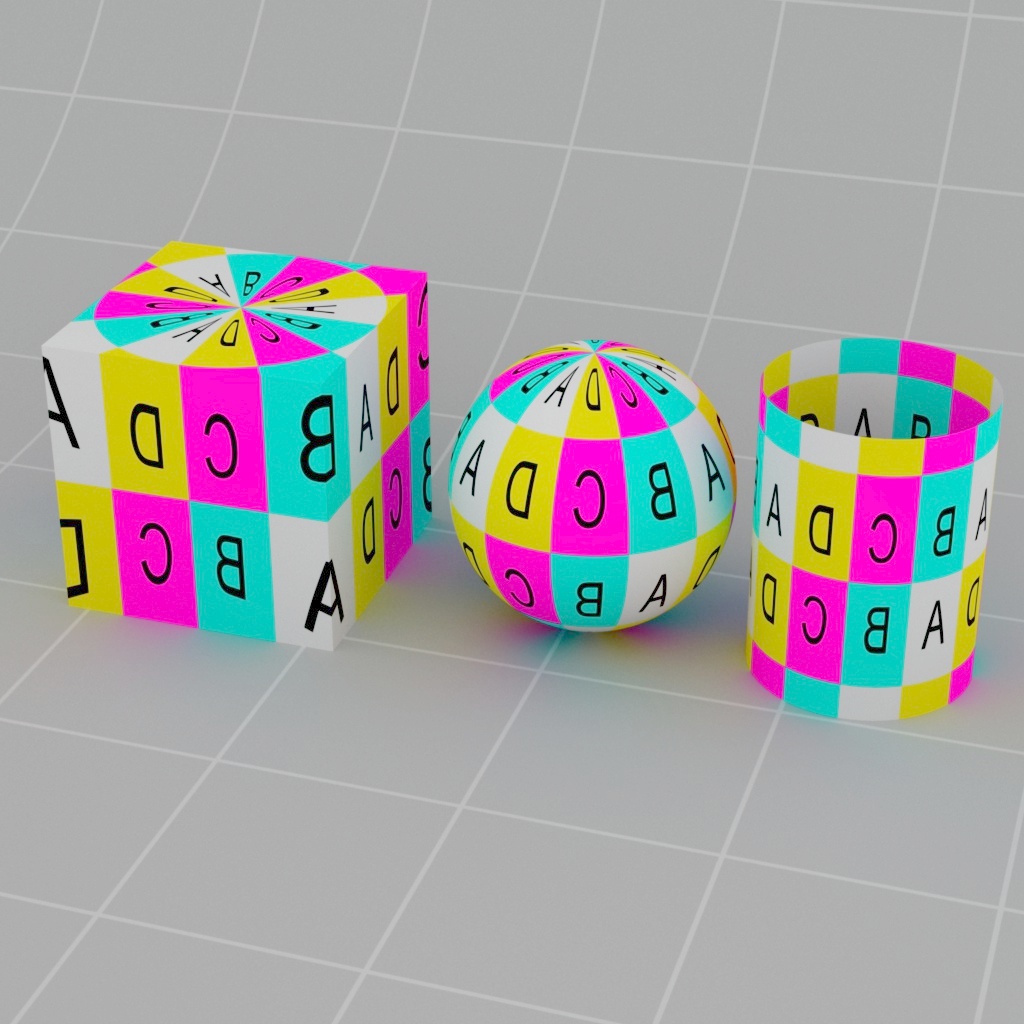

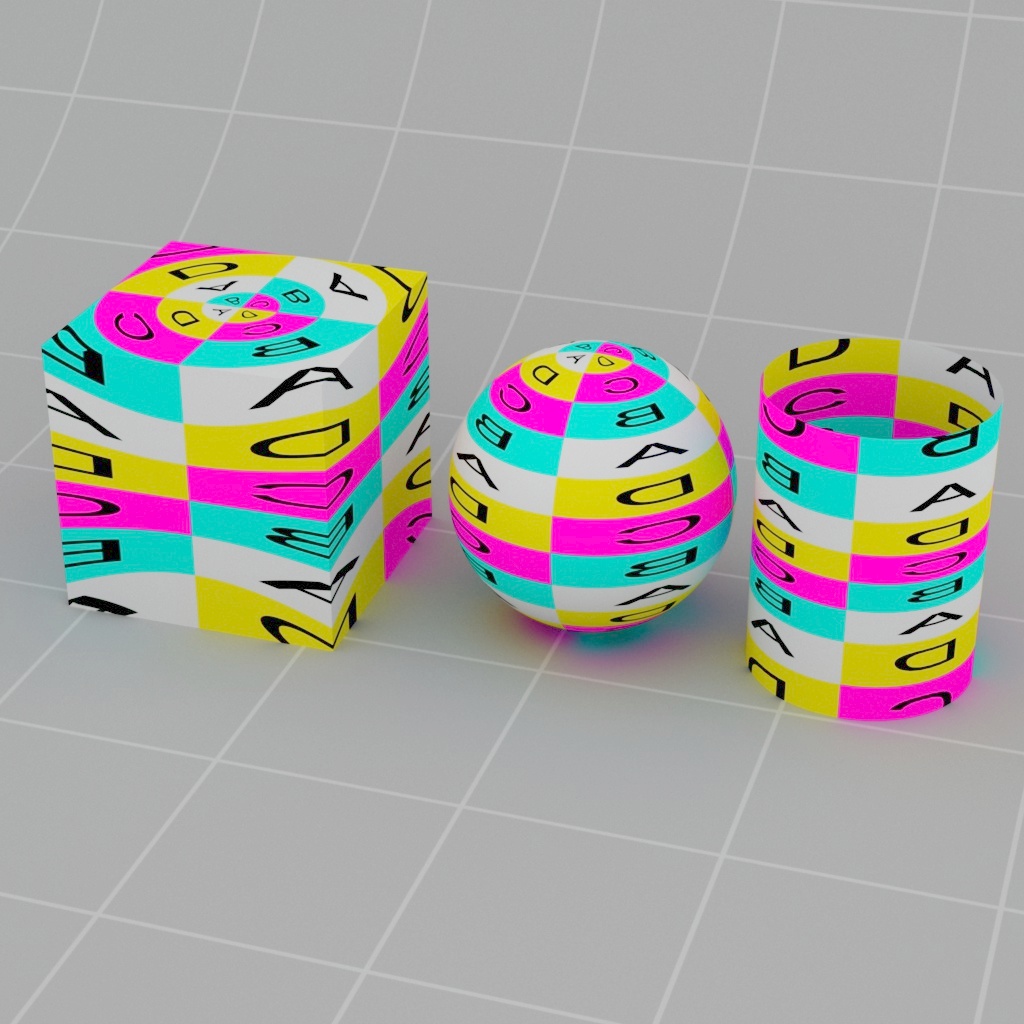

Scale U, V: 1, 1	3, 1	1, 3

Offset

Sets the 2D translation of the texture.

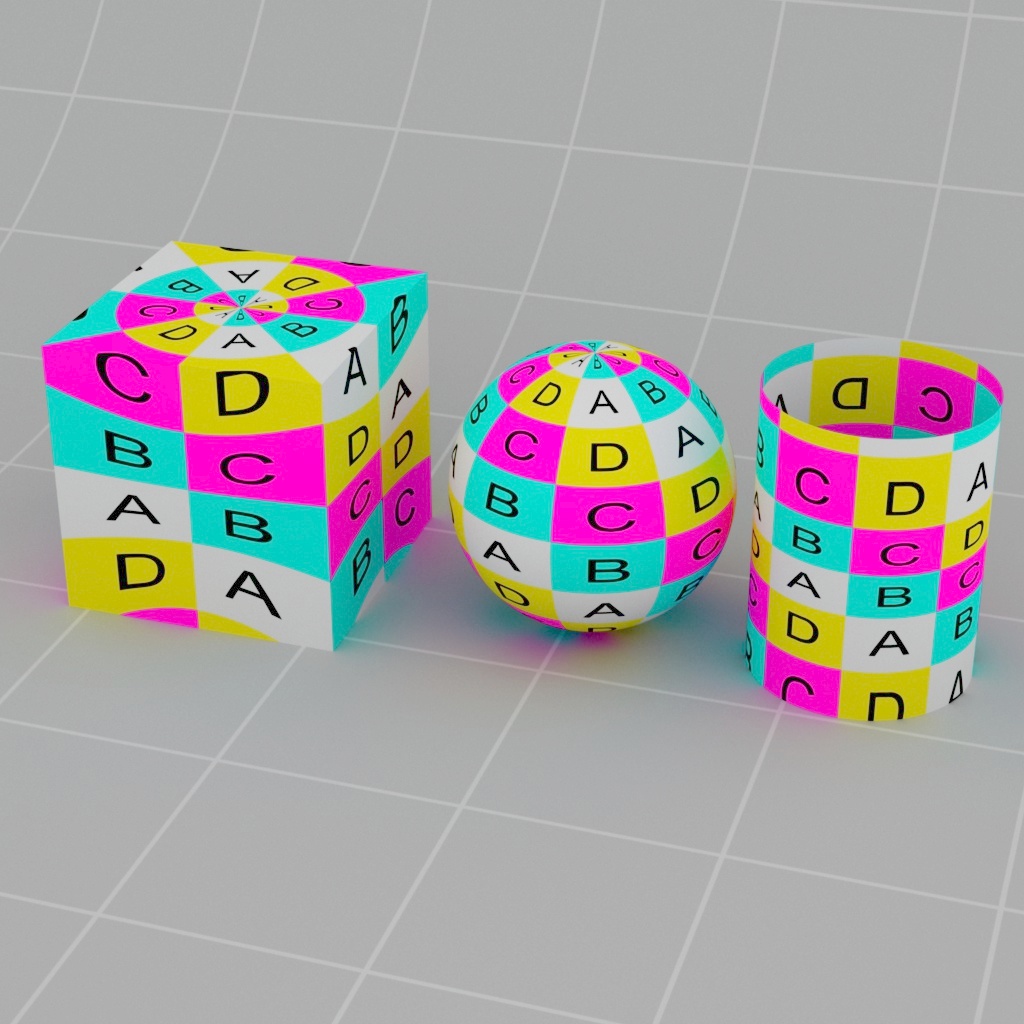

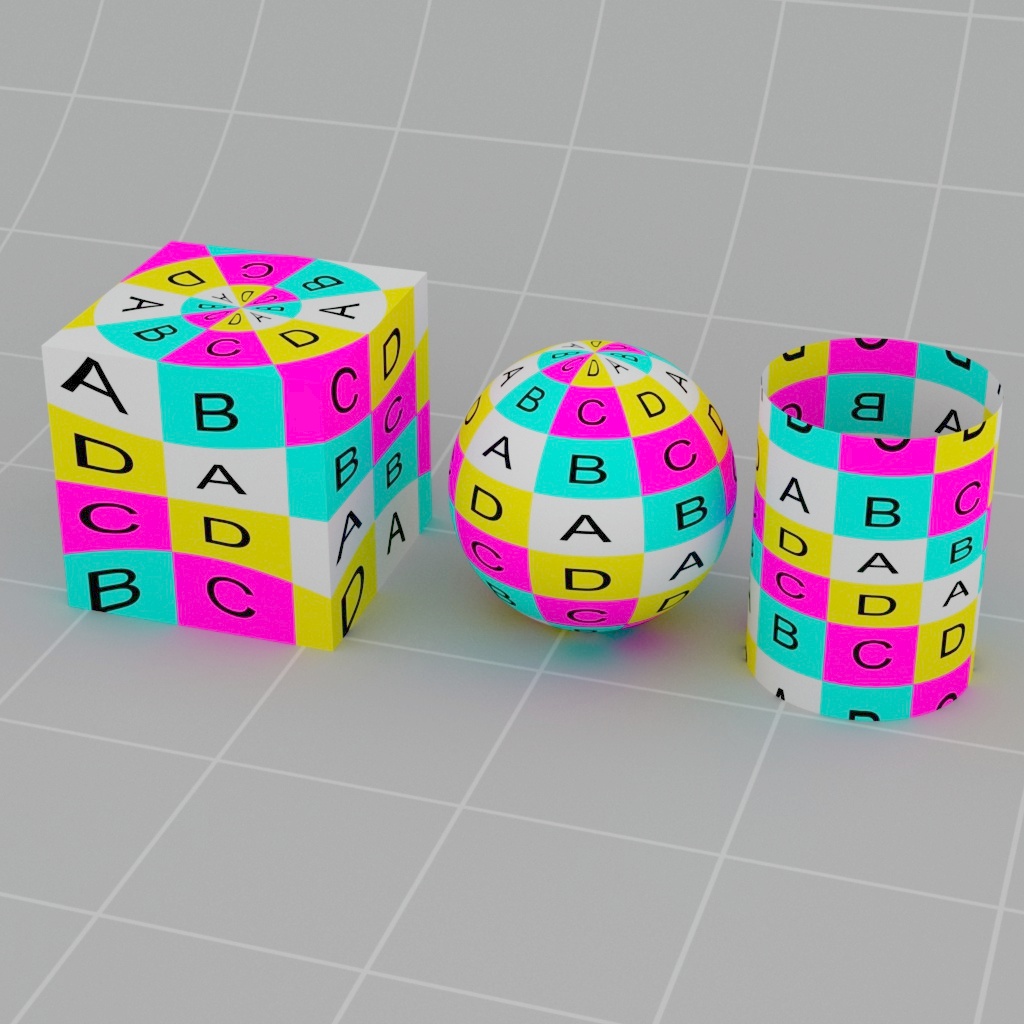

Offset U, V: 0, 0	0.1, 0	0, 0.1

Rotate

Sets the 2D rotation of the texture.

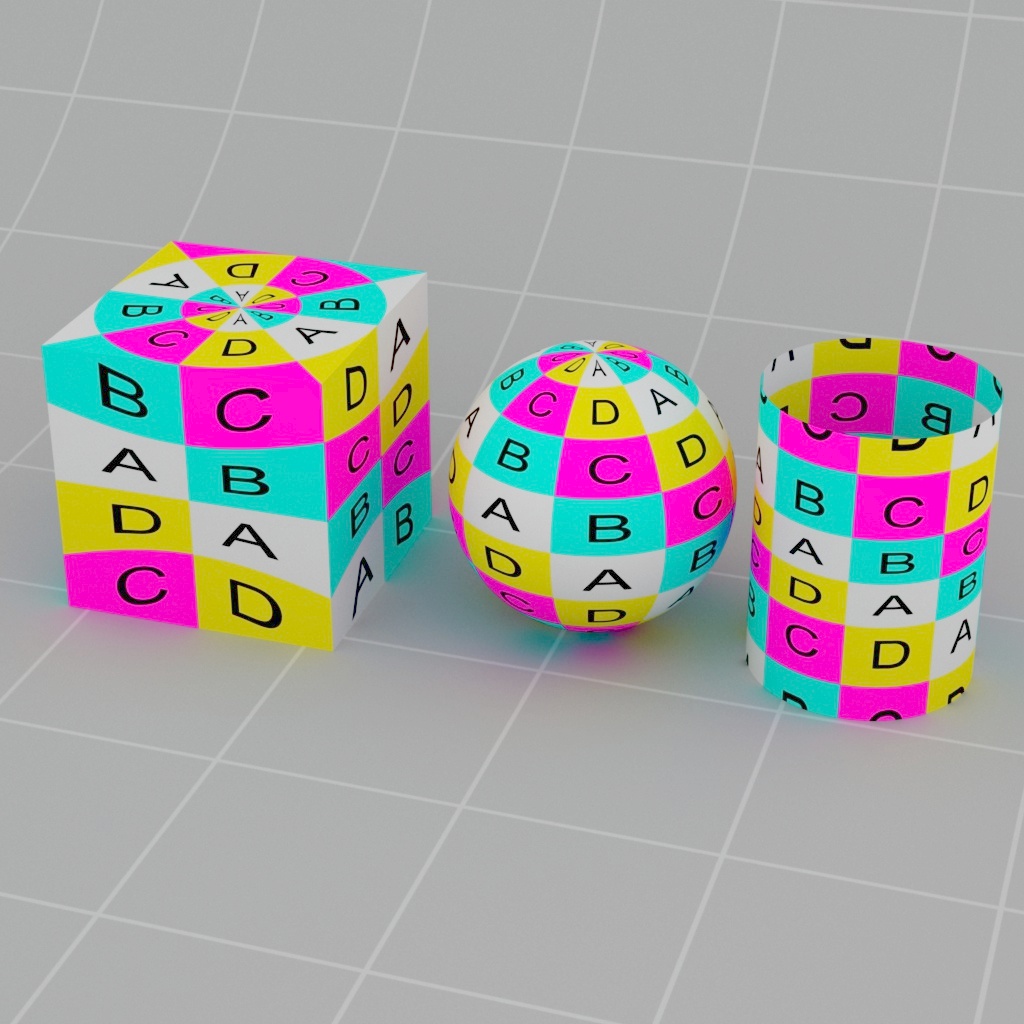

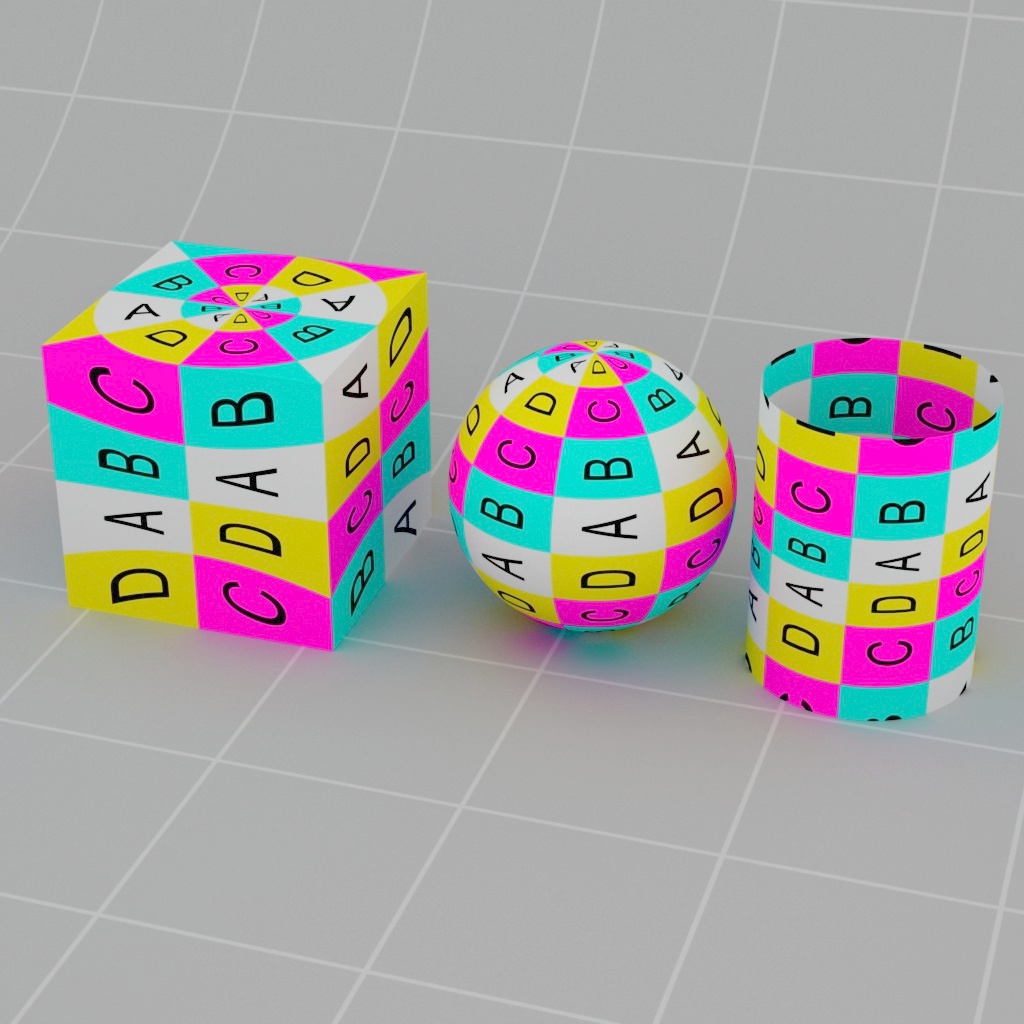

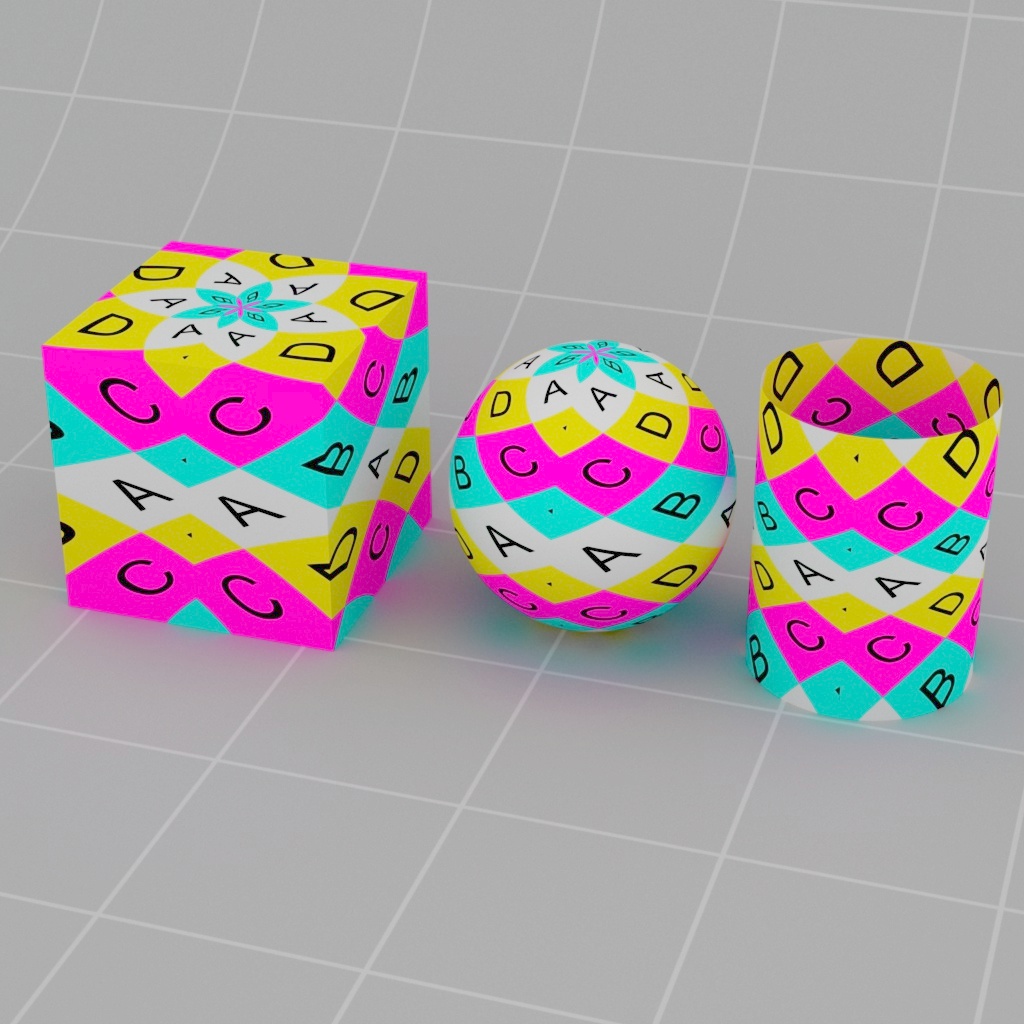

Rotate: 0	45	90
