The redshiftCmdLine tool

How To Export Scenes
Arguments
Example: Overriding the path of the final rendered images
Example: Dumping the list of render options
Example: Overriding render options

How To Export Scenes

Exporting a scene from a 3d app is very similar to exporting a Redshift proxy. In fact, a scene file is a proxy file! Its only difference with a regular proxy file is that it contains not only shaders, geometry and lights but also the current camera, global render options and AOV setup.

To export a scene proxy file from Softimage, you will need to configure your scene's archive settings.

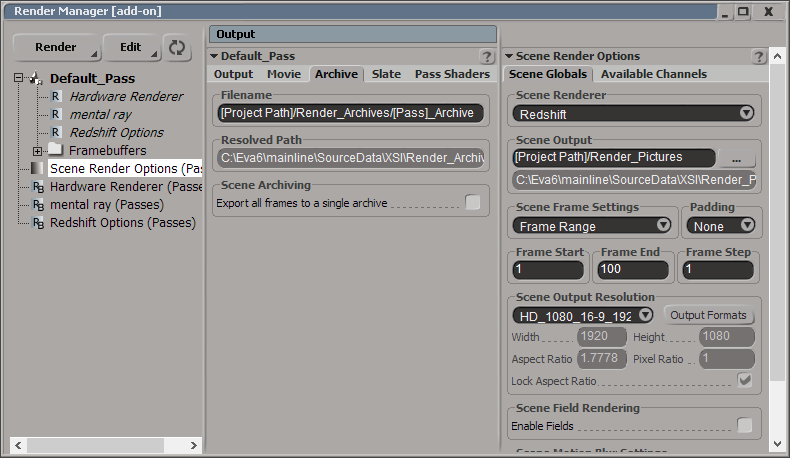

First, you need to ensure that Redshift is the current scene renderer. Then, you can configure the filename of the final .rs file via the Archive Filename box in the Render Manager, as shown below

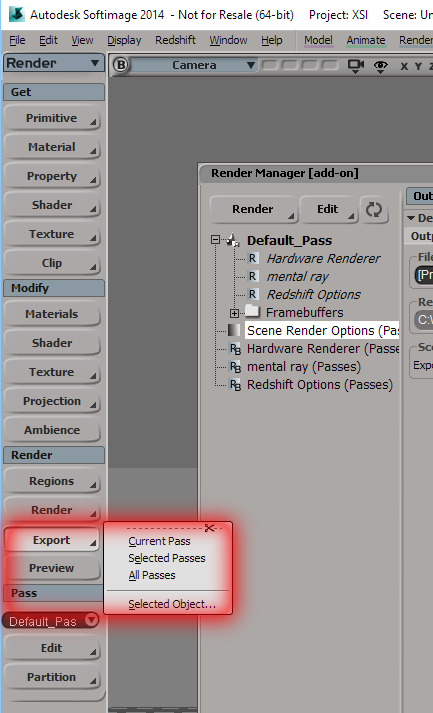

Once the above are done, you can export your scene via Softimage's Export button, as shown below. This will generate one or more (if you're exporting an animation) .rs files.

Arguments

To see a list of available arguments, please run redshiftCmdLine without any arguments.

Redshift Command-Line Renderer (version 2.6.10 - API: 2601)
Copyright 2017 Redshift Rendering Technologies
Not enough parameters
Usage:
  redshiftCmdLine scenefile [-oip PATH] [-opbp PATH] [-oro FILENAME]
                  [-gpu N] [-cachepath PATH] [-texturecachebudget N]
 or
  redshiftCmdLine -listrenderoptions
 or
  redshiftCmdLine -fileinfo proxyFilename
 or
  redshiftCmdLine -printdependencies proxyFilename
Parameters:
   scenefile is the .rs proxy file containing the scene to be rendered
   -oip followed by a path, overrides the image file paths
    This includes the paths of all the AOVs
    For example, if a scene normally renders images:
      z:\myprojectpath\images\myscene.exr
      z:\myprojectpath\images\myscene.diffuseLighting.exr
    You can redirect them to c:\myfolder by doing:
      redshiftCmdLine test.rs -oip c:\myfolder
    This will produce images:
      c:\myfolder\myscene.exr
      c:\myfolder\myscene.diffuseLighting.exr
   -opbp followed by a path, overrides the point-based technique file paths
    This includes the photon mapping, irradiance point cloud, irradiance cache
    and subsurface scattering generated or loaded files
    For example, say a scene produces an irradiance point cloud file at:
      z:\myprojectpath\pointcloudfiles\irradiance_pointcloud_auto.234.rsmap
    You can redirect the point cloud files go to c:\myfolder by doing:
      redshiftCmdLine test.rs -opbp c:\myfolder
    This will produce the file:
      c:\myfolder\irradiance_pointcloud_auto.234.rsmap
   -ores followed by a resolution of the form <w>x<h>, overrides the output resolution
    For example, to render the images in 1920x1080 resolution do:
      redshiftCmdLine test.rs -ores 1920x1080
   -oro followed by a filename, overrides render options using a text file
    The text file should contain option name-value pairs on each line, for example:
      UnifiedMaxSamples 1500
      UnifiedFilterSize 3.4
      ProgressiveRenderingEnabled false
      MotionBlurEnabled true
      UnifiedFilterType RS_AAFILTER_MITCHELL
    To list the render options, use -listrenderoptions
   -gpu followed by the device ordinal N enables that GPU for rendering
    For example, to render scene 'test.rs' with the first two GPUs, do:
      redshiftCmdLine test.rs -gpu 0 -gpu 1
   -cachepath followed by a PATH, sets the cache path folder
    The default Windows cache folder is '%LOCALAPPDATA%\Redshift\Cache'
    The default Linux cache folder is '$REDSHIFT_LOCALDATAPATH/cache'
   -texturecachebudget sets the texture cache size (in megabytes)
    For example, to render scene 'test.rs' and set the tex cache to 20GB, do:
      redshiftCmdLine test.rs -texturecachebudget 20000
   -listrenderoptions lists the available render options and exits
   -crop followed by cropOffsetX cropOffsetY cropWidth and cropHeight in pixels sets
    a custom cropped region to be rendered/n    For example, to set the crop region to (10,10) - (30, 30), do:
      redshiftCmdLine test.rs -crop 10 10 20 20
   -fileinfo followed by the proxy path, prints out various bits of
    information about the proxy file
   -printdependencies followed by the proxy path, prints out a list of
    the files referenced by this proxy

Example: Overriding the path of the final rendered images

When rendering 3d-app-exported scene file with redshiftCmdLine, the rendered images will be saved in the path chosen in the 3d app.
This, however, this can be undesirable because that path might be pointing to a folder that doesn't exist in the computer running redshiftCmdLine!
Let's assume that our scene proxy file "myscene.rs" normally renders these two images in a network folder (drive "z").

z:\myprojectpath\images\myscene.exr z:\myprojectpath\images\myscene.diffuseLighting.exr

If drive "z" is not accessible from the computer we're currently rendering from, we can redirect the images to c:\myfolder via the -oip argument as shown below:
redshiftCmdLine myscene.rs -oip c:\myfolder
Doing so will produce images:

c:\myfolder\myscene.exr c:\myfolder\myscene.diffuseLighting.exr

Example: Dumping the list of render options

Running redshiftCmdLine with the -listrenderoptions argument will list the available render options, as shown below.

redshiftCmdLine -listrenderoptions

Num available options: 200
        0: FrameID (Type: uint)
        1: BlockRenderingOrder (Type: string)
                RS_BLOCKRENDERINGORDER_SCANLINE_X - Horizontal
                RS_BLOCKRENDERINGORDER_SPIRAL - Spiral
                RS_BLOCKRENDERINGORDER_HILBERT - Hilbert
        2: BlockSize (Type: uint)
        3: ProgressiveRenderingEnabled (Type: bool)
        4: ProgressiveRenderingNumPasses (Type: uint)
        5: ProgressiveRenderingDownrezRate (Type: uint)
        6: UnifiedMinSamples (Type: uint)
        7: UnifiedMaxSamples (Type: uint)
        8: UnifiedAdaptiveErrorThreshold (Type: float)
        9: UnifiedFilterType (Type: string)
                RS_AAFILTER_BOX - Box
                RS_AAFILTER_TRIANGLE - Triangle
                RS_AAFILTER_GAUSS - Gauss
                RS_AAFILTER_MITCHELL - Mitchell
                RS_AAFILTER_LANCZOS - Lanczos
        10: UnifiedFilterSize (Type: float)
        11: UnifiedMaxOverbright (Type: float)
        12: UnifiedDebugDrawSamples (Type: bool)
        13: UnifiedDisableDivision (Type: bool)
        14: UnifiedRandomizePattern (Type: bool)
        15: MotionBlurEnabled (Type: bool)
        16: MotionBlurDeformationEnabled (Type: bool)
        17: MotionBlurNumTransformationSteps (Type: uint)
        18: MotionBlurNumDeformationSteps (Type: uint)
        19: MotionBlurFrameDuration (Type: float)
        20: MotionBlurShutterStart (Type: float)
        21: MotionBlurShutterEnd (Type: float)
        22: MotionBlurShutterPosition (Type: string)
                RS_MOTIONBLUR_SHUTTERPOSITION_CENTERONFRAME - Center on frame
                RS_MOTIONBLUR_SHUTTERPOSITION_STARTONFRAME - Start on frame
                RS_MOTIONBLUR_SHUTTERPOSITION_ENDONFRAME - End on frame
        23: MotionBlurShutterEfficiencyType (Type: string)
                RS_MOTIONBLUR_SHUTTEREFFICIENCYTYPE_TRAPEZOIDAL - Trapezoidal
                RS_MOTIONBLUR_SHUTTEREFFICIENCYTYPE_LOOKUPTABLE - Lookup table
        24: MotionBlurShutterEfficiencyForTrapezoidal (Type: float)
        25: DenoiseEngine (Type: string)
                RS_DENOISEENGINE_NONE - None
                RS_DENOISEENGINE_ALTUS_SINGLEPASS - Altus single pass
                RS_DENOISEENGINE_ALTUS_DUALPASS - Altus dual pass
                RS_DENOISEENGINE_OPTIX - OptiX
        26: DenoiseAltusKC1 (Type: float)
        27: DenoiseAltusKC2 (Type: float)
        28: DenoiseAltusKC4 (Type: float)
        29: DenoiseAltusKF (Type: float)
        30: DenoiseAutoCreateAovs (Type: bool)
        31: DenoiseSaveBuffers (Type: bool)
        32: Do8BitQuantizationAndDithering (Type: bool)
        33: MaxTraceDepthReflection (Type: uint)
        34: MaxTraceDepthRefraction (Type: uint)
        35: MaxTraceDepthCombined (Type: uint)
        36: MPWHairEnabled (Type: bool)
        37: MPWHairAutoThreshold (Type: bool)
        38: MPWHairThreshold (Type: float)
        39: MPWHairTraceDepth (Type: uint)
        40: RussianRouletteImportanceThreshold (Type: float)
        41: RussianRouletteFalloff (Type: float)
        42: ImportanceEnable (Type: bool)
        43: DirectLightingShadowCutOffThreshold (Type: float)
        44: DiffuseSamplingCutOffThreshold (Type: float)
        45: ReflectionSamplingCutOffThreshold (Type: float)
        46: RefractionSamplingCutOffThreshold (Type: float)
        47: GlossyRayMaxOverbright (Type: float)
        48: DirectLightingCutOffThreshold (Type: float)
        49: SpecularEnable (Type: bool)
        50: ReflectionsEnable (Type: bool)
        51: RefractionsEnable (Type: bool)
        52: SubsurfaceScatteringEnable (Type: bool)
        53: EmissionEnable (Type: bool)
        54: TessellationDisplacementEnable (Type: bool)
        55: EnableMaterialsMaxCombinedOverrides (Type: bool)
        56: DomeLightsAffectedByRefractionEnable (Type: bool)
        57: AreaLightsAffectedByRefractionEnable (Type: bool)
        58: ReflectSamplesEnabled (Type: bool)
        59: ReflectSamplesMode (Type: uint)
        60: ReflectSamplesCount (Type: uint)
        61: ReflectSamplesScale (Type: float)
        62: RefractSamplesEnabled (Type: bool)
        63: RefractSamplesMode (Type: uint)
        64: RefractSamplesCount (Type: uint)
        65: RefractSamplesScale (Type: float)
        66: AOSamplesEnabled (Type: bool)
        67: AOSamplesMode (Type: uint)
        68: AOSamplesCount (Type: uint)
        69: AOSamplesScale (Type: float)
        70: LightSamplesEnabled (Type: bool)
        71: LightSamplesMode (Type: uint)
        72: LightSamplesCount (Type: uint)
        73: LightSamplesScale (Type: float)
        74: VolumeSamplesEnabled (Type: bool)
        75: VolumeSamplesMode (Type: uint)
        76: VolumeSamplesCount (Type: uint)
        77: VolumeSamplesScale (Type: float)
        78: SingleScatteringSamplesEnabled (Type: bool)
        79: SingleScatteringSamplesMode (Type: uint)
        80: SingleScatteringSamplesCount (Type: uint)
        81: SingleScatteringSamplesScale (Type: float)
        82: MultipleScatteringSamplesEnabled (Type: bool)
        83: MultipleScatteringSamplesMode (Type: uint)
        84: MultipleScatteringSamplesCount (Type: uint)
        85: MultipleScatteringSamplesScale (Type: float)
        86: PrimaryGIEngine (Type: string)
                RS_GIENGINE_NONE - None
                RS_GIENGINE_PHOTON_MAPPING - Photon mapping
                RS_GIENGINE_IRRADIANCE_POINT_CLOUD - Irradiance point cloud
                RS_GIENGINE_IRRADIANCE_CACHE - Irradiance cache
                RS_GIENGINE_BRUTE_FORCE - Brute force
        87: SecondaryGIEngine (Type: string)
                RS_GIENGINE_NONE - None
                RS_GIENGINE_PHOTON_MAPPING - Photon mapping
                RS_GIENGINE_IRRADIANCE_POINT_CLOUD - Irradiance point cloud
                RS_GIENGINE_IRRADIANCE_CACHE - Irradiance cache
                RS_GIENGINE_BRUTE_FORCE - Brute force
        88: NumGIBounces (Type: uint)
        89: ConserveGIReflectionEnergy (Type: bool)
        90: PhotonGIEnable (Type: bool)
        91: PhotonCausticsEnable (Type: bool)
        92: PhotonMode (Type: string)
                RS_PHOTON_MODE_REBUILD - Rebuild
                RS_PHOTON_MODE_LOAD - Load
                RS_PHOTON_MODE_REBUILD_DONT_SAVE - Rebuild (don't save)
        93: PhotonFilename (Type: string)
        94: PhotonFirstBounceIDToUse (Type: uint)
        95: PhotonMaxTraceDepthReflection (Type: uint)
        96: PhotonMaxTraceDepthRefraction (Type: uint)
        97: PhotonMaxTraceDepthCombined (Type: uint)
        98: PhotonGISearchRadius (Type: float)
        99: PhotonGIMaxNumToGather (Type: uint)
        100: PhotonCausticsSearchRadius (Type: float)
        101: PhotonCausticsMaxNumToGather (Type: uint)
        102: PhotonUsePerPhotonIrradiance (Type: bool)
        103: PhotonDebugDrawPoints (Type: bool)
        104: BruteForceGINumRays (Type: uint)
        105: IrradiancePointCloudMode (Type: string)
                RS_IRRADIANCE_POINT_CLOUD_MODE_REBUILD - Rebuild
                RS_IRRADIANCE_POINT_CLOUD_MODE_LOAD - Load
                RS_IRRADIANCE_POINT_CLOUD_MODE_REBUILD_PREPASSONLY - Rebuild (prepass only)
                RS_IRRADIANCE_POINT_CLOUD_MODE_REBUILD_DONT_SAVE - Rebuild (don't save)
        106: IrradiancePointCloudFilename (Type: string)
        107: ShowIrradiancePointCloudCalculation (Type: bool)
        108: IrradiancePointCloudScreenRadius (Type: uint)
        109: IrradiancePointCloudNumSamplesPerPixel (Type: uint)
        110: IrradiancePointCloudFilterSize (Type: float)
        111: IrradiancePointCloudRetraceThreshold (Type: float)
        112: IrradiancePointCloudDebugDrawPoints (Type: bool)
        113: IrradianceCacheMode (Type: string)
                RS_IRRADIANCE_CACHE_MODE_REBUILD - Rebuild
                RS_IRRADIANCE_CACHE_MODE_LOAD - Load
                RS_IRRADIANCE_CACHE_MODE_REBUILD_PREPASSONLY - Rebuild (prepass only)
                RS_IRRADIANCE_CACHE_MODE_REBUILD_DONT_SAVE - Rebuild (don't save)
        114: IrradianceCacheFilename (Type: string)
        115: IrradianceCacheFlythroughMode (Type: bool)
        116: ShowIrradianceCacheCalculation (Type: bool)
        117: IrradianceCacheUseSeparatePointsForSecondaryRays (Type: bool)
        118: IrradianceCacheMinRate (Type: int)
        119: IrradianceCacheMaxRate (Type: int)
        120: IrradianceCacheColorThreshold (Type: float)
        121: IrradianceCacheDistanceThreshold (Type: float)
        122: IrradianceCacheNormalThreshold (Type: float)
        123: IrradianceCacheMinDetail (Type: float)
        124: IrradianceCacheRadiusFactor (Type: float)
        125: IrradianceCacheNumRays (Type: uint)
        126: IrradianceCacheAdaptiveAmount (Type: float)
        127: IrradianceCacheAdaptiveErrorThreshold (Type: float)
        128: IrradianceCacheNumSmoothingPasses (Type: uint)
        129: IrradianceCacheDebugDrawPoints (Type: bool)
        130: SubsurfaceScatteringMode (Type: string)
                RS_SUBSURFACE_SCATTERING_MODE_REBUILD - Rebuild
                RS_SUBSURFACE_SCATTERING_MODE_LOAD - Load
                RS_SUBSURFACE_SCATTERING_MODE_REBUILD_PREPASSONLY - Rebuild (prepass only)
                RS_SUBSURFACE_SCATTERING_MODE_REBUILD_DONT_SAVE - Rebuild (don't save)
        131: SubsurfaceScatteringFilename (Type: string)
        132: SubsurfaceScatteringRate (Type: int)
        133: SubsurfaceScatteringInterpolationQuality (Type: float)
        134: SubsurfaceScatteringNumGIRays (Type: uint)
        135: SubsurfaceScatteringOverrideMode (Type: string)
                RS_SUBSURFACE_SCATTERING_OVERRIDEMODE_NONE - None
                RS_SUBSURFACE_SCATTERING_OVERRIDEMODE_RAYTRACED - Ray-Traced
                RS_SUBSURFACE_SCATTERING_OVERRIDEMODE_POINTBASED - Point-Based
        136: TextureSamplingTechnique (Type: string)
                RS_TEXTURESAMPLINGTECHNIQUE_FELINE - Anisotropic
                RS_TEXTURESAMPLINGTECHNIQUE_BILINEAR - Bilinear
                RS_TEXTURESAMPLINGTECHNIQUE_POINT - Point
        137: CopyToTextureCache (Type: bool)
        138: EnableAutomaticReprocessingOfPreConvertedTextures (Type: bool)
        139: EnableDetailedTextureProcessingReporting (Type: bool)
        140: BumpMapBias (Type: float)
        141: PhotometricUnitsToMeterScale (Type: float)
        142: PhotometricCandelaMetersSquaredFactor (Type: float)
        143: DisableShadowRayBiasing (Type: bool)
        144: DoCompleteRTHConstruction (Type: bool)
        145: RTHMaxNumLeafPrimitives (Type: uint)
        146: RTHPolygonSplitThreshold (Type: float)
        147: AbortOnLicenseFail (Type: bool)
        148: AbortOnMissingResource (Type: bool)
        149: RenderInCameraSpace (Type: bool)
        150: FreezeTessellation (Type: bool)
        151: EnableLegacyVolumeGridEmission (Type: bool)
        152: DisableBumpSmoothingOnLightingSilhouettes (Type: bool)
        153: HairTessellationMode (Type: string)
                RS_HAIRTESSELLATIONMODE_NONE - None
                RS_HAIRTESSELLATIONMODE_4 - 4-steps
                RS_HAIRTESSELLATIONMODE_8 - 8-steps
        154: SuppressTiledTextureWarnings (Type: bool)
        155: SuppressTextureConversionMessage (Type: bool)
        156: EnableSecondaryRayClampingOnFirstBounce (Type: bool)
        157: EnableLegacyCutOffsRules (Type: bool)
        158: EnableLegacyNonInverseSquareLightDecay (Type: bool)
        159: EnableLegacyBumpSamplingTechnique (Type: bool)
        160: GammaCorrectColorInputs (Type: bool)
        161: GammaCorrectColorAttributes (Type: string)
                RS_GAMMACORRECTATTRIBUTES_NONE - None
                RS_GAMMACORRECTATTRIBUTES_VERTEXCOLORS - Vertex Colors
                RS_GAMMACORRECTATTRIBUTES_USERDATACOLORS - User Data Colors
                RS_GAMMACORRECTATTRIBUTES_ALL - All
        162: AutomaticMemoryManagement (Type: bool)
        163: GPUMemoryInactivityTimeout (Type: uint)
        164: PercentageOfGPUMemoryToUse (Type: uint)
        165: MaxNumGPUMBForIrradiancePointCloudHierarchy (Type: uint)
        166: MaxNumGPUMBForForICPHierarchy (Type: uint)
        167: PercentageOfFreeMemoryUsedForTextureCache (Type: uint)
        168: MaxNumGPUMBForTextureCache (Type: uint)
        169: NumGPUMBToReserveForRays (Type: uint)
        170: MaxNumCPUMBForTextureCache (Type: uint)
        171: EnableDebugCapture (Type: bool)
        172: EnableDebugCaptureShaderIntegrityCheck (Type: bool)
        173: EnableDetailedTextureSamplingStats (Type: bool)
        174: DisplacementDebugLevel (Type: uint)
        175: AOVDeepMergeMode (Type: string)
                RS_AOVDEEPMERGEMODE_Z - Z
                RS_AOVDEEPMERGEMODE_OBJECTID - ObjectID
        176: AOVDeepMergeZThreshold (Type: float)
        177: AOVMaxOverbright (Type: float)
        178: AOVMaxOverbrightEnable (Type: bool)
        179: AOVDisableImportanceOptimizations (Type: bool)
        180: AOVFixRawHaloArtifacts (Type: bool)
        181: VolLightingEnabled (Type: bool)
        182: VolLightingTint (Type: vector3)
        183: VolLightingFogAmbient (Type: vector3)
        184: VolLightingFogOrigin (Type: vector3)
        185: VolLightingFogNormal (Type: vector3)
        186: VolLightingApplyExposureCompensation (Type: bool)
        187: VolLightingFogHeight (Type: float)
        188: VolLightingFogHorizonBlur (Type: float)
        189: VolLightingScatteringCoefficient (Type: float)
        190: VolLightingExtinctionCoefficient (Type: float)
        191: VolLightingPhase (Type: float)
        192: VolLightingRayContributionEnvironment (Type: float)
        193: VolLightingRayContributionCamera (Type: float)
        194: VolLightingRayContributionReflection (Type: float)
        195: VolLightingRayContributionGI (Type: float)
        196: VolLightingReplaceAlphaOnEnvironment (Type: bool)
        197: ShadowLinkingMode (Type: string)
                RS_SHADOWLINKINGMODE_USELIGHTLINKS - Use light links
                RS_SHADOWLINKINGMODE_USESHADOWLINKS - Use shadow links
                RS_SHADOWLINKINGMODE_ALL - All
        198: MaterialOverrideEnabled (Type: bool)
        199: MaterialOverrideColor (Type: vector3)

Example: Overriding render options

We can override render options through the -oro argument.
Let's assume we want to force the unified min/max settings to min:16 and max:64.
We would first need to create a text file (in this case: myrenderoptionsoverrides.txt) containing the following two lines:

UnifiedMinSamples 16 UnifiedMaxSamples 64

Then, we'd pass this text file to redshiftCmdLine as follows:

redshiftCmdLine myscene.rs -oro myrenderoptionoverrides.txt
