Object Properties

Text Spline

Enter the text into the Text box. You can enter up to multiple lines of text — press Return to start a new line. The text appears in the Viewport as a spline primitive when click outside the text box.

Font

TrueType, OpenType and PostscriptFonts can all be used in Cinema 4D. However the following restrictions do apply:

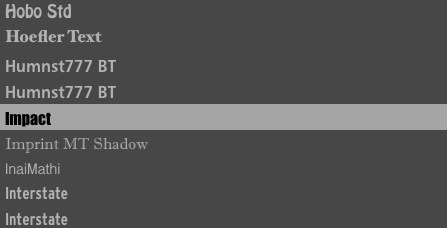

The font preview in the selection menu makes it easy to select the right font. You can also scroll up and down the list using the arrow keys or scroll wheel.

Align

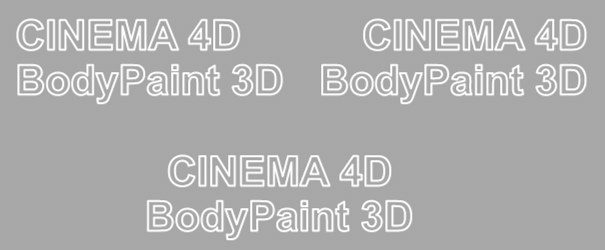

Set the text’s alignment to left-aligned, centered or right-aligned.

Tip:The following 3 parameters apply to the complete text whereby the Kerning settings affect individual letters and are used additively to these parameters.

Height[-∞..+∞m]

The height of the letters, in world coordinates.

Horizontal Spacing[-∞..+∞m]

With these command you can insert space between the characters.

Vertical Spacing[-∞..+∞m]

With these command you can insert space between the text lines.

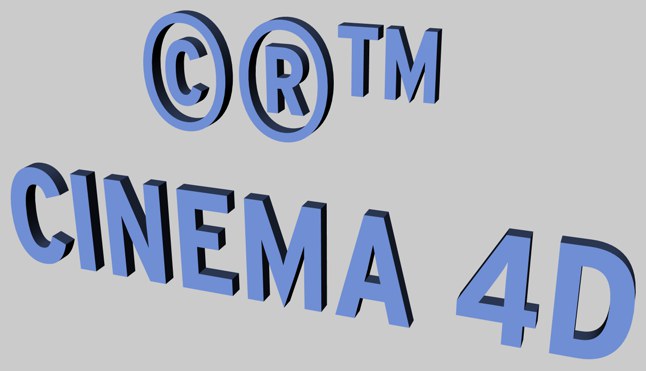

CINEMA 4D generates text objects as connected splines. Add depth to these objects using an Extrude object. Create an Extrude object and in the Object Manager, drag the name of the text spline onto the name of the Extrude object. Symbols can be used.

Some fonts are poorly designed and will have noticeable overlapping edges. CINEMA 4D cannot improve these faults. Always use high quality fonts for best results.

You can get a good result with 3D fonts by using the Bevel command on a font object and restricting the angle limit to approx. 20°.

Separate Letters

Activate this option. Now call up the Mesh / Convert / Make Editable function. A new object is created that has separate spline sub-objects for each letter of the text.

The object axis of the individual letter splines is located on the baseline of the selected character set.

This option makes sense and is very useful if, for example, you want to arrange a text (i.e. the individual letters) on a spline.

Kerning

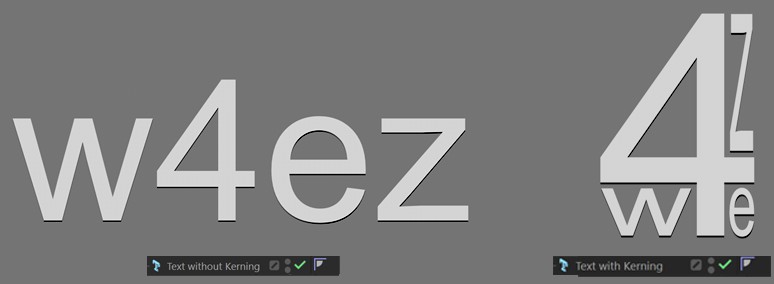

The Kerning settings let you define text size and spacing per letter. This should eliminate the need for external programs for making parametric modifications to text, e.g., if you want to adjust the spacing between the letters "A” and "V” (which is quite common). All modifications can be made interactively in the Viewport.

The following properties can be modified for a given letter (or for an entire text):

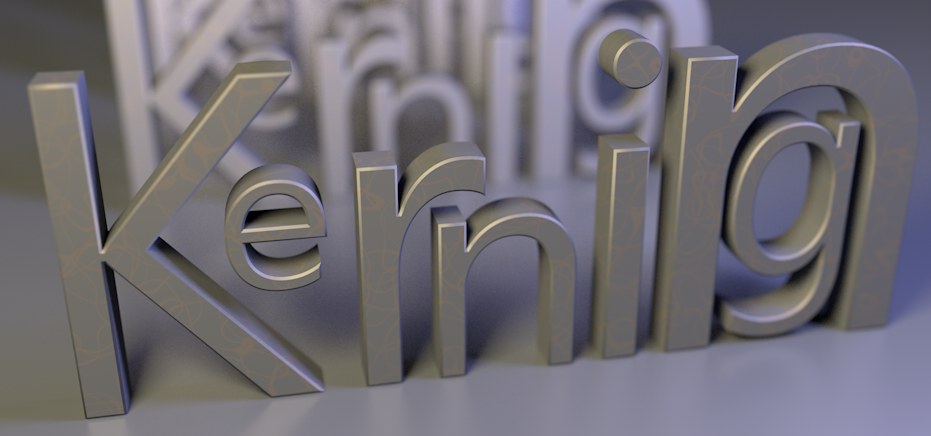

In the end you can come up with parametric creations like the one on the right:

How it Works

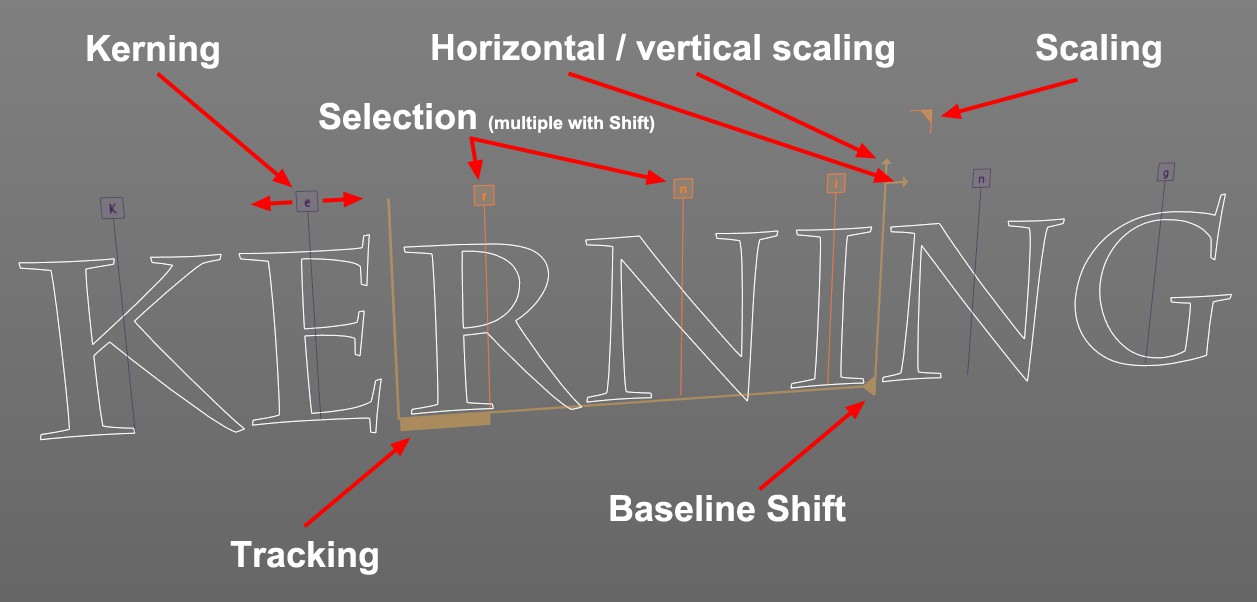

Enabling the Show 3D GUI option will display the following handles in the Viewport:

Any of the marked handles can be selected and dragged with the mouse.

Above each letter you will see a correspondingly marked square handle, which can be dragged (without Selection) to adjust the spacing to the left of the letter. Of course a Selection can also be used:

Letter selections can be made independent of the text itself and affect only those letters, i.e., if you select letters 5-9 and enter a different text, only letters 5-9 will be affected.

Dragging a handle – and pressing the following keys - will have the following effect:

Settings

3D Handles

Use this option to define whether or not the interactive 3D handles should be displayed in the Viewport. This option should be disabled as soon as you have finished fine-tuning the kerning of the text to avoid inadvertently modifying text properties at a later point.

The following parameters can also be adjusted interactively in the Viewport by using the corresponding handles (see above).

Start/End

These settings are numeric selections that you can normally define interactively in the Viewport (see above). However, it can be easier to modify these values in the Attribute Manager if, for example, the letter handles overlap. If you want to select the 2nd letter, enter 1 for Start and 2 for End. To select letters 3 to 6, enter 2 and 6, respectively.

Tip:These settings can be used to successively access all individual letters and their kerning parameters using and Iteration XPresso node.

Kerning / Tracking

Both settings basically have the same function in Cinema 4D with the exception that Tracking can be modified at any time in the Viewport without making a selection using the handles positioned above each letter. The Kerning setting – which is displayed as a single handle when multiple letters are selected – can be applied to multiple letters simultaneously.

Both settings are used to adjust the spacing to the left of each letter.

Horizontal / Vertical Scale

Use these settings to individually adjust letters’ horizontal and vertical scale.

Scale

This value defines the overall scaling of letters (taking the aforementioned values into consideration).

Baseline Shift

Use this setting to shift the position of letters up or down.

Reset All

Clicking this button will set all values back to their default values.

Reset Selected

Clicking this button will reset the values of all selected letters back to their default values.

Select All

Clicking this button will select all letters in the Attribute Manager’s Text field.

Tip:Note that the Kerning settings cannot be animated via normal keyframes for internal reasons. Animations can be done via XPresso where all Kerning settings can be accessed. Use the following Project as a reference:

Plane

Here you can define the layer on which the spline should come to rest.

Reverse

Enabling this option will reverse the point order of the spline (see also Spline Primitives.

Interpolation

Points[0..5000]

Angle[0..90°]

Here you set how the spline is to be subdivided during further processing. This is always important when you generate meshes with the help of generators. Depending on which type you select from the menu for Interpolation, you have further options.

Off

This type of interpolation uses the interpolation points of the spline directly and connects them via straight lines without setting additional intermediate points.

You cannot make entries in the fields for Points or Angle.

Natural

This type of interpolation divides the spline in such a way that a corresponding number of Points are used per interpolation point. The inserted points follow the natural course of the spline directly, i.e. they are closer together at support points than in between. The curve resulting from this interpolation does not necessarily pass through the interpolation points. If a spline has several segments, the value for Points applies to each interpolation point of each segment.

You cannot make any entries in the Angle field.

Uniform

This interpolation type divides the spline so that the selected number of Points is used for each interpolation point. The points are exactly the same distance apart. The curve resulting from this interpolation does not necessarily pass through the interpolation points. If a spline has several segments, the value for Points applies to each interpolation point of each segment.

You cannot make any entries in the Angle field.

NoteFor the two Interpolation types Natural and Uniform, the new number of points is calculated as follows:
Opened spline: ((Points + 1) * (number_of_base_points - 1)) +1
Closed spline: (Points + 1) * number_of_base_points

This means, for example, that an open spline with four support points and a Points value of 2 is divided into a total of ((2+1)*(4-1))+1 = 10 points. If you close this spline, (2+1)*4 = 12 points are used. This procedure prevents, for example, a spline from being split more roughly after it has been closed.

Adaptive

This type of interpolation always sets intermediate points if the angular deviation of the curve is greater than the value entered under Angle. The curve resulting from this interpolation passes exactly through the interpolation points. If a spline has several segments, the value for Angle applies to each segment.

In contrast to the other interpolation types, different interpolations result if you change the interpolation point sequence of the spline.

The subdivision, also known as Adaptive, produces the best results in rendering. This is therefore the default Interpolation method.

You cannot make any entries in the Points field.

Subdivided

Subdivided is similar to the Adaptive type. In addition, intermediate points are inserted until the segments in between are shorter than the length defined under Max Length. This does not necessarily mean that the point distances correspond exactly to Max Length. Smaller values lead to higher quality, but as is so often the case, they also have the disadvantages associated with high point counts (slower redraw speed in the editor, etc.).

This enables significantly better rendering quality, especially with deformed text. If you enter the same value for Max Length as for Size in the Extrude object (Caps tab, Regular Grid option activated), you will get fairly perfect cap areas and edges without shading errors, as the subdivisions of letters and their caps fit together and triangles do not have to be inserted arbitrarily to connect the two mesh elements.

On the left Adaptive, on the right Subdivided Interpolation in combination with a Formula deformation object. Note the clearly defined edges on the right-hand side of the illustration.

Max Length[0..+∞m]

This parameter, which is only effective in Subdivided Interpolation mode, controls the maximum spline segment length without an intermediate point (see above for Subdivided) must be inserted.
