Get Texel Density

A Definition: Texel and Texel Density

A Texel is a single unit of a texture as it corresponds to a point on a 3D surface, similar to how a pixel is a unit of a 2D image.

Texel Density (or short TD) is a measure of how many texture pixels (Texels) are applied per unit of 3D space, determining how detailed a surface appears.

The larger the UV polygons within a UV tile, the higher their Texel Density, and the more details and pixels from an assigned texture (Texels) can be mapped onto them. Similarly, the Texel Density also increases when a higher-resolution texture is loaded.
To ensure consistent texture quality when displayed on 3D objects, especially when objects use multiple UV islands in the UV unwrap, the average TD of selected polygons can be calculated and then transferred to other UV polygons, for example, using Set Texel Density (Selected). In practice, this results in the proportions of the UV islands being adjusted so that an identical density of texture pixels can be rendered.

Texel Density - What is it?

The so-called Texel Density is an important measure, particularly in the field of video games. It indicates how many texture pixels are projected per object surface. There are essentially 3 reasons to care about Texel Densities:

• Texture Resolution: If the Texel Density is too low, textures appear spongy when you approach them. If it is too large, the textures may appear crisp from close up, but you may be wasting valuable UV area.

• Texture Homogeneity: In a scene, objects stand out that have a completely different Texel Density than their surroundings. This can disturb the immersion in video games, for example. It is therefore important to use similar Texel Densities in a scene.

• Texture Efficiency: Video game engines tend to have limited memory and computing capacity, so it is important to keep the Texel Density as low as possible and still look good. This is why, for example, Texel Densities are defined for assets in video game productions, which employees must adhere to in order to ensure fast and high-quality texture display in all game situations.

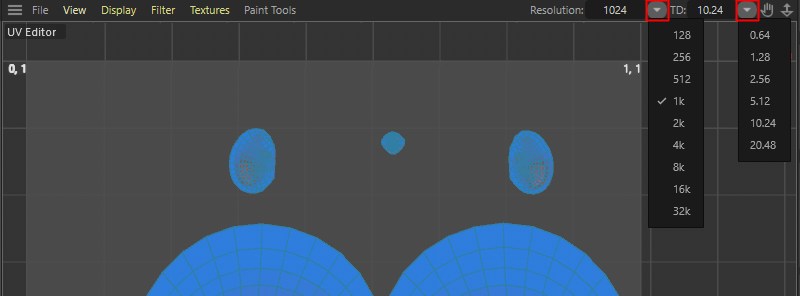

To calculate the Texel Density for the UV polygons within the UV tile and display it in color, you must specify two values: the texture Resolution and the target Texel Density you try to achieve. You can do this using the two value fields located at the top right of the UV Editor.

Resolution

A map target size in pixels can be freely set here.
You will find a small menu on the right where you can select one of the common texture sizes (e.g. 2k, 4k, 8k corresponding to 2048*2048, 4096*4096, 8192*8192 pixels - textures are usually square corresponding to a UV tile).

TD

You will find a small menu on the right where you can select one of the common Texel Densities. To give you a rough guide, in the video game sector, there are roughly 3 different types of game in which the camera can generally get more or less close to assets. Choose the following Texel Densities, for example:

• First person (games from the first person perspective): e.g. 10.24
• Third person (games where the camera is placed behind the character): e.g. 5.12
• Top Down (games from which you look at the action from above): e.g. 2.56 or smaller.

In general, the closer the camera is to the asset, the higher the Texel Density should be. In a first person shooter, for example, you can get as close as you like to an asset, which is why higher Texel Densities are required here.
