Point Object Field Layer

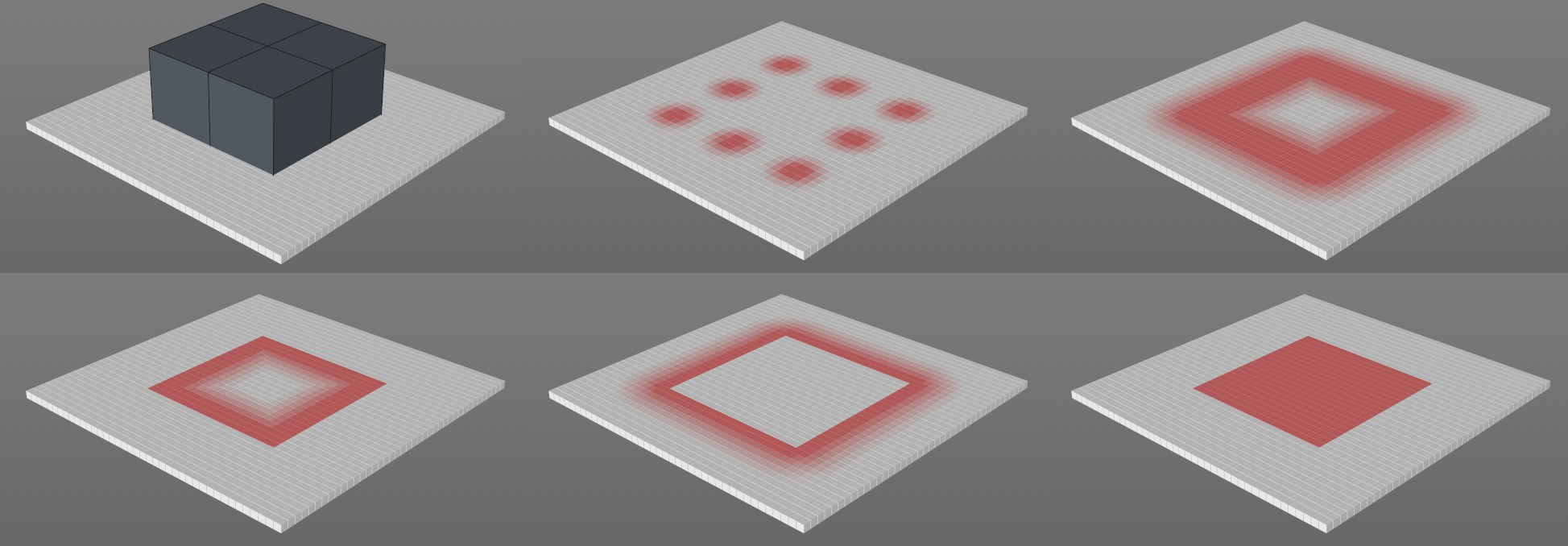

The cube shown at the top left acts as a point object in a Plain effector, which colors red according to its effect. This is followed by various modes and settings.
With this field, the field effect takes place at a certain distance around the object points/polygons or the surface curvature of an object or inside the (preferably) closed object.
Polygonal objects (or their generators) can be either:
- can be selected when calling up the point object in the view or in the Object Manager.
- or dragged and dropped directly into the field list.
Object names are transferred to the field list. You will then not find the point object under its name in the field list!
Example
