UV Context Projection


Overview

Scene by Saul Espinosa
Textures from PolyHaven.com		 Scene by Saul Espinosa
Ground texture from AmbientCG.com


The UV Context Projection is a powerful utility node that applies the same mapping across all the textures connected to a material. Most materials are built using a set of textures that only look good when they perfectly match up with each other. The UV Context Projection node makes it easy to adjust all textures and keep them in sync. This includes procedural textures that use UVs like the Redshift Tiles shader.

In addition, Hex tiling can be enabled for quick seamless texture tiling. Great for adding variation across large surfaces. Procedural textures are not compatible with Hex tiling.

Adjusting a material using UV Context Using Hex Tiling with UV Context
Textures from PolyHaven.com


All the textures can use an object's UV set or be switched to a number of other UV projections like Tri-Planar, Spherical, or Flat.

Changing the Projection type using UV Context
Textures from PolyHaven.com

The UV Context Projection node requires constant inputs. For example, you cannot drive the UV Context Projection node's Transform Offset with a Maxon Noise or Jitter node the way you can on a Texture Sampler.


Examples

How it works

The example graphs below use Cinema 4D screenshots but the structure and usage is compatible in all DCCs.

UV Context port: Direct or Downstream connections

Using a UV Context Projection node is as simple as connecting the OutContext to a node with a "UV Context" port.

There are two ways for a texture to receive texture mapping information, from either a direct connection or a downstream connection.

Thanks to downstream connections you don't need to manually sync each texture that should have the same mapping. That's because upstream textures are designed to automatically inherit UV Context information connected downstream in the shading graph. In the examples below, note how changing where the Context Projection node is connected affects which nodes are considered upstream. In the second example, there is no UV Context Projection node downstream from the displacement texture so it is no longer affected.

Downstream connections

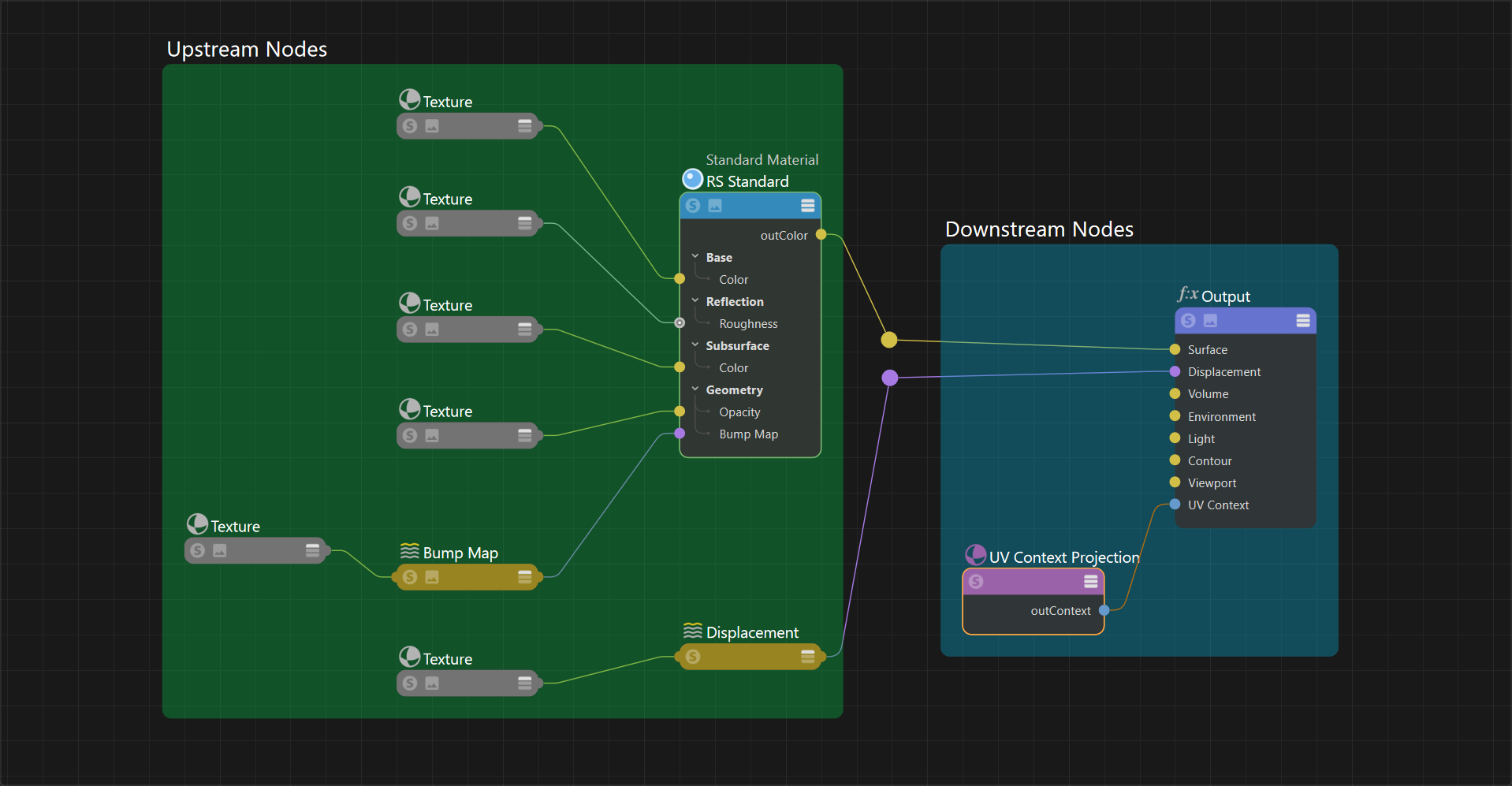

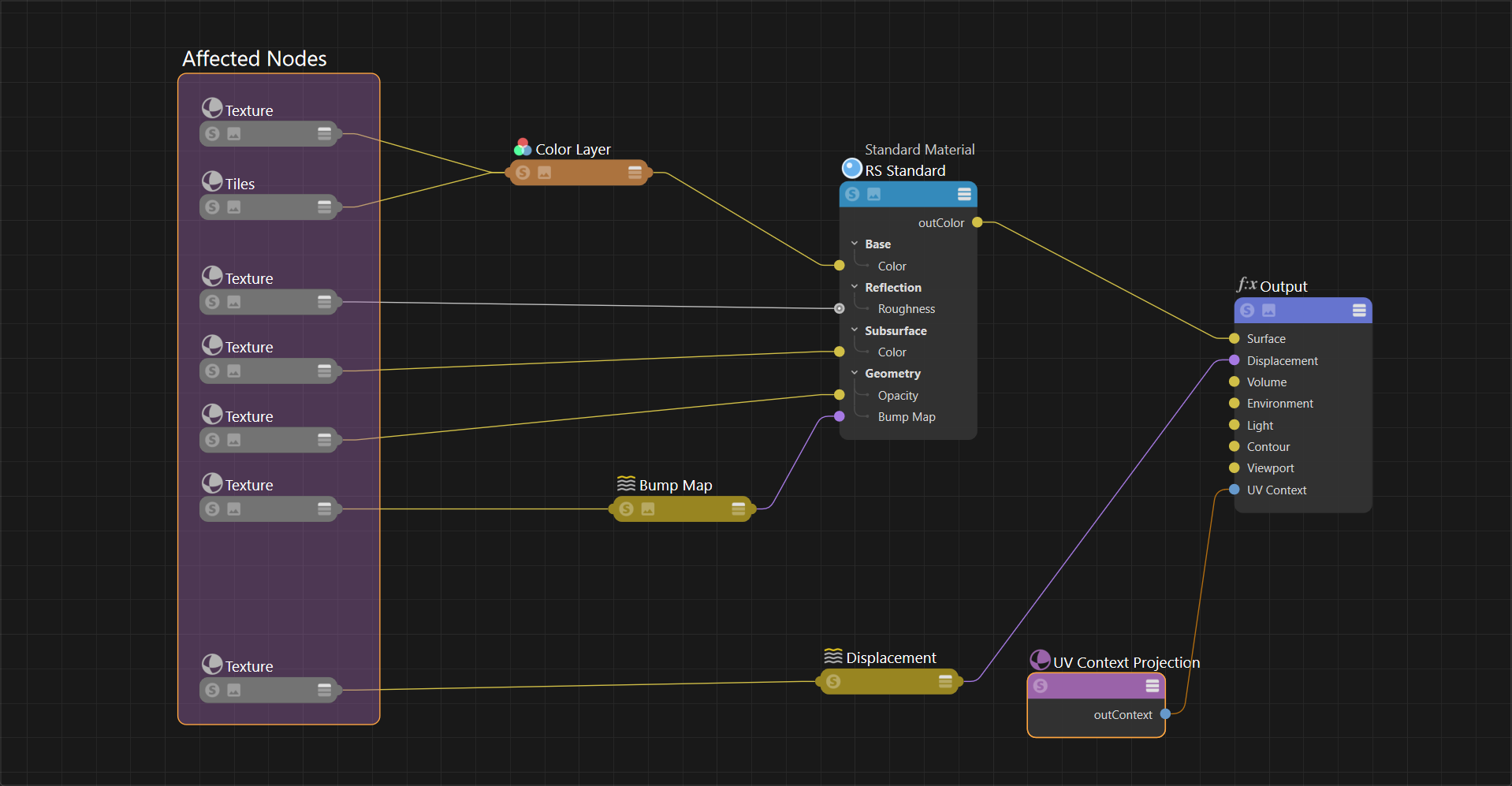

UV Context Projection connected to the Material Output node
All textures connected to the Material and Displacement shaders are upstream		 Downstream connections

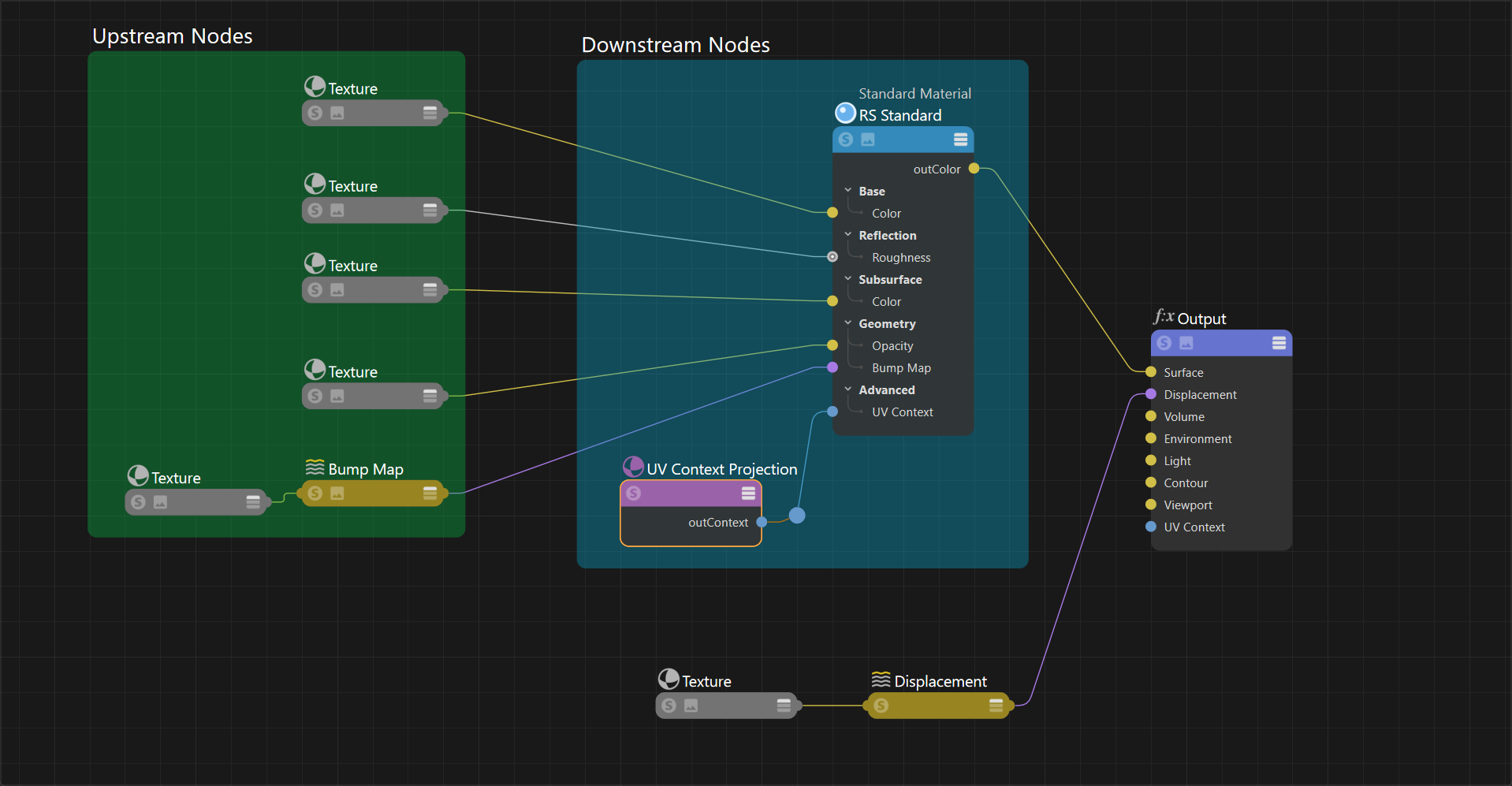

UV Context Projection connected to the Material shader node
Only the textures connected to the Material shader are upstream

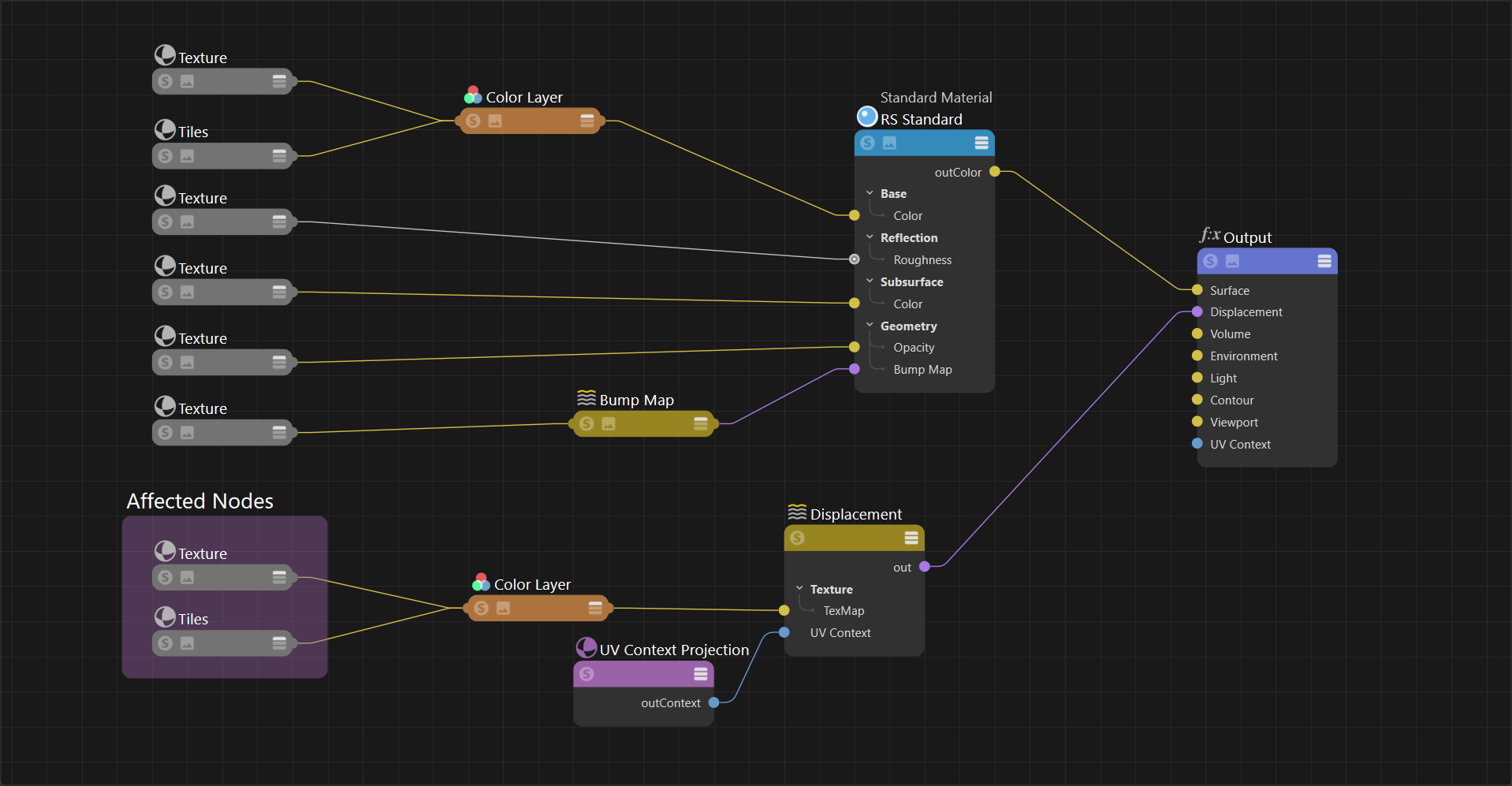

Alternatively, a UV Context node can be connected directly to a texture which overrides any downstream connections.

Use downstream connections whenever possible to keep a shader graph simple, using direct connections only where necessary. However, it's possible to use direct connections on every texture and get the same result, it just requires more manual setup.

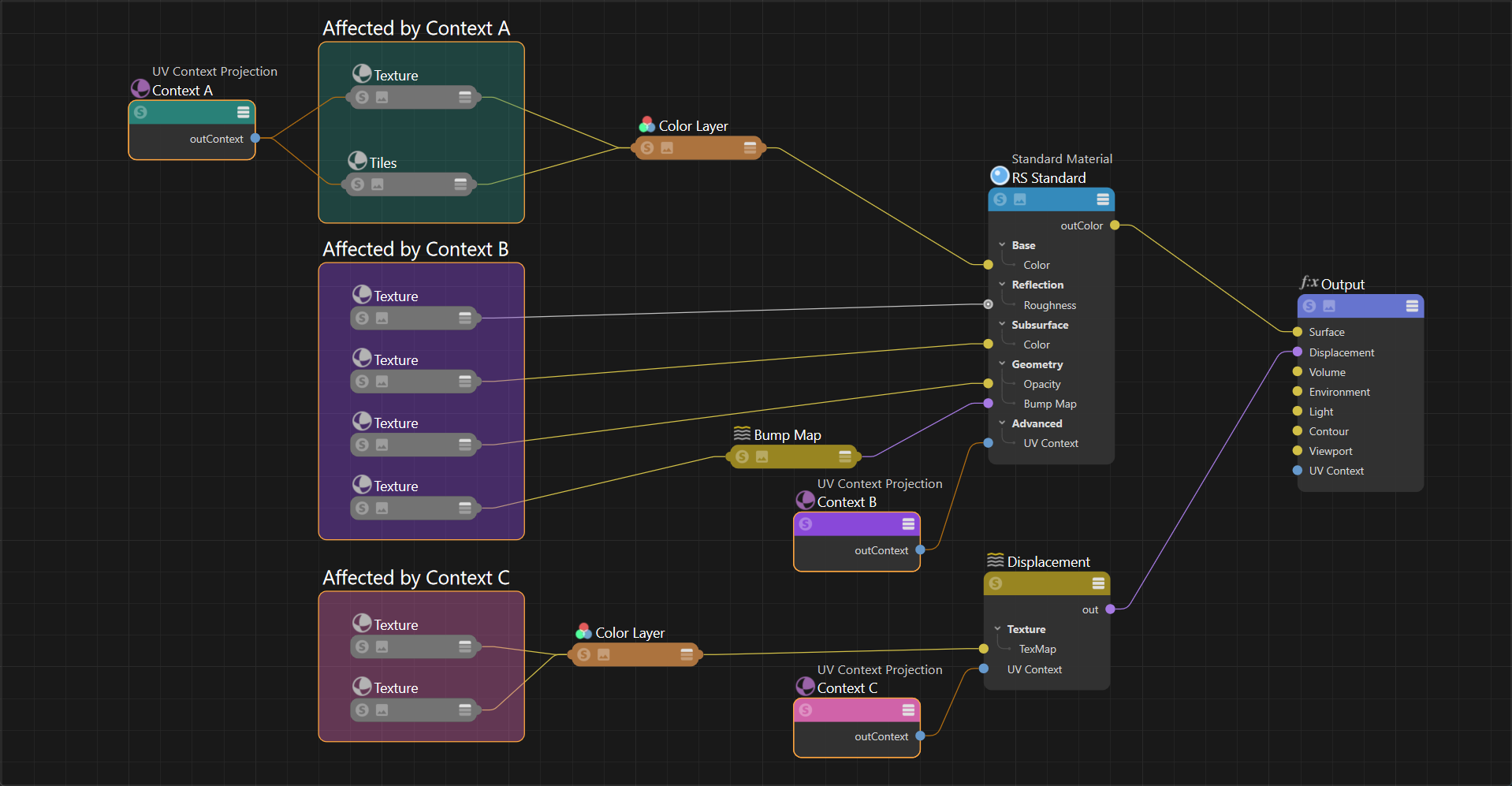

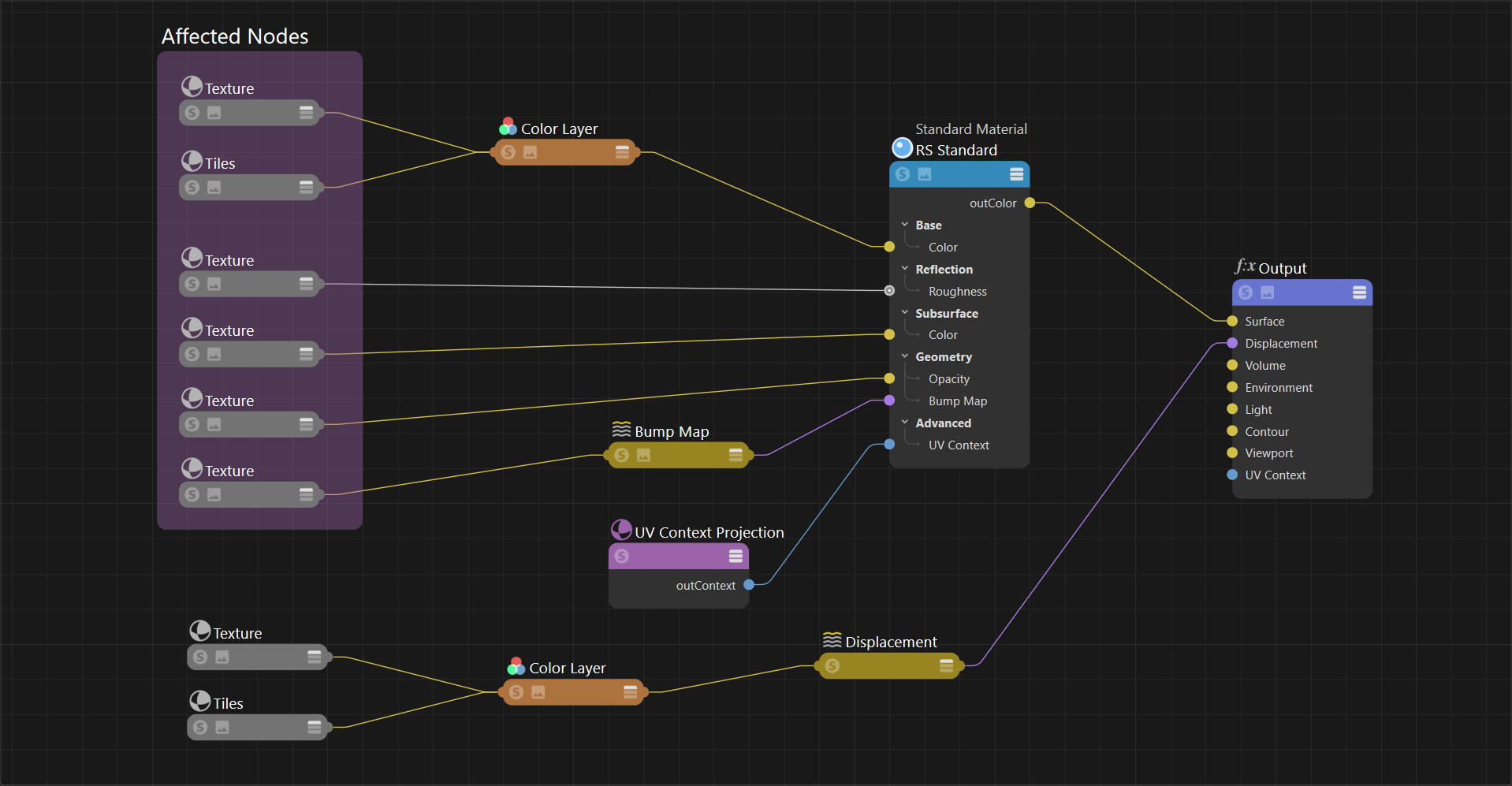

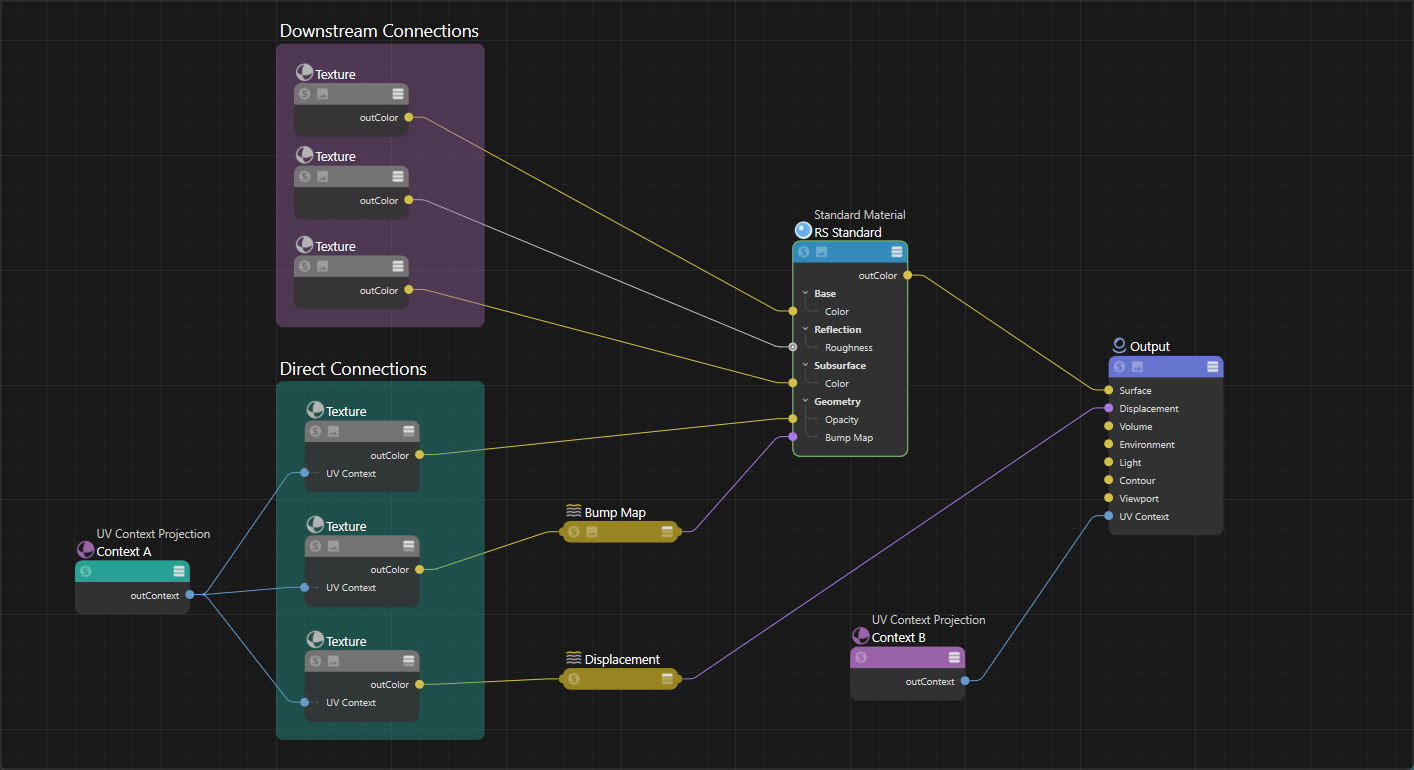

Direct and Downstream connections
UV Context Projection A connected to the Material Output node
UV Context Projection B connected directly to three textures, overriding the downstream connection


Textures that support a direct UV Context connection:

Nodes with a UV Context Port that enable downstream connections to all connected textures:


Connection examples

The simplest UV Context setup is one where it affects all textures in a material, including the displacement textures. This is accomplished by connecting one Context Projection node to the Material Output so it affects all upstream textures.

UV Context Projection connected to Material Output


Alternatively you could have a UV Context Projection node for only the Material textures or only the Displacement textures.

UV Context Projection connected to Material UV Context Projection connected to Displacement

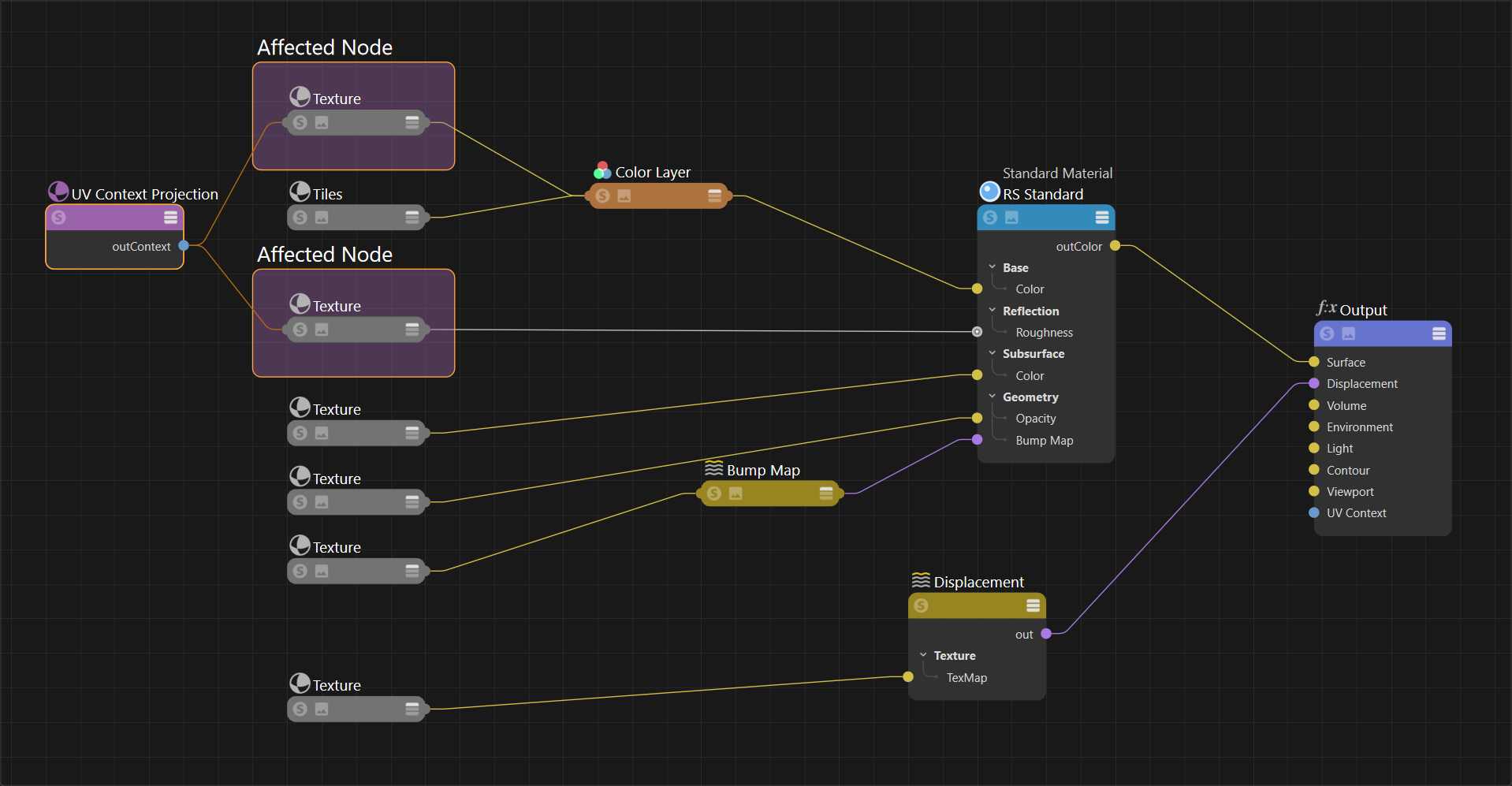

Direct connections are useful when you have some textures that need to stay in sync but are different from the rest of the material. That's as easy as connecting a UV Context Projection node directly to the texture's own UV Context Port - a directly connected texture always takes precedence over any downstream inheritance.

UV Context Projection connected directly to two textures Mixing direct and downstream connections

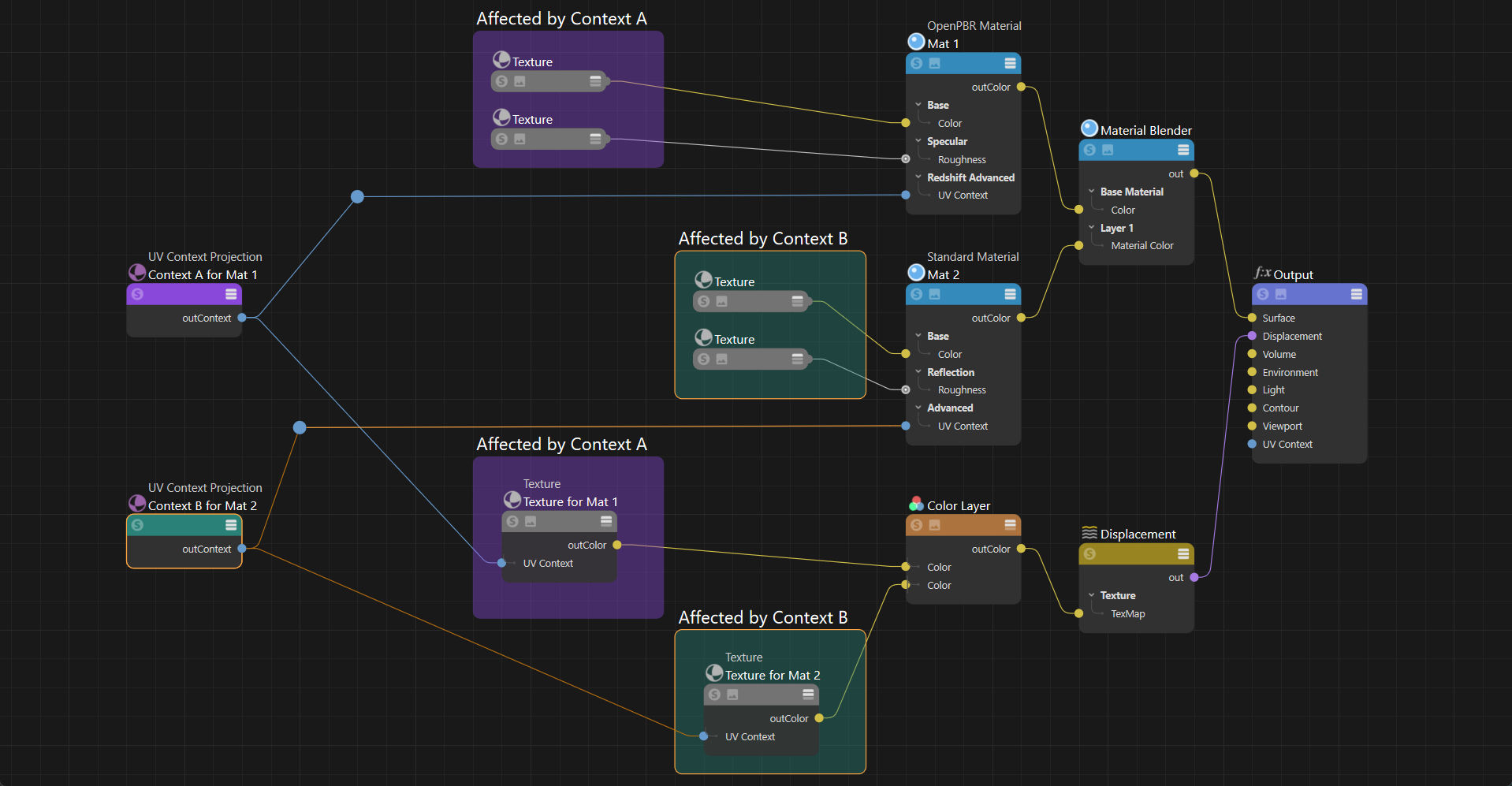

When blending multiple materials, consider using a single UV Context Projection node for each material. In the example below, Context A is used for Material 1 and Context B is used for Material 2. Since displacement textures don't connect to the material directly you can connect the Context nodes directly to the textures to keep them in sync with their material.

Using different UV Context nodes for different materials


Adding Randomization

The ports of a UV Context Projection node only allow a constant input, meaning nodes like a texture and jitter cannot drive its parameters. However the UV adjustment options on individual nodes still work in combination with a UV Context connection. This allows you to connect a jitter node to the Offset and Rotate of a texture node to add randomization to your material and still control overall texture placement using the UV Context Projection node.

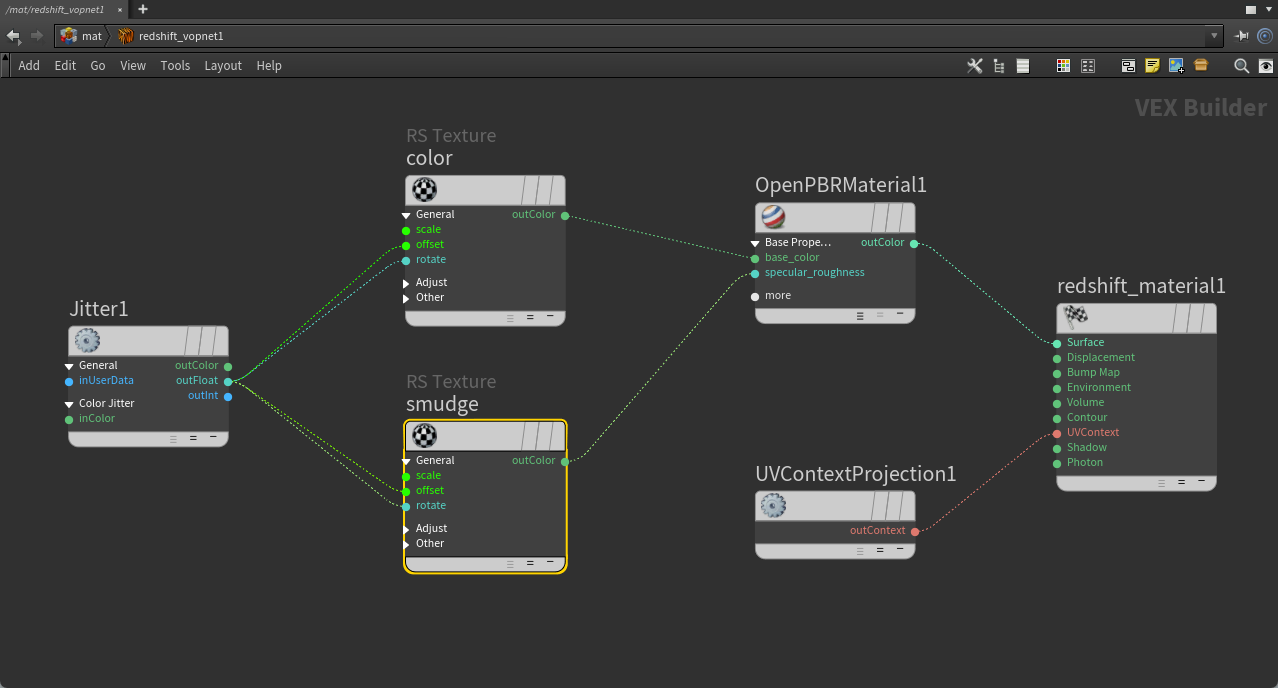

The example graph below uses a jitter node to add variety to the base color and roughness of the marble texture on each object and still use a UV Context Projection node to control those textures using a downstream connection.


Adding jitter randomization Controlling overall rotation with UV Context Projection



Placing a texture using an object

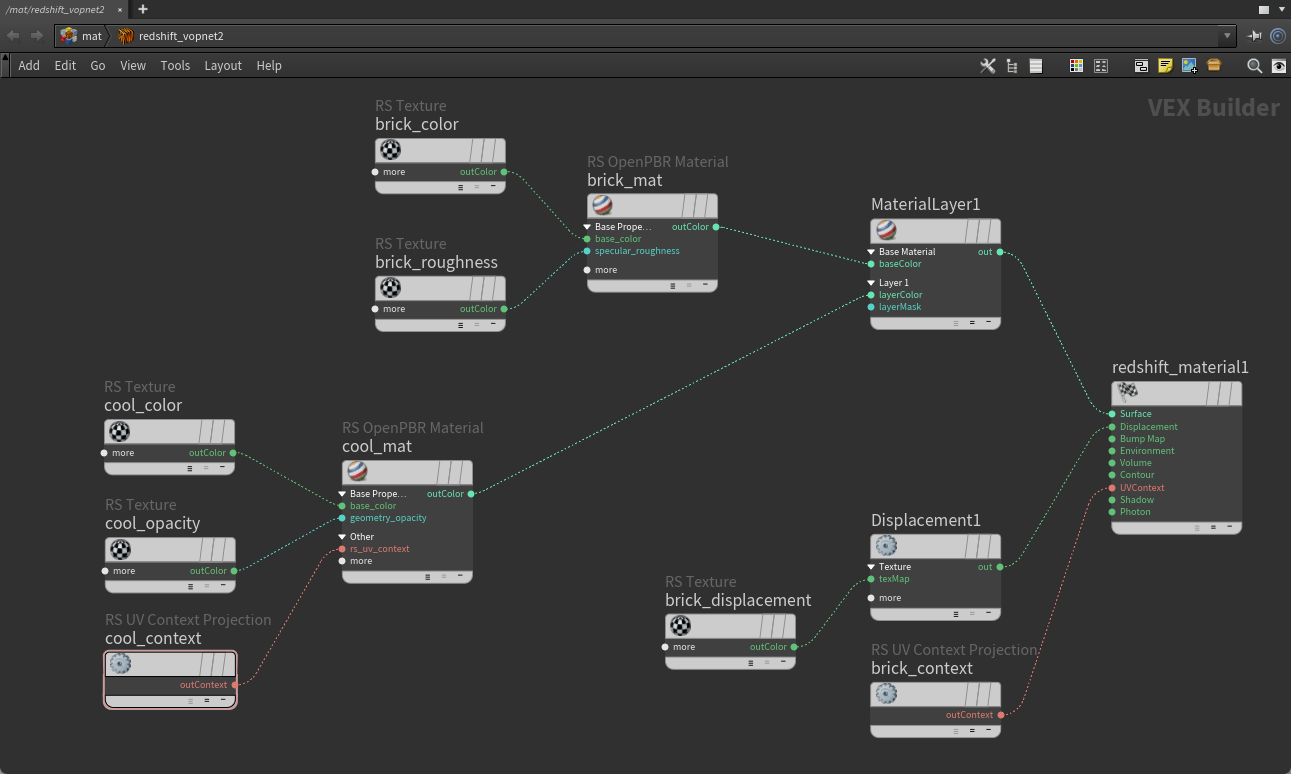

The UV Context Projection node can be used to place a texture in a scene with precision. In this example a graffiti material with the word "Cool" is placed on a brick wall material. There are two UV Context Projection nodes in use, one is used for the Brick material while the other is used for the cool material. The brick material requires displacement so it uses a UV Context node in Tri-planar mode connected downstream in the shader graph, this way the brick material and the brick's displacement textures inherit the UV mapping.

The cool material uses a UV Context node in the Flat projection mode using the "world" projection space. Then the Transform Space is set to "Object" and an object is selected using the "Object Picker." This allows the object to be referenced in world space which makes placing the projection of the graffiti texture very easy in the scene. The cool material's UV Context Projection node only needs to be connected to the cool material to override the downstream connection from the "brick context" node.


With everything in sync, the graffiti can be moved around the scene and it appears as if projected onto the brick surface at the same spot as the object driving the transform source. In the examples below, the floating gizmo object is used as the picked object to define its transform coordinates in world space.

Moving the graffiti Scaling the graffiti


Parameters

UV Source

Projection

Controls how the textures are projected onto the surface from the following options:

  • Passthrough

Passthrough is the default projection method, it passes along the UVs it receives from the DCC to Redshift.

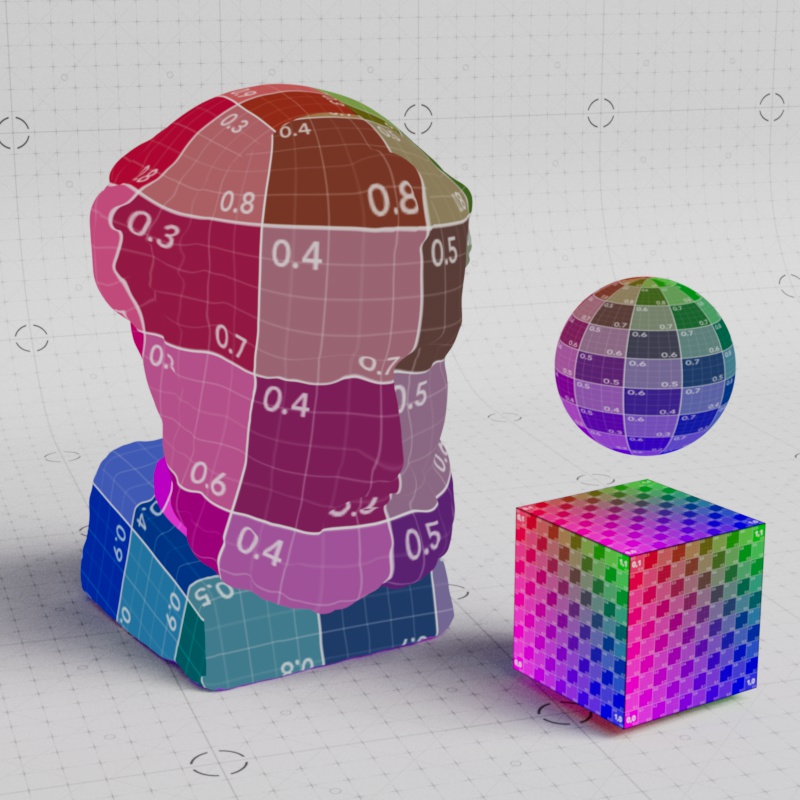

  • UV Channel

Uses an object's UV coordinates with the ability to specify a specific UV set using the "UV Channel" field below. By default, when the path is left blank, the result is the same as "Passthrough"

UV Channel
UV Texture Reference		 UV Channel
PBR Material



  • Tri-Planar

Uses a tri-planar projection for the textures. The textures are projected from the X, Y, and Z axes and blended across the object based on the angle of the surface. This is great for quickly applying a nice projection across a complex surface and the blending can be adjusted and distorted using specialized controls.

Doesn't work with stacked or blended materials.

Tri-Planar
UV Texture Reference		 Tri-Planar
PBR Material



  • Cubic

Similar to a Tri-planar projection but without the blending and distortion options.

Cubic
UV Texture Reference		 Cubic
PBR Material

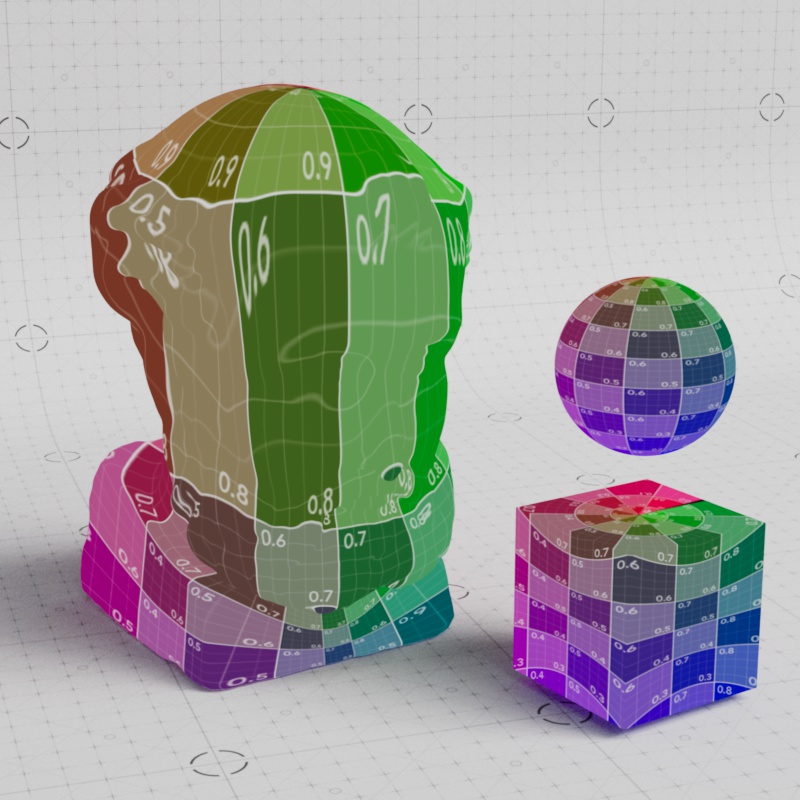

  • Spherical

Textures are projected onto the object using a spherical shape.

Spherical
UV Texture Reference		 Spherical
PBR Material



  • Cylindrical

Textures are projected onto the object using a cylindrical shape.

Cylindrical
UV Texture Reference		 Cylindrical
PBR Material



  • Flat

Textures are projected onto the object using the shape of a plane, making it great for flat objects and decals. However, this results in stretching on parts of the surface that are not perpendicular with the projection plane.

Flat
UV Texture Reference		 Flat
PBR Material



  • Spatial

Similar to Flat projection, but now the textures are not simply projected straight, but at an angle (to the left and upwards for frontal views).

Spatial
UV Texture Reference		 Spatial
PBR Material



  • Shrinkwrap

A unique style of projection that pins the textures at the top of the sphere (north pole) and the rest is pulled down over the sphere and pinches at the bottom (south pole). The advantage with shrinkwrap is that, compared to the spherical projection, there is only a seam on the bottom rather than the top and bottom.

Shrinkwrap
UV Texture Reference		 Shrinkwrap
PBR Material



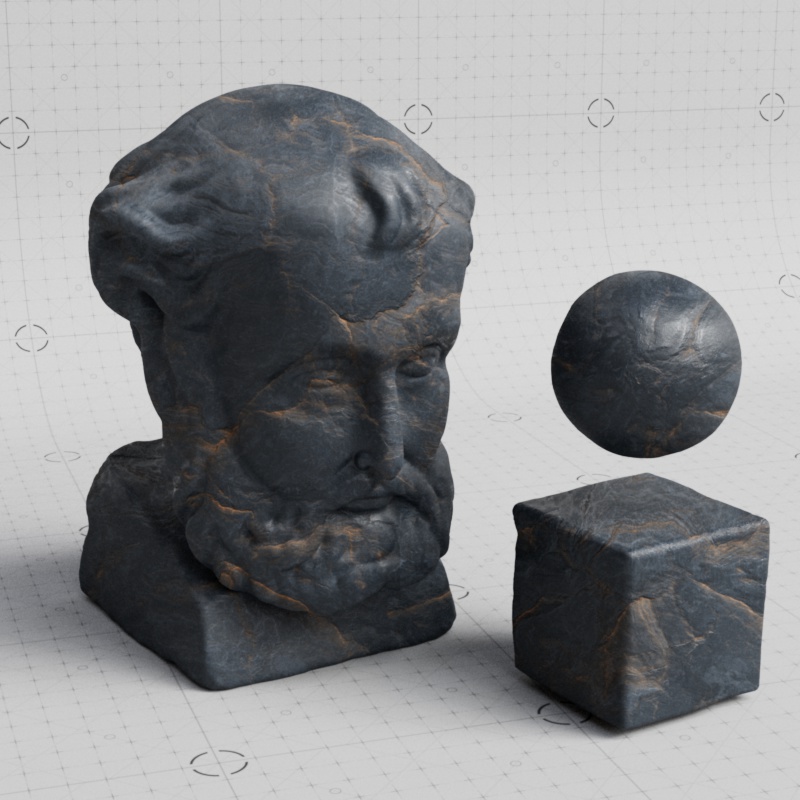

  • Camera

Maps textures onto an object based on a cameras perspective.

When using Camera projection, you must define the projection camera by selecting one in the "Object Picker" field. This is found in the Coordinates section of the UV Context Projection node. You can select the render camera or any other camera in the scene.

Camera
UV Texture Reference		 Camera
PBR Material
UV Channel

Only available when using "UV Channel" projection.

Enter the name of a specific UV channel to control how the texture is applied. By default, when left blank, Redshift uses the default UV data provided by the DCC.



Projection Space

Sets the projection space from the following options:

  • World: Uses the world-space coordinates. If the object moves or deforms the textures will swim.
  • Object: Uses the object's coordinate space. If the object moves, the textures will not swim. If the object deforms the textures will swim.
  • Reference Object: (Default) Uses a reference object's coordinate space. With an appropriate reference object, if the object moves or deforms the textures will not swim. Redshift tries to automatically find the correct reference object.
    • This option also projects the textures before displacement, this ensures that the base color and other textures line up with the displacement results.

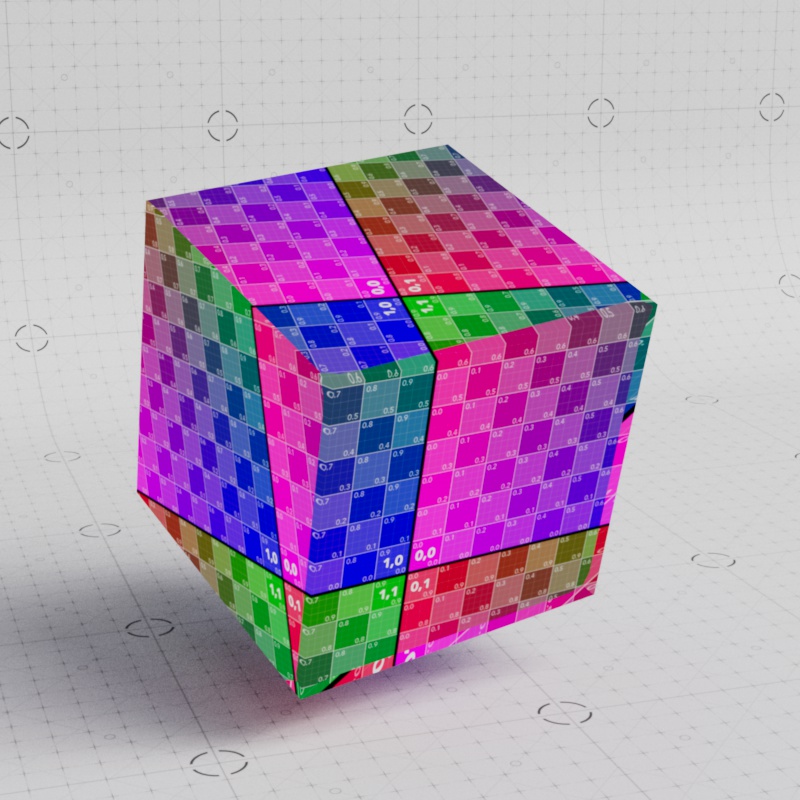

The examples below show how a rotated cube appears with the different projection spaces. The object space options look the same and stick to the object, while the world space option does not.

Projection Space: World
Undeformed object
 Object Reference Object

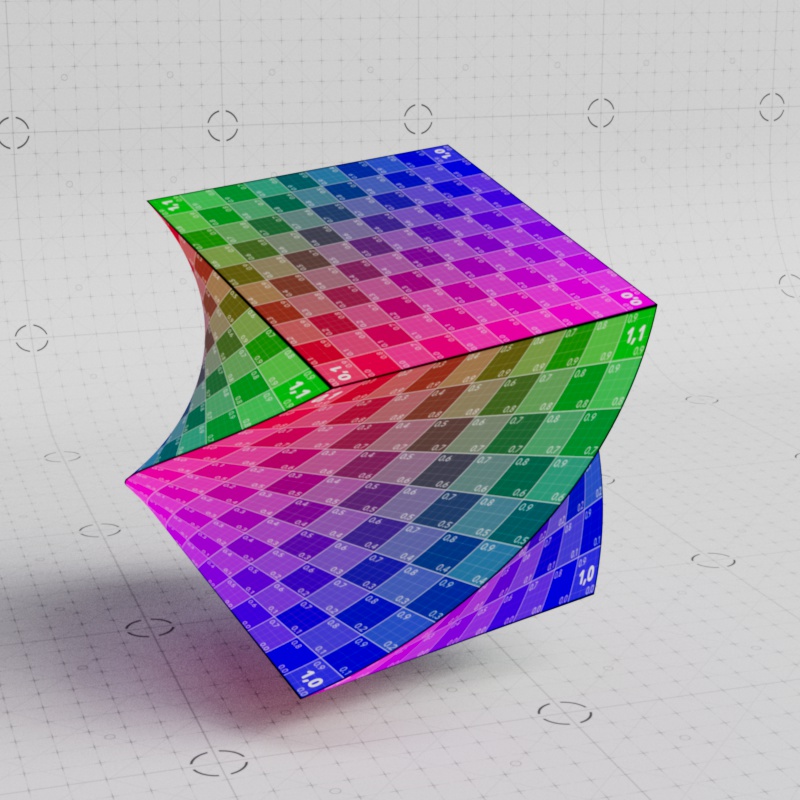

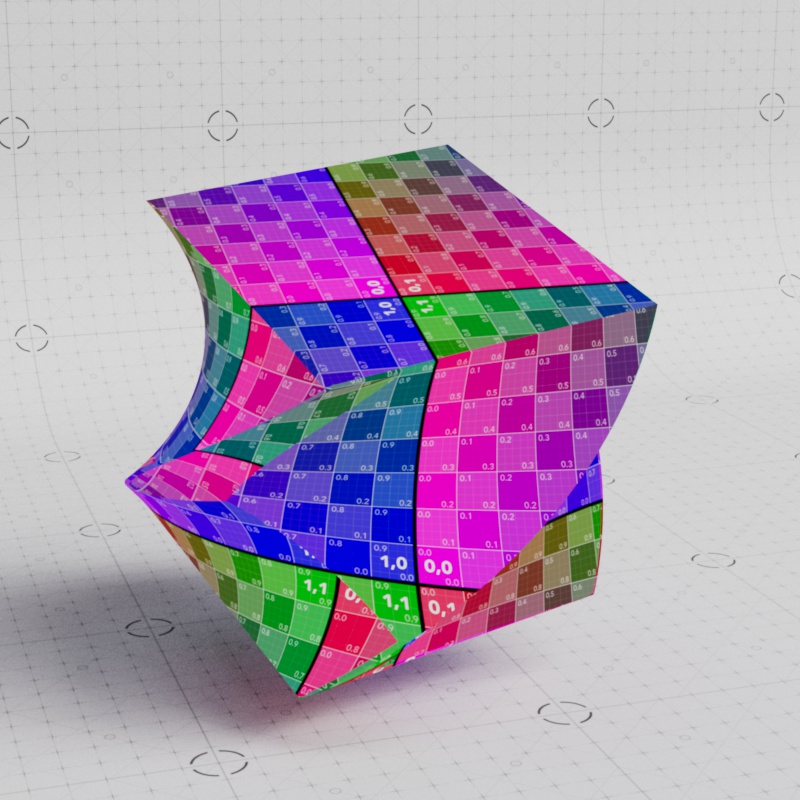

However, when the object is deformed with a twist Reference Object is the only option where the textures deform with it.

Projection Space: World
Deformed object
 Object Reference Object



Coordinates

Transform Source

Controls where the projection gets its transform coordinates:

  • Shader: The coordinates are controlled by the transform parameters below.
  • Object: The coordinates are referenced from an object in the scene. Allowing you to control the projection position, rotation, and scale by transforming the object specified by the Object Picker below.
    • The Projection Size is still controlled by the Size X, Y, Z parameters but the result is multiplied by the scale of the picked object. Keep the object at a scale of 1,1,1 to retain physically accurate sizing.



Object Picker

Only available when the Transform Source is set to Object.

Controls which object is referenced for the projection's transform coordinates.

A picked object's transform scale acts as a multiplier on the projection size, so make sure the scale of the object is 1,1,1 if you want the size to remain physically accurate.

When using the Camera projection mode, the camera you want the textures to be projected from should be set here.

In the examples below, a flat projection is used to project a "Cool" texture on the brick wall and the floating gizmo is used as the object picker to define its transform coordinates in World space.

Moving a projection with an object Rotating a projection with an object Scaling a projection with an object



Film Aspect

Only available when the Projection type is set to Camera

Sets the aspect ratio of width to height of the projected texture. The value used to represent the aspect ratio is the result of the width divided by the height. For example a 16:9 image is equivalent to 1.7778:1

Film Aspect: 0.5 to 1.5



Pixel Aspect

Only available when the Projection type is set to Camera

If the texture does not use a standard pixel ratio of 1:1, a different pixel aspect ratio can be set here.



Physical Size

Not available with World space projection because the size is already calculated irrespective of the object's scale.

When enabled, the scale of the object the material is applied to is not factored into the projection's size. This is helpful when accurate sizing of the texture is most important, allowing you to rescale the object without affecting the texture size. Note, the textures swim when the object is scaled in order to retain the physical size.

When disabled, the scale of the object the material is applied to is multiplied with the projection size. This keeps the texture from swimming but the texture is stretched when the object is scaled, meaning the physically accurate sizing is lost when at a scale other than 1,1,1.

Physical Size: Enabled Disabled



Uniform Size

When enabled, the projection is uniformly sized, with all three axes using the Size X value. When disabled, the size can be set per axis.

Uniform Size: Enabled Disabled



Size X

Sets the size of the projection along the X axis.

The cube in the examples below is 10 x 10 x 10 units.

Size X: 1 - 10



Size Y

Sets the size of the projection along the Y axis.

Size Y: 1 - 10



Size Z

Not available with Flat projection

Sets the size of the projection along the Z axis.

Size Z: 1 - 10



Position

Controls the position of the projection.

Animating the projection Position



Rotation

Controls the rotation of the projection.

Animating the projection Rotation




Tri-planar

Axis Rotate

Rotates the projected texture on each axis. This is distinct from the Coordinate rotation which rotates the entire projection.

Animating the Tri-planar Axis Rotate



Axis Blend

Controls how much the tri-planar projection can overlap and blend in areas that transition from one axis to another. A high value results in a soft transition while a value of 0 results in a hard border between axes.

The Axis Blend effect does not work with Displacement. You can use it with a material that has displacement but the displacement renders as if the Axis Blend is set to 0.

Axis Blend: 0 - 1
Blend Noise: 0		 0 - 1
5



Blend Curve

Axis Blend must be greater than 0 for this to have an effect.

Controls the power curve of the axis blend transition. Higher values tighten the blend while lower values soften it. A value of 1 results in a linear blend.

Blend Curve: 1 - 10



Blend Noise

Distorts the tri-planar axis border with a noise. Adding noise can provide a more organic texture mapping than the rigid tri-planar projection by default. Higher values add more distortion to the border while a value of 0 disables the effect.

Blend Noise: 0 - 10



Noise Scale

Controls the scale of the tri-planar border noise. Higher values result in a noise with larger shapes while lower values result in a noise with smaller shapes.

Noise Scale: 1 - 20




UV Transform

Tiling

Sets the UV Tiling Mode between the following options:

  • Square: Traditional square tiling. Offers standard repeat, flip, and clipping behavior for texture tiling.
  • Hex: Obscures texture repetition using a hexagonal shapes to add random variation across a large area. Great for large

Hex Tiling limitations

Does not affect procedural textures like Maxon Noise. These can be used and layered with Hex Tiling, but procedural textures will not take part in any of the hex randomization.

Does not work with Texture Displacement's "Smart Bake" feature. The advantage of randomizing and eliminating texture repetition is unfortunately not compatible with the most efficient form of tiling. However, Auto Bump can be used to fill in some of the detail for a small sacrifice in quality.

Hex Tiling can be used with normal maps but using the random rotate option will result in incorrect lighting. Depending on the texture and scene, small rotations may not be noticeable but significant rotation will result in reversed lighting and is likely to look strange.

Tiling: Square
 Hex
Tiling: Square Hex



Uniform Tiles

When enabled, the texture is uniformly tiled using the Tiles U value, making it easy to adjust basic tiling patterns. When disabled, the tiling can be set per axis.

Uniform Tiles: Enabled Disabled



Tiles U

Controls how many times the texture is tiled in the U axis (horizontal).

Tiling via the UV Context Projection allows for much more efficient baking when used with Texture Displacement's "Smart Bake" feature. For more information, please see the Tessellation and Displacement page.

Tiles U: 0 - 3
Uniform Tiles: Disabled



Tiles V

Controls how many times the texture is tiled in the V axis (vertical).

Tiles V: 0 - 3
Uniform Tiles: Disabled



Offset

Moves the texture.

Animating the offset Animating the offset with a PBR material



Rotate

Rotates the texture. Note, the Pivot affects the center point of that rotation.

Animating the UV Transform Rotate



Pivot

Moves the texture's pivot point which affects how a texture is rotated. Note, changing the number of tiles affects the visual center point of the pivot. By default the pivot is centered in the middle of a single tile at 0.5, 0.5. If the texture is tiled twice and you still wanted the pivot point visually centered then you'd want to set it to 1,1, placing it at the center of the four tiles. A value of 0,0 places the pivot point at the bottom left of the UV space.

In the first example the pivot point is centered, note how the pivot is half of the number of tiles in order to fall in the center.

Pivot: 0.5, 0.5
Tiles: 1 x 1		 1, 1
2 x 2



Here the first example has the pivot point anchored in the bottom left in UV space with a value of 0, 0. While the second value has it anchored in the upper right, with a value of 1, 1.

Pivot: 0, 0
Tiles: 1 x 1		 1, 1
1 x 1



Wrap U

Square Tiling only

Controls how the texture is tiled along the U axis (horizontal) with the following options:

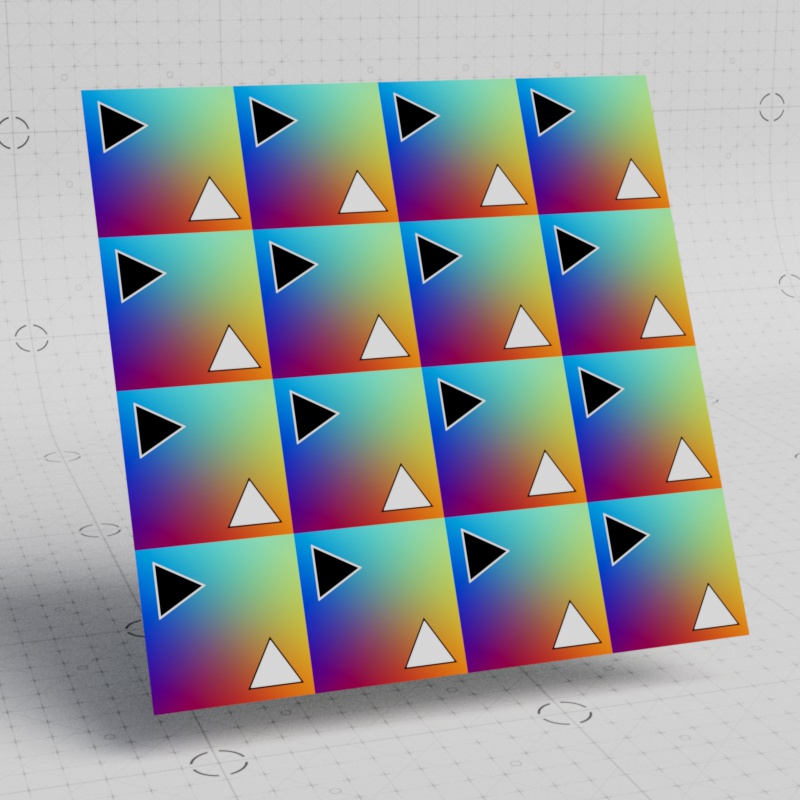

  • Repeat: The texture is repeated. (default)
  • Mirror: The texture is mirrored every other tile. Mirror is not compatible with Texture Displacement's "Smart Bake" feature.

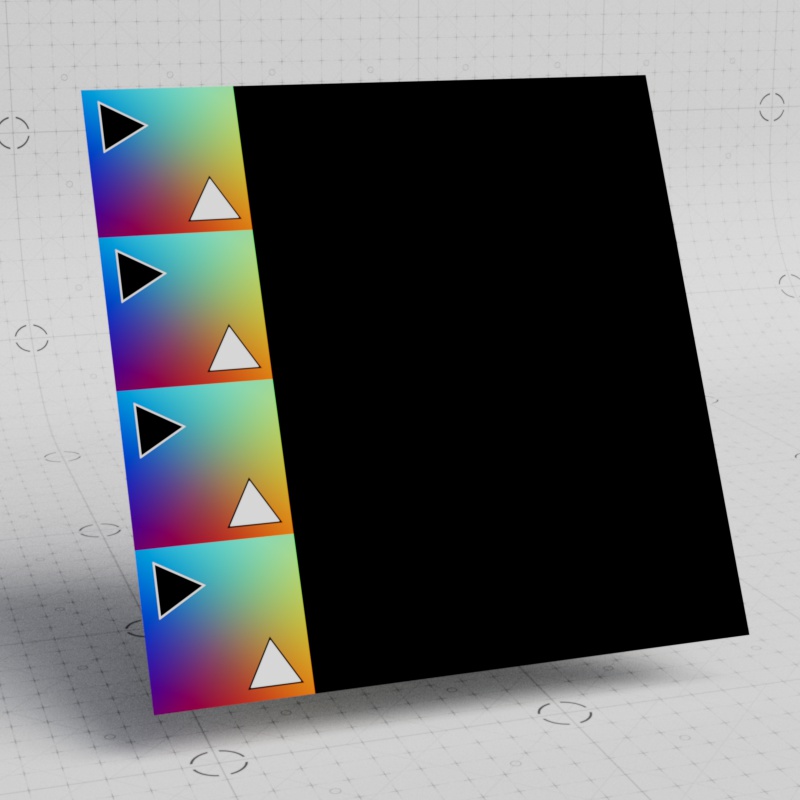

  • Clip: The texture is displayed once and if the texture moves out of the 0-1 range the Default/Invalid Color of the texture is rendered.
Wrap U: Repeat Mirror Clip



Wrap V

Square Tiling only

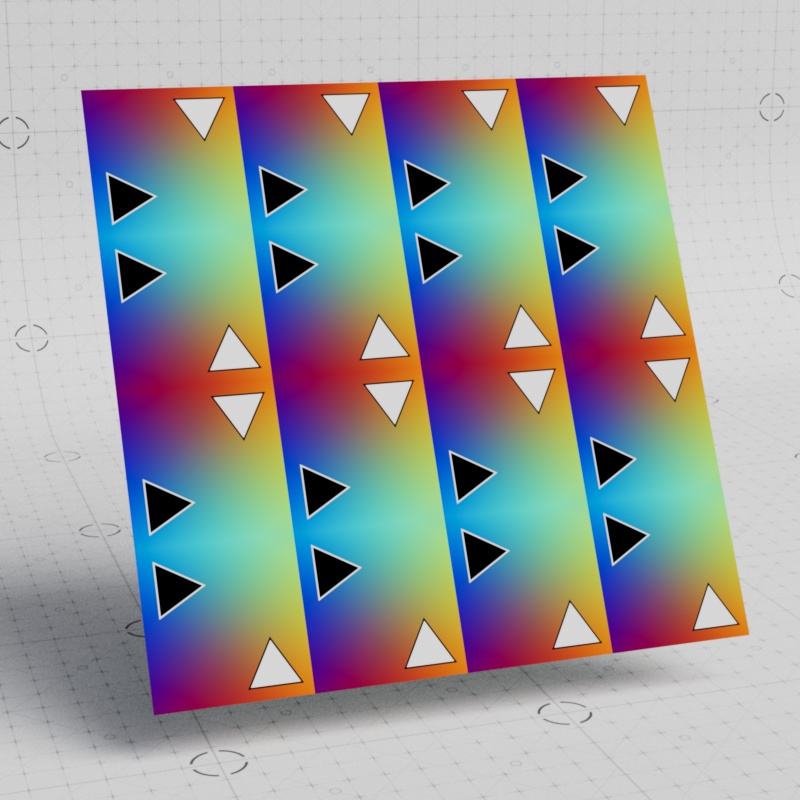

Controls how the texture is tiled along the V axis (vertical) with the following options:

  • Repeat: The texture is repeated. (default)
  • Mirror: The texture is mirrored every other tile. Mirror is not compatible with Texture Displacement's "Smart Bake" feature.

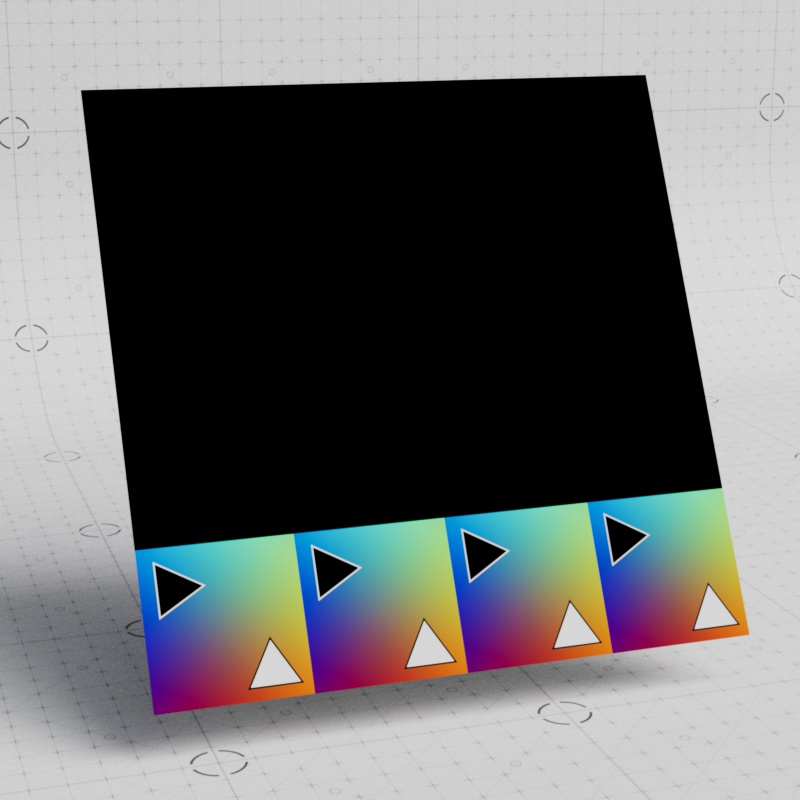

  • Clip: The texture is displayed once and if the texture moves out of the 0-1 range the Default/Invalid Color of the texture is rendered.
Wrap V: Repeat Mirror Clip



Flip U

Square Tiling only

When enabled, the texture is flipped along the U axis (horizontal).

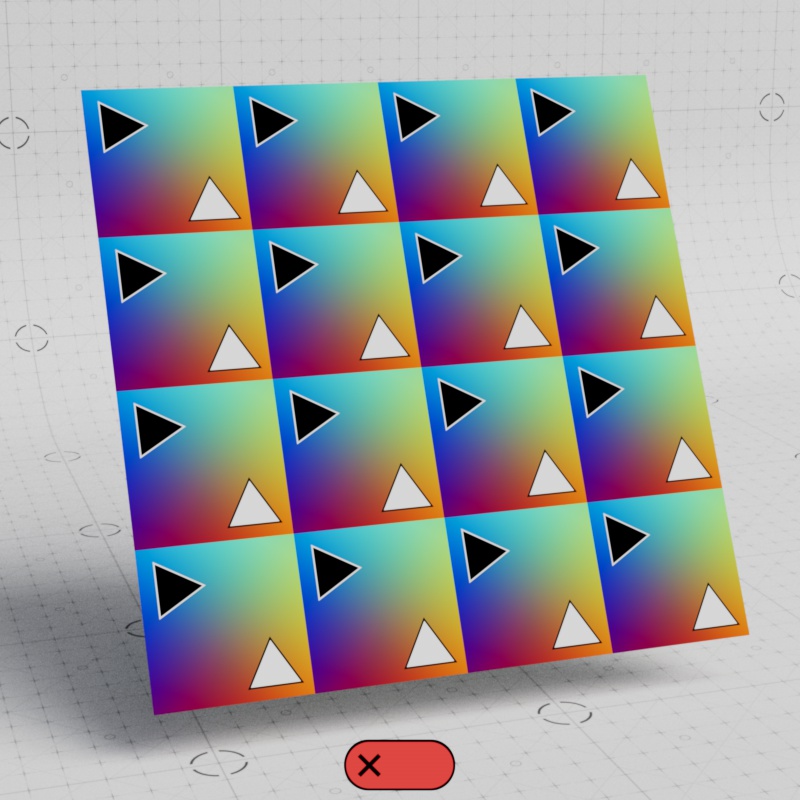

Flip U: Disabled Enabled



Flip V

Square Tiling only

When enabled, the texture is flipped along the V axis (vertical).

Flip V: Disabled Enabled



Tile Blend

Hex Tiling only

Controls how much blending occurs between hex tiles. Higher values result in more blending.

Hex Tile Blend: 0 - 1




Blend Curve

Hex Tiling only

Controls the power curve of the hex tile blend. Higher values tighten the blend while lower values soften it. A value of 0.5 results in a linear blend.

Hex Tile Blend Curve: 0 - 1




Blend Noise

Hex Tiling only

Distorts the hex tile borders with a noise. Adding noise helps break up repetition that can be revealed in the hex tile pattern itself. Higher values add more distortion to the border while a value of 0 disables the effect.

Hex Tile Blend Noise: 0 - 1




Noise Scale

Hex Tiling only

Controls the scale of the hex tile border noise. Higher values result in a noise with larger shapes while lower values result in a noise with smaller shapes.

A large noise tends to work well with textures with large broad features while a smaller noise might work better with a texture that has lots of fine detail.

Hex Tile Noise Scale: 0.05 - 0.5




Random Seed

Hex Tiling only

Changes the seed used to drive hex tiling randomization.

Changing the Hex Tile Random Seed




Random Offset

Hex Tiling only

Controls how far the texture can be randomly offset in the X and Y direction from its starting position inside each hex tile.

Higher values move the texture more inside each hex tile, the hex tile repeats automatically so it can never be pushed outside of range. A value of 0 results in no offset where all textures are centered within each hex tile.

Random Offset: 0 - 1




Random Rotate

Hex Tiling only

Controls how far the texture can be randomly rotated inside each hex tile in degrees.

Note, the rotation value works both clockwise and counter clockwise. Meaning a value of 20 gives it a maximum rotation range of 40°.

Random Rotation can be used with normal maps but it will result in incorrect lighting. Depending on the texture and scene, small rotations may not be noticeable but significant rotation will result in reversed lighting and is likely to look strange.

Random Rotate: 0 - 45
Rotate Mode: Range




Rotate Mode

Hex Tiling only

Controls how the Random Rotate parameter works from the following options:

  • Range: (default) The textures inside each hex tile are rotated smoothly from 0 up to the maximum rotation range.
    • For example, a Random Rotate of 5 results in random float values from -5 to +5 and all the values in between.
  • Stepped: The textures inside each hex tile are rotated in increments of the Random Rotation.
    • For example, a Random Rotate of 90 results in 0, 90, 180, 270, 360 etc.

Range rotation works great for organic textures that require a truly random look while stepped rotation works well for textures that have an inherent rigidity and orientation.

Rotate Mode: Range
Random Rotate: 45
 Stepped
45



Scale

Hex Tiling only

Controls the uniform scale of the textures.

Higher values scale the texture up while lower values scale the texture down. A scale of 1 (default) results in the same scale as a texture used in "Square" tiling mode.

Scale: 0.1 - 2
 0.5 - 2



Random Scale

Hex Tiling only

Controls the random scale of the textures in each hex tile.

Note, this parameter scales textures both up and down. So a value of 1 results in textures that are both smaller and larger while a value of 0 results in no scale change.

Random Scale: 0 - 1
 0 - 1



Random Flip

Hex Tiling only

Randomly flips the texture in U, V, U+V, directions when enabled for increased variation.

Random Flip: Disabled (default)
 Enabled



© MAXON Computer - Impressum
