Form
Kaleidospace group

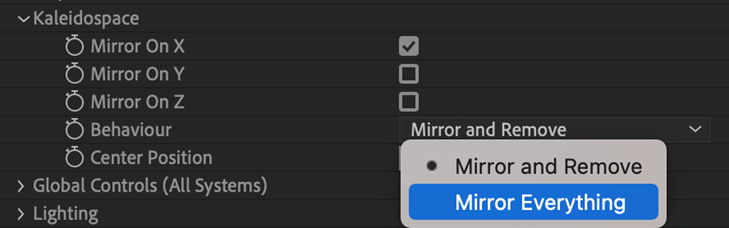

The Kaleidospace group adds 3D symmetry to the particle grid.
Mirror On X/Y/Z
These checkboxes define the symmetry axes. The following images show these parameters in play.
From left to right: all mirroring off, Mirror X, Mirror Y, Mirror Z with position z 500 pixels back, and Mirror X and Y.
Behavior
Two options in a pull-down menu define the symmetry operation.
- Mirror and Remove: Works like a regular kaleidoscope, where half of the image is mirrored and the other half is not visible (since it is replaced by the reflection).
- Mirror Everything: Particles are mirrored both ways so that nothing is discarded.
Behavior is set to Mirror and Remove (left) and Mirror Everything (right).
Center Position
Establish the symmetry center with x/y/z coordinates. Coordinates take effect when the corresponding Mirror value is checked (i.e., z position will adjust when you select Mirror on Z).
