Delete

What is it about?

This page describes the Delete node of the Scene Nodes system in Cinema 4D. It removes points, edges or polygons — optionally by selection — the basic subtractive step in procedural modeling chains.

You can use this Node to remove points, edges or polygons from a spline or polygon geometry. You can also use selections for this.

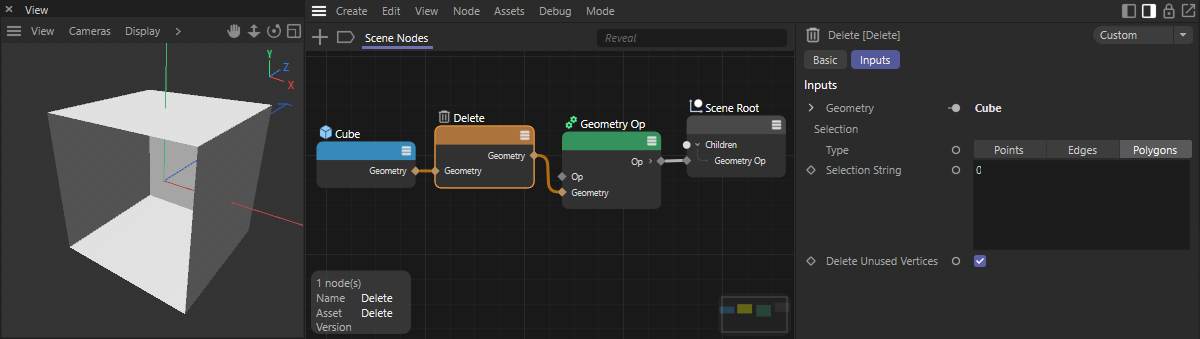

Points, edges and polygons can be easily removed from a geometry, e.g., by defining the index numbers on the Delete Node. Here, for example, the polygon with the number 0 was removed from a cube.
