Object Properties
Defines the object's radius and the cap's radius.
The overall height of the capsule including the caps.
The number of subdivisions of the capsule in its lengthwise direction (cylindrical part only).
Defines the number of subdivisions of the cap in a radial direction. The subdivision along the cap's circumference is given by Rotation Segments.
The number of subdivisions of the capsule around its circumference. The greater this value, the more rounded the cap appears.

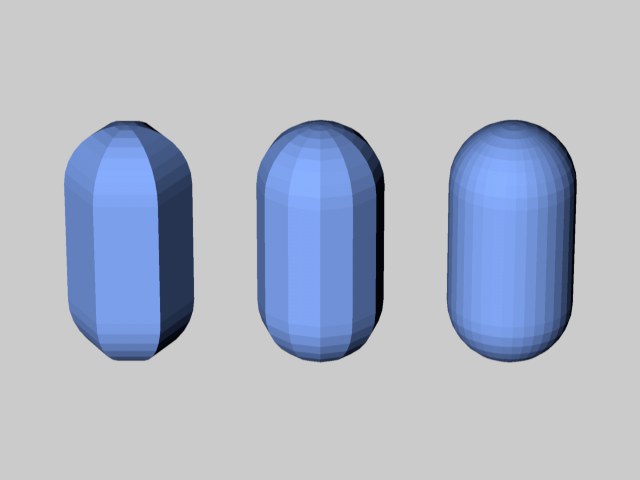

Capsules with different segment values.
These options define the direction in which the object will "point". Using these options it is easier - and faster - to rotate the object (without rotating the object coordinate system as well).
