Ring Radius[0..+∞m]

Ring Segments[3..1000]

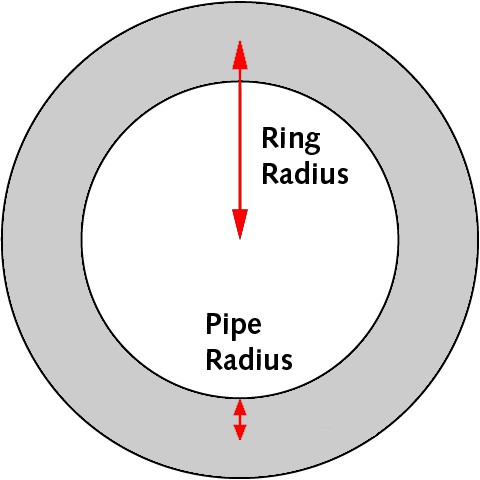

With these values you define the size and the subdivision of the ring. The ring is a notional circle running round the center of the pipe.

Pipe Radius[0..+∞m]

Pipe Segments[3..1000]

Specify the size and the subdivision level of the pipe. The pipe radius can be no larger than the ring radius.

Orientation

These options define the direction in which the object will "point". Using these options it is easier - and faster - to rotate the object (without rotating the object coordinate system as well).
